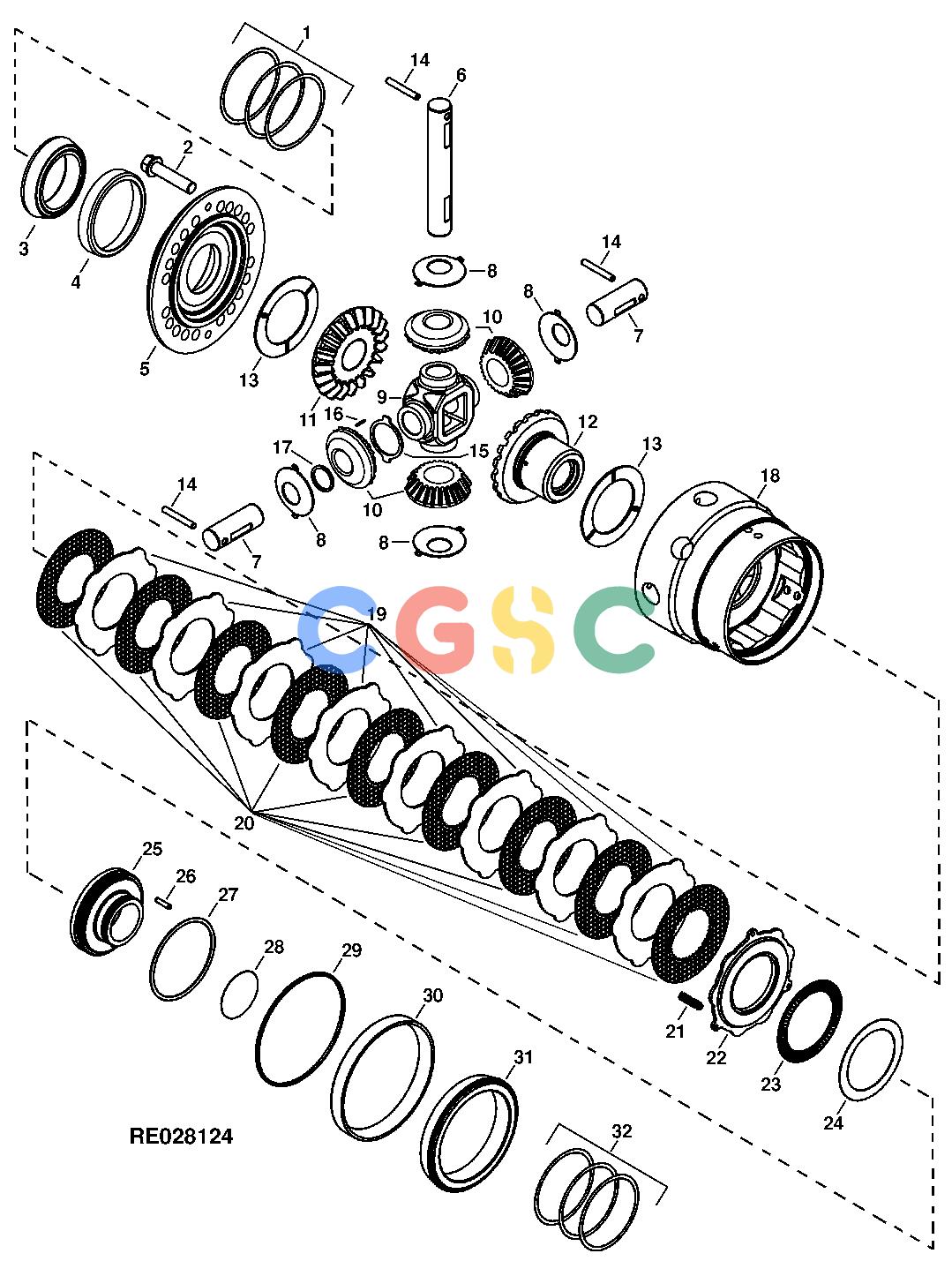

约翰迪尔零件查询RE160299 - AXLE RE68132 Four Pinion Hydraulic Actuated Diff, Front and RearEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
778 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R134717
|
[AR] |
Shim
|
|
| 1. |
R134718
|
[AR] |
Shim
|
|
| 1. |
R134719
|
[AR] |
Shim
|
|
| 2. |
R134183
|
[20] |
Cap Screw
|
|
| 3. |
JD10127
|
[1] |
Bearing Cone
|
|
| 4. |
JD8254
|
[1] |
Bearing Cup
|
|
| 5. |
R133803
|
[1] |
Cover
|
|
| 6. |
R132827
|
[1] |
Pinion Shaft
|
|
| 7. |
R132828
|
[2] |
Pinion Shaft
|
|
| 8. |
R59460
|
[4] |
Thrust Washer
|
|
| 9. |
R132836
|
[1] |
Hub
|
|
| 10. |
R134726
|
[4] |
Pinion
|
|
| 11. |
R133858
|
[1] |
Bevel Gear
|
|
| 12. |
R133859
|
[1] |
Bevel Gear
|
|
| 13. |
R133719
|
[2] |
Thrust Washer
|
|
| 14. |
R57254
|
[3] |
Needle Roller
|
|
| 15. |
R70113
|
[4] |
Thrust Washer
|
|
| 16. |
R70115
|
[104] |
Needle Roller
|
|
| 17. |
R70112
|
[4] |
Thrust Washer
|
|
| 18. |
R133798
|
[1] |
Housing
|
|
| 19. |
R134016
|
[8] |
Clutch Plate
|
|
| 20. |
RE69025
|
[9] |
Disk
|
|
| 21. |
R120236
|
[3] |
Spring
|
|
| 22. |
R134017
|
[1] |
Clutch Plate
|
|
| 23. |
RE68730
|
[1] |
Bearing
|
|
| 24. |
R133725
|
[1] |
Thrust Washer
|
|
| 25. |
R166218
|
[1] |
Piston
|
|
| 26. |
R109082
|
[1] |
Needle Roller
|
|
| 27. |
YZ120622
|
[1] |
O-Ring
|
|
| 28. |
YZ120623
|
[1] |
O-Ring
|
|
| 29. |
R133328
|
[1] |
Spacer
|
|
| 30. |
JD9148
|
[1] |
Bearing Cup
|
|
| 31. |
JD9093
|
[1] |
Bearing Cone
|
|
| 32. |
R134720
|
[AR] |
Shim
|
|
| 32. |
R134721
|
[AR] |
Shim
|
|
| 32. |
R134722
|
[AR] |
Shim
|
|
