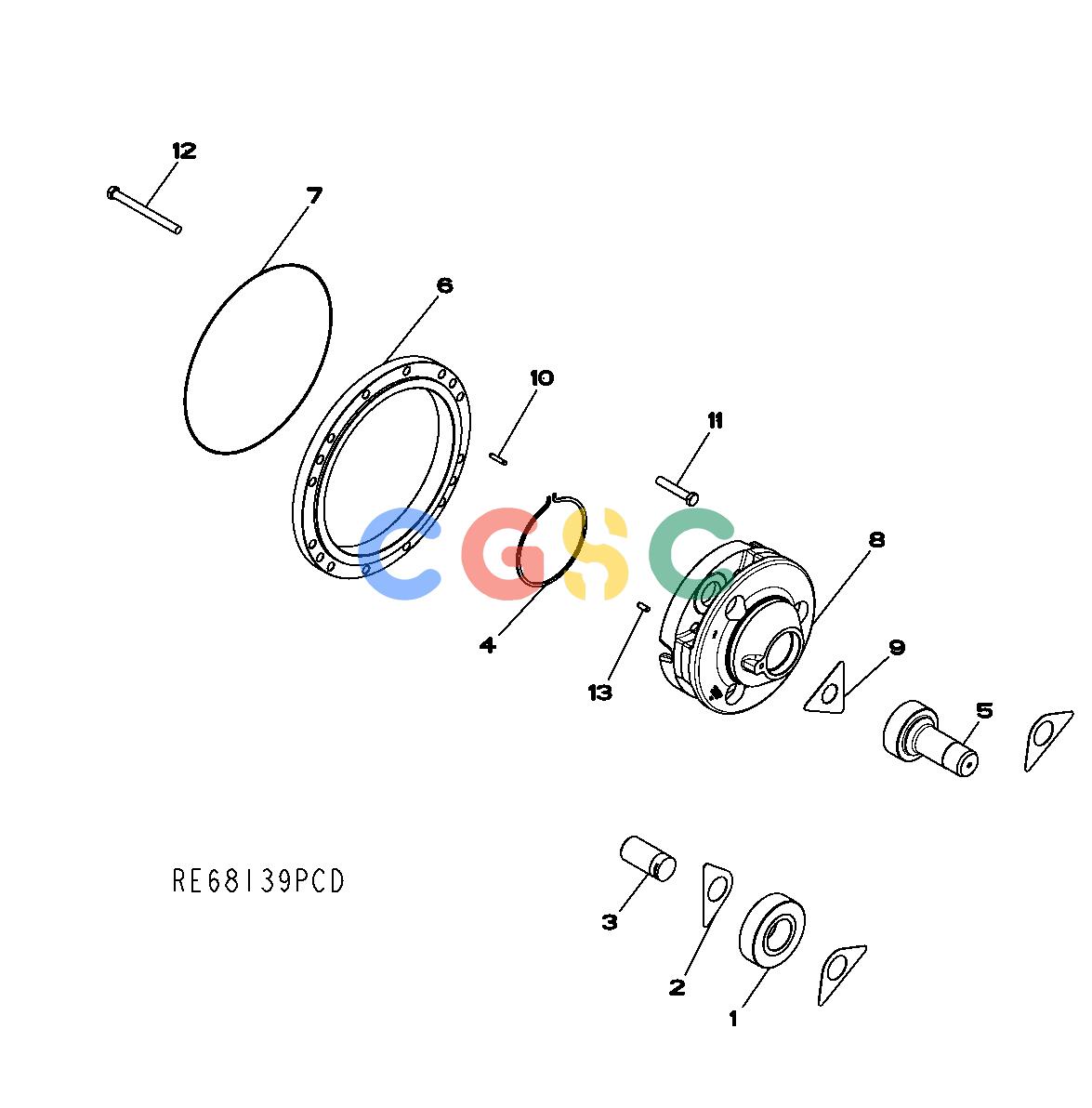

约翰迪尔零件查询RE160299 - AXLE RE68139 Front and Rear Final DriveEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
170 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R133367
|
[3] |
Planet Pinion
|
|
| 2. |
R112079
|
[6] |
Thrust Washer
|
|
| 3. |
R133370
|
[3] |
Pinion Shaft
|
|
| 4. |
R133373
|
[1] |
Snap Ring
|
|
| 5. |
R133378
|
[1] |
Pinion Shaft
|
|
| 6. |
R133379
|
[1] |
Gear
|
|
| 7. |
R135953
|
[1] |
O-Ring
|
|
| 8. |
R151626
|
[1] |
Planet Pinion Carrier
|
|
| 9. |
R26012
|
[1] |
Lock Plate
|
|
| 10. |
R63575
|
[72] |
Needle Roller
|
|
| 11. |
19M8485
|
[8] |
Cap Screw
|
|
| 12. |
19M8486
|
[8] |
Cap Screw
|
|
| 13. |
YZ120909
|
[2] |
Spring Pin
|
|
