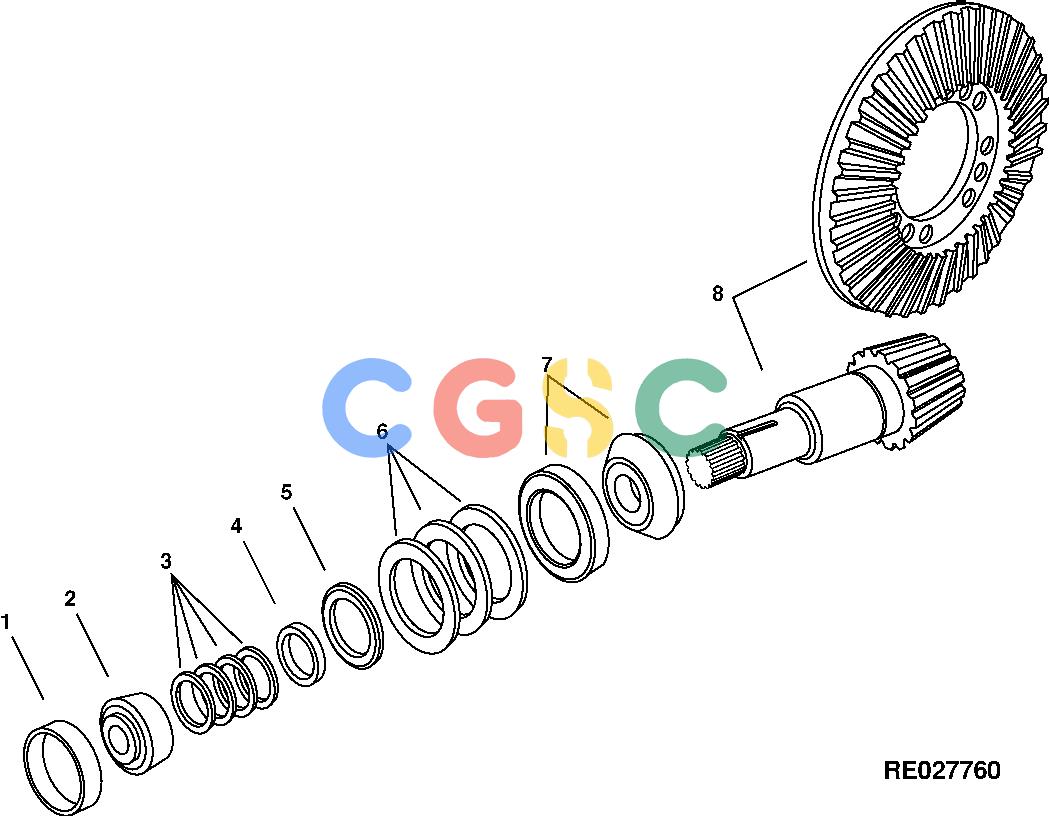

约翰迪尔零件查询RE160299 - AXLE RE68059 Rear Spiral Bevel Input Pinion and Ring Gear SetEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
356 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
JD8240
|
[1] |
Bearing Cup
|
|
| 2. |
JD8974
|
[1] |
Bearing Cone
|
|
| 3. |
R45197
|
[3] |
Shim
|
|
| 3. |
R45198
|
[3] |
Shim
|
|
| |
R45198
|
[3] |
|
|
| |
R45199
|
[3] |
Shim
|
|
| |
R45200
|
[3] |
Shim
|
|
| 4. |
R163333
|
[1] |
Spacer
|
|
| 5. |
R163180
|
[1] |
Shield
|
|
| 6. |
R163181
|
[3] |
Shim
|
|
| |
R163182
|
[3] |
Shim
|
|
| |
R163183
|
[3] |
Shim
|
|
| 7. |
R163172
|
[1] |
Bearing Cone
|
|
| |
R163171
|
[1] |
Bearing Cup
|
|
| 7. |
R163171
|
[1] |
|
|
| 8. |
RE163175
|
[1] |
Ring Gear And Pinion
|
|
