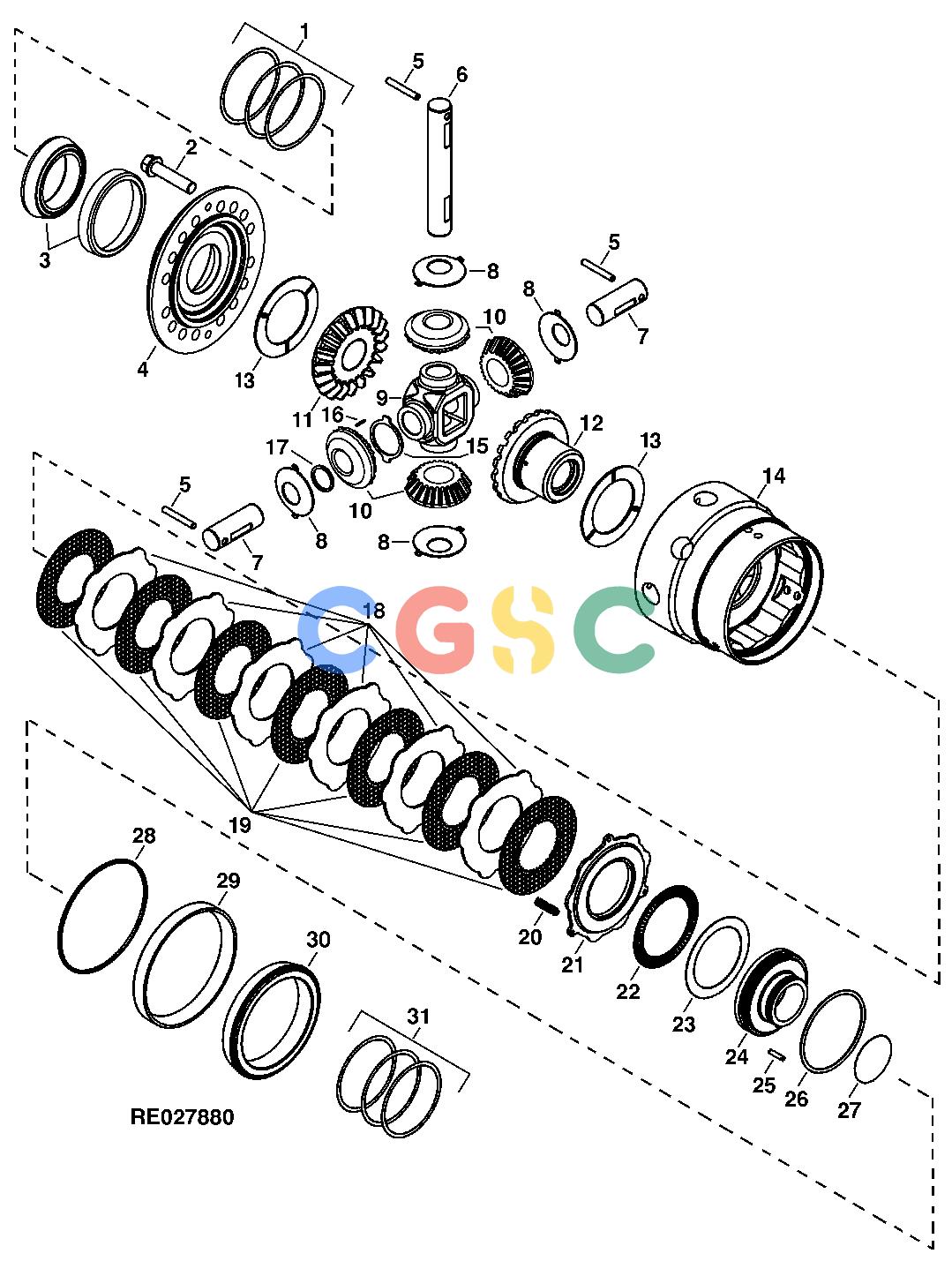

约翰迪尔零件查询RE160299 - AXLE RE68084 Four Pinion Hyd Actuated Differential, RearEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 977 次

Pos.	Part No	Qty	Parts name	Comments
1.	R133113	[3]	Shim	.080 MM (.003")
1.	R133114	[AR]	Shim	.130 MM (.005")
1.	R133115	[AR]	Shim	.250 MM (.010")
2.	R134183	[16]	Cap Screw
3.	RE61191	[1]	Tapered Roller Bearing
4.	R132683	[1]	Cover
5.	R57254	[3]	Needle Roller
6.	R132827	[1]	Pinion Shaft
7.	R132828	[2]	Pinion Shaft
8.	R59460	[4]	Thrust Washer
9.	R132836	[1]	Hub
10.	R134726	[4]	Pinion
11.	R132825	[1]	Bevel Gear
12.	R132826	[1]	Bevel Gear
13.	R99466	[2]	Thrust Washer
14.	R132737	[1]	Housing
15.	R70113	[4]	Thrust Washer
16.	R70115	[104]	Needle Roller
17.	R70112	[4]	Thrust Washer
18.	R132575	[6]	Clutch Plate
19.	RE67715	[7]	Clutch Plate
20.	R120236	[3]	Spring
21.	R132576	[1]	Clutch Plate
22.	RE68725	[1]	Bearing
23.	R132520	[1]	Thrust Washer
24.	R132679	[1]	Piston	(SUB FOR RE166220)
25.	R109082	[1]	Needle Roller	(SUB FOR RE166220)
26.	YZ120622	[1]	O-Ring	(SUB FOR R134270)
27.	YZ120623	[1]	O-Ring	(SUB FOR R134269)
28.	R132832	[1]	Spacer
29.	JD9115	[1]	Bearing Cup
30.	JD9050	[1]	Bearing Cone
31.	R133110	[AR]	Shim	.076 MM (.003")
31.	R133111	[AR]	Shim	.127 MM (.005")
31.	R133112	[AR]	Shim	.254 MM (.010")
