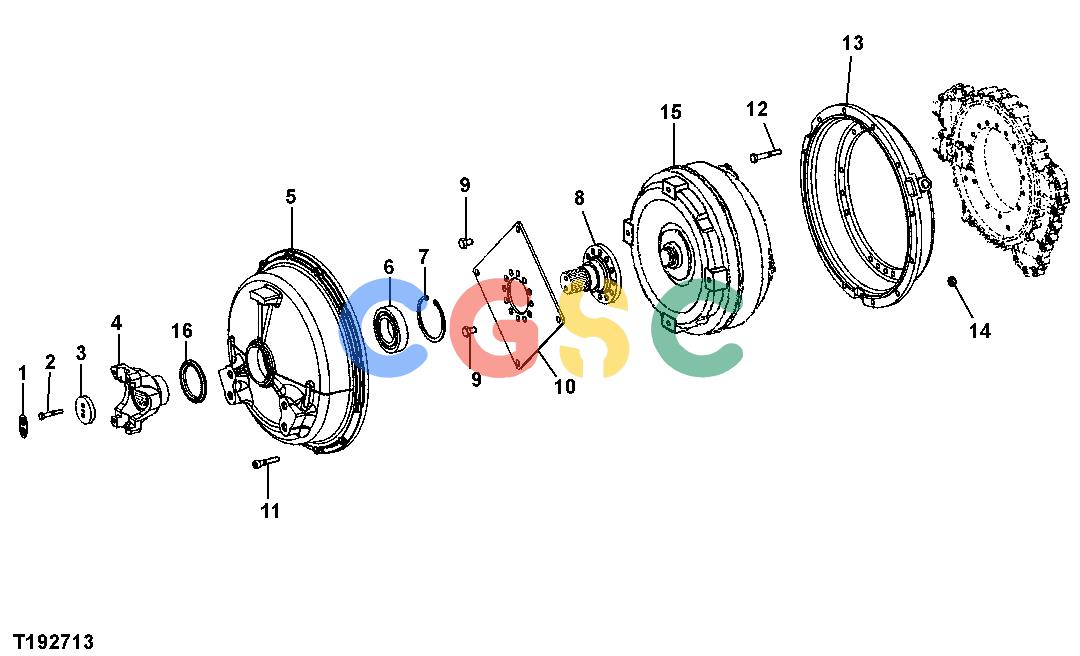

约翰迪尔零件查询RE160299 - AXLE Torque ConverterEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
651 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T116613
|
[1] |
Washer
|
|
| 2. |
19M8397
|
[2] |
Cap Screw
|
|
| 3. |
T116516
|
[1] |
Spacer
|
|
| 4. |
T171730
|
[1] |
Universal Joint Yoke
|
|
| 5. |
T195240
|
[1] |
Housing
|
|
| 6. |
T195242
|
[1] |
Ball Bearing
|
|
| 7. |
T195243
|
[1] |
Snap Ring
|
|
| 8. |
T195241
|
[1] |
Universal Driveshaft
|
|
| 9. |
T174407
|
[16] |
Cap Screw
|
|
| 10. |
T174386
|
[1] |
Diaphragm
|
|
| 11. |
19M7179
|
[12] |
Cap Screw
|
|
| 12. |
19M7742
|
[18] |
Cap Screw
|
|
| 13. |
T179276
|
[1] |
Housing
|
|
| 14. |
14M7274
|
[12] |
Nut
|
|
| 15. |
AT225657
|
[1] |
Torque Converter
|
|
| 15. |
AT225611
|
[1] |
Torque Converter Reman
|
|
| 16. |
T196792
|
[1] |
Screen
|
|
