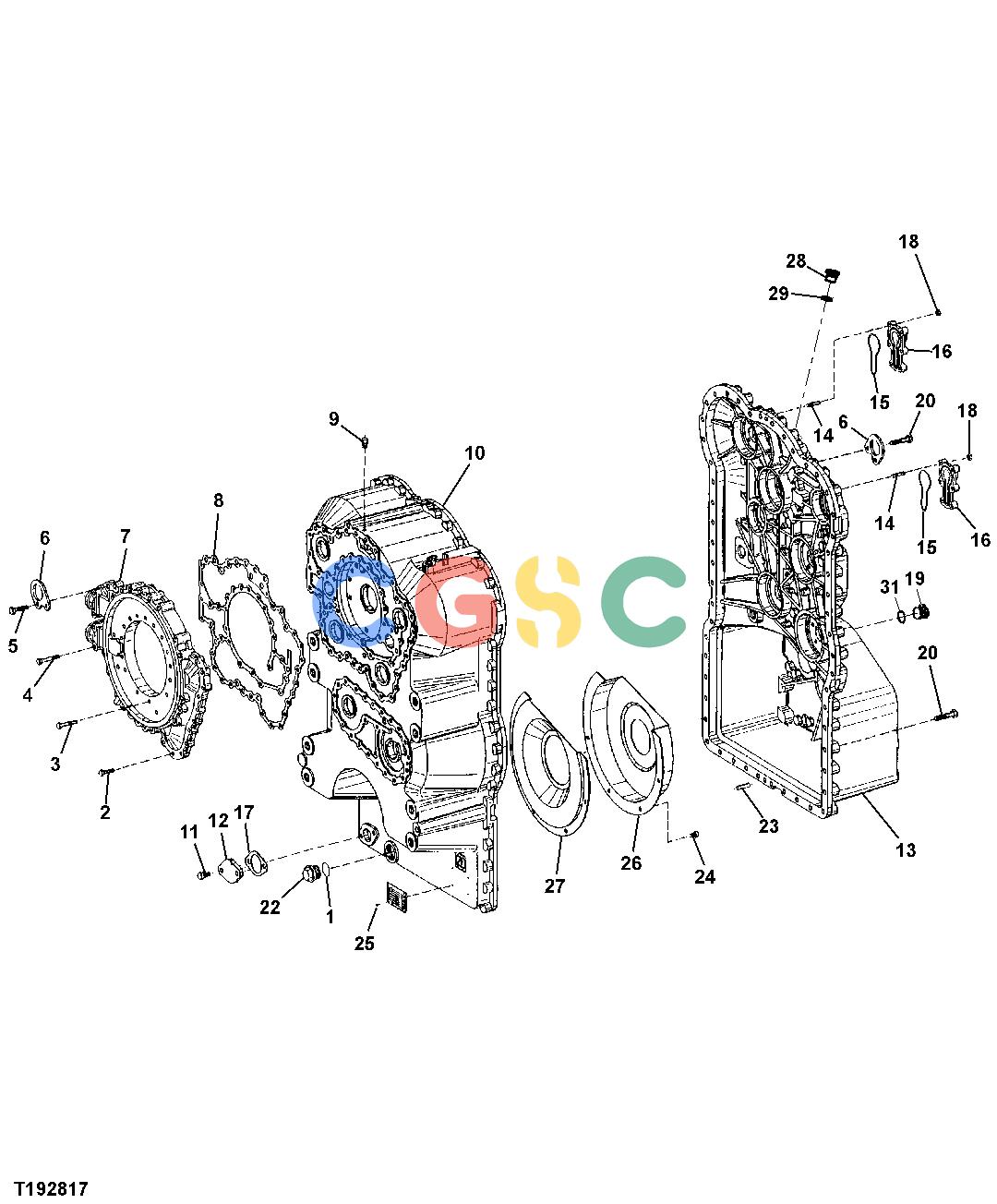

约翰迪尔零件查询RE160299 - AXLE Transmission HousingEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
414 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T174107
|
[1] |
O-Ring
|
|
| 2. |
T161208
|
[15] |
Cap Screw
|
|
| 3. |
19M2972
|
[21] |
Cap Screw
|
|
| 4. |
T173819
|
[4] |
Cap Screw
|
|
| 5. |
19M8637
|
[2] |
Cap Screw
|
|
| 6. |
T171112
|
[2] |
Plate
|
|
| 7. |
T173063
|
[1] |
Manifold
|
|
| 8. |
T172795
|
[1] |
Gasket
|
|
| 9. |
T116918
|
[1] |
Breather
|
|
| 10. |
T197461
|
[1] |
Transmission Case
|
|
| 11. |
19M7284
|
[2] |
Cap Screw
|
|
| 12. |
T144370
|
[1] |
Plate
|
|
| 13. |
T181615
|
[1] |
Housing
|
|
| 14. |
T180884
|
[12] |
Stud
|
|
| 15. |
T174238
|
[2] |
O-Ring
|
|
| 16. |
T171111
|
[2] |
Cover
|
|
| 17. |
T116604
|
[1] |
Gasket
|
|
| 18. |
14M7298
|
[12] |
Flange Nut
|
|
| 19. |
T173217
|
[1] |
Fitting Plug
|
|
| 20. |
19M7658
|
[53] |
Cap Screw
|
|
| 22. |
T172094
|
[1] |
Drain Plug
|
|
| 23. |
T179318
|
[2] |
Pin
|
|
| 24. |
19M7964
|
[5] |
Cap Screw
|
|
| 25. |
25M7021
|
[4] |
Groove Pin
|
|
| 26. |
T173812
|
[1] |
Shroud
|
|
| 27. |
T173811
|
[1] |
Shroud
|
|
| 28. |
T122803
|
[1] |
Fitting Plug
|
|
| 29. |
T175864
|
[1] |
O-Ring
|
|
