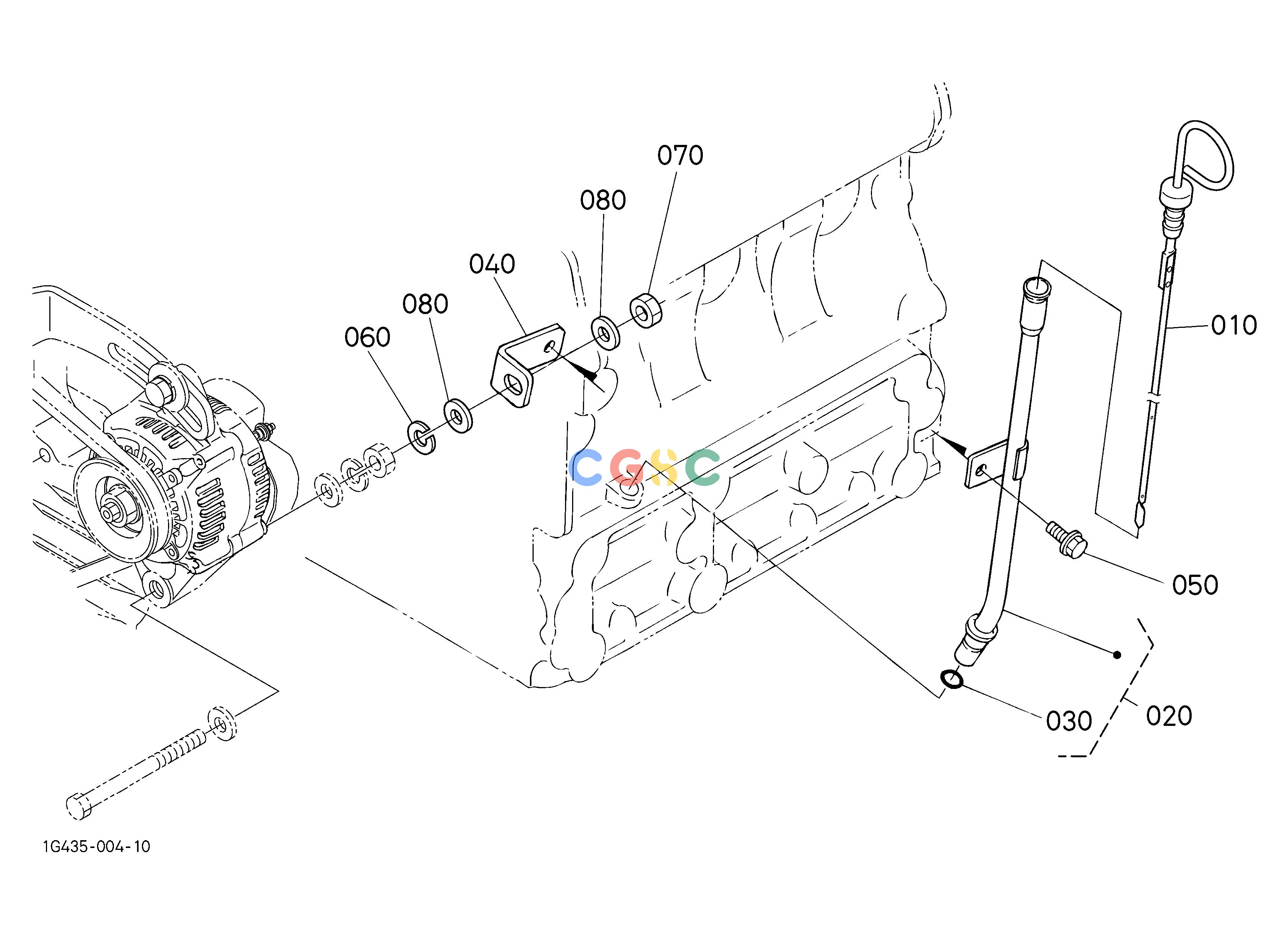

久保田零件查询000700 DIPSTICK AND GUIDE ## S.No.;<=7F8753 ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
682 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1G47036412
|
[1] |
GAUGE OIL
|
0.0660(lbs); 0.030
|
| 020. |
1668936500
|
[1] |
ASSY GUIDE OIL GAUGE
|
0.1870(lbs); 0.085
|
| 030. |
0481400090
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
1668936440
|
[1] |
SUPPORT GAUGE GUIDE
|
0.0638(lbs); 0.029
|
| 050. |
0175450612
|
[1] |
BOLT FLANGE
|
0.0110(lbs); 0.005
|
| 060. |
0451260080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 070. |
0215650080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 080. |
0401360080
|
[2] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
