约翰迪尔零件查询RE160299 - AXLE Clutch Assembly (Forward Clutch)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 440 次

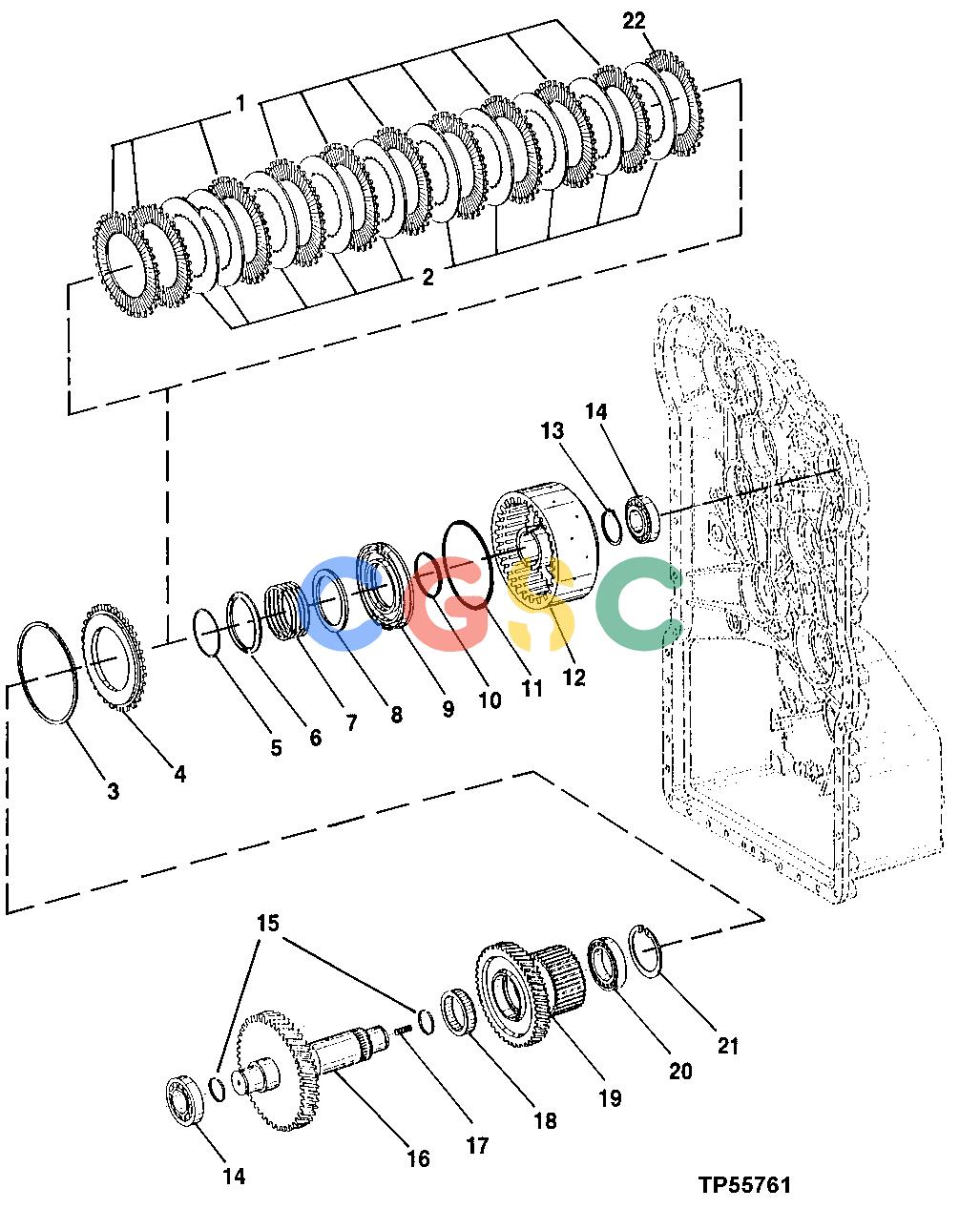

Pos.	Part No	Qty	Parts name	Comments
1.	T173841	[10]	Clutch Disk
2.	T173842	[10]	Clutch Disk
3.	T173863	[AR]	Snap Ring
3.	T173864	[AR]	Snap Ring
3.	T181881	[AR]	Snap Ring	2.4 MM (.095")
3.	T181882	[AR]	Snap Ring	2.7 MM (.106")
3.	T181883	[AR]	Snap Ring	3.0 MM (.118")
3.	T181884	[AR]	Snap Ring	3.3 MM (.123")
4.	T294875	[1]	Solid Shim	SUB FOR T173844
5.	T173067	[1]	Snap Ring
6.	T173066	[1]	Snap Ring
7.	T173065	[1]	Compression Spring	COMPRESSION
8.	T173644	[1]	Ring
9.	T173853	[1]	Piston
10.	T173958	[1]	O-Ring
11.	T173960	[1]	O-Ring
12.	T173856	[1]	Housing
13.	T159519	[2]	Snap Ring
14.	T294935	[2]	Bearing	SUB FOR T171156 IMPORTANT-HIGH TOLERANCE BEARING REQUIRED IN THIS LOCATION. USE ONLY JOHN DEERE PARTS SOURCED BEARINGS.
15.	T172115	[2]	Piston Ring
16.	T294889	[1]	Shaft	SUB FOR T173862
17.	T171153	[1]	Stud
18.	T172302	[1]	Needle Bearing
19.	T173848	[2]	Idler
20.	T197553	[1]	Ball Bearing
21.	40M7060	[1]	Snap Ring
22.	T173840	[1]	Clutch Disk
