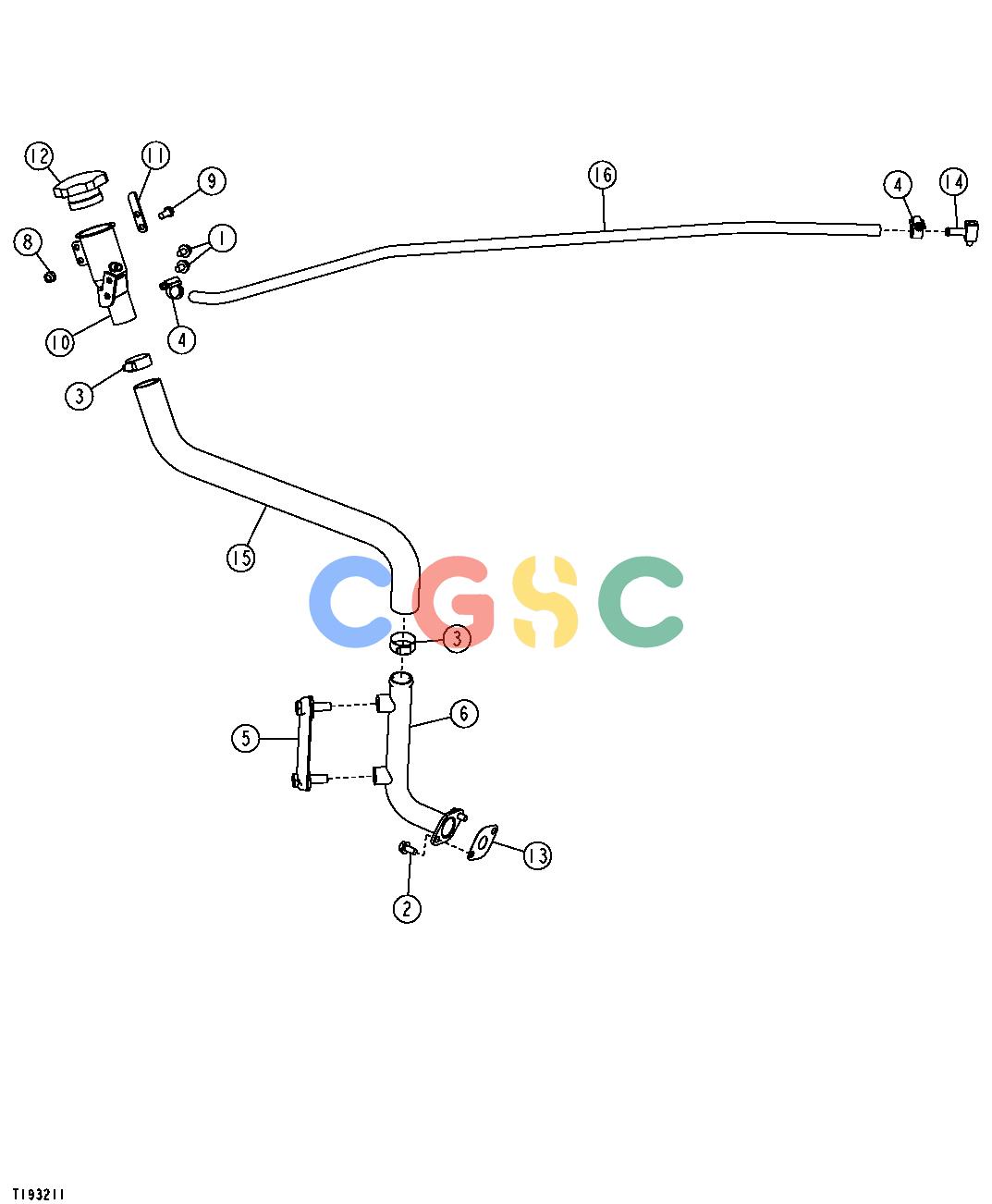

约翰迪尔零件查询RE160299 - AXLE TRANSMISSION OIL FILLEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
561 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M7864
|
[2] |
Screw
|
|
| 2. |
19M7865
|
[2] |
Screw
|
|
| 2. |
19M7867
|
[2] |
Screw
|
|
| 3. |
AR21839
|
[2] |
Clamp
|
|
| 4. |
AR21836
|
[2] |
Clamp
|
|
| 5. |
AT227279
|
[1] |
Level Gauge
|
|
| 6. |
........
|
[1] |
Tube
|
|
| 6. |
AT324881
|
[1] |
Tube
|
|
| 8. |
14M7426
|
[1] |
Lock Nut
|
|
| 9. |
19M7162
|
[1] |
Cap Screw
|
|
| 10. |
AT227248
|
[1] |
Filler Neck
|
|
| 11. |
T196464
|
[1] |
Strap
|
|
| 12. |
RE500250
|
[1] |
Filler Cap
|
|
| 13. |
T116604
|
[1] |
Gasket
|
|
| 13. |
R105415
|
[1] |
O-Ring
|
|
| 14. |
T196587
|
[1] |
Tee Fitting
|
|
| 15. |
T197665
|
[1] |
Hose
|
|
| 16. |
M87571
|
[1] |
Hose
|
|
