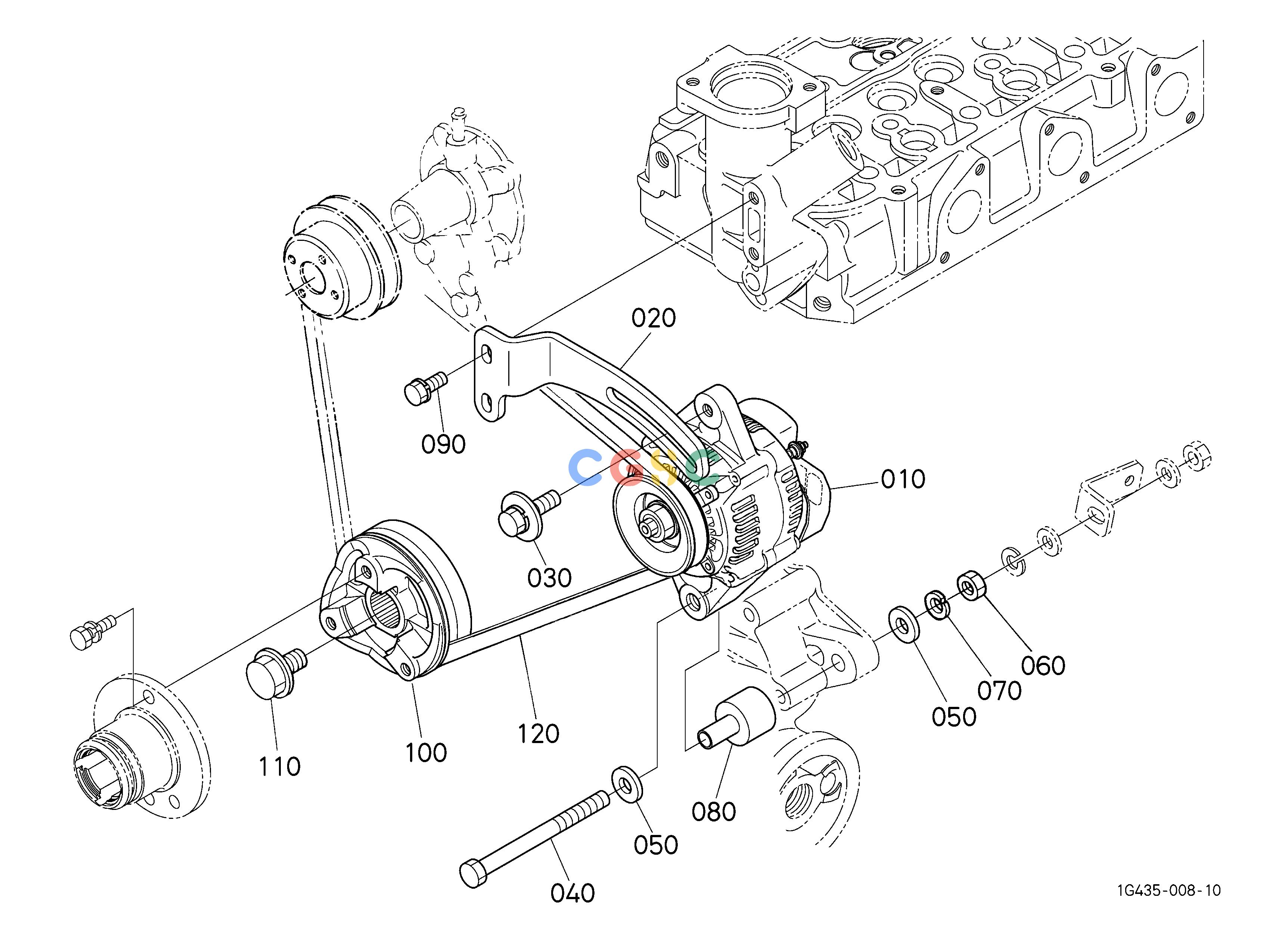

久保田零件查询040200 ALTERNATOR AND PULLEY ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
1001 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1G82564010
|
[1] |
ALTERNATOR
|
6.5560(lbs); 2.980
|
| 020. |
1G43564420
|
[1] |
STAY ALTERNATOR
|
0.2640(lbs); 0.120
|
| 030. |
1687191030
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 040. |
1755991010
|
[1] |
BOLT
|
0.0660(lbs); 0.030
|
| 050. |
0401360080
|
[2] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 060. |
0215650080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 070. |
0451260080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 080. |
1983764374
|
[1] |
COLLAR
|
0.1320(lbs); 0.060
|
| 090. |
0102350616
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 100. |
1686174285
|
[1] |
PULLEY FAN DRIVE
|
2.4420(lbs); 1.110
|
| 110. |
1588191030
|
[1] |
BOLT
|
0.1320(lbs); 0.060
|
| 120. |
1588197010
|
[1] |
V BELT
|
0.1760(lbs); 0.080
|
