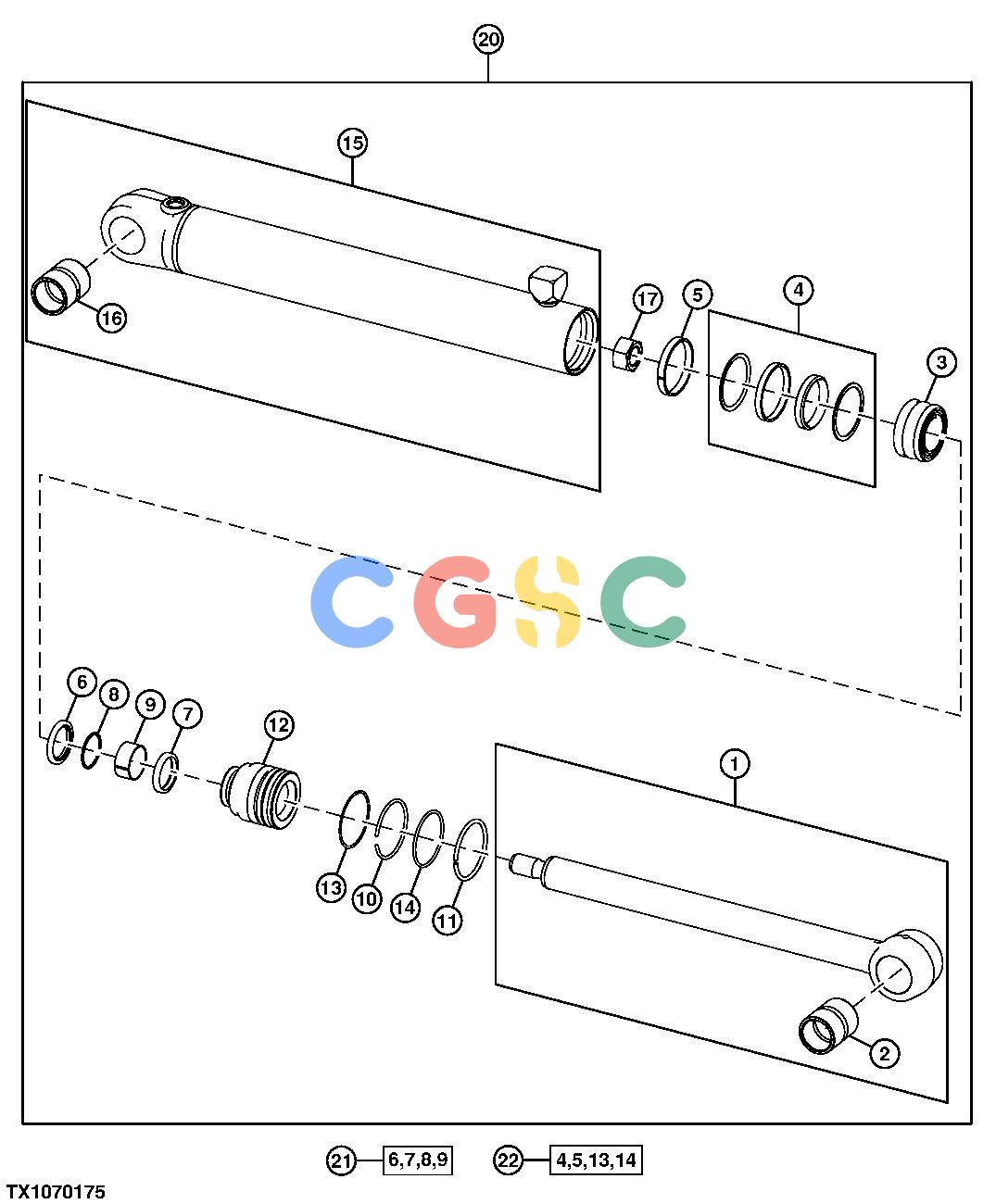

约翰迪尔零件查询RE160299 - AXLE Steering CylinderEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
1005 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AH150396
|
[1] |
Rod
|
|
| 2. |
H158192
|
[1] |
Bushing
|
|
| 3. |
H162141
|
[1] |
Piston
|
|
| 4. |
RE20342
|
[1] |
Seal
|
|
| 5. |
R81774
|
[1] |
Scraper Ring
|
|
| 6. |
AH148608
|
[1] |
Seal
|
|
| 7. |
AH150453
|
[1] |
Seal
|
|
| 8. |
H155655
|
[1] |
Seal
|
|
| 9. |
H157897
|
[1] |
Wear Ring
|
|
| 10. |
H178765
|
[1] |
Snap Ring
|
|
| 11. |
H179657
|
[1] |
Snap Ring
|
|
| 12. |
H210939
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 13. |
R81195
|
[1] |
Back-Up Ring
|
|
| 14. |
U12198
|
[1] |
O-Ring
|
|
| 15. |
AH211239
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 16. |
H143405
|
[1] |
Bushing
|
|
| 17. |
H170538
|
[1] |
Nut
|
|
| 20. |
........
|
[1] |
Hydraulic Cylinder
|
|
| 21. |
AH149194
|
[1] |
Hydraulic Cylinder Kit
|
|
| 22. |
AH212089
|
[1] |
Hydraulic Cylinder Kit
|
|
