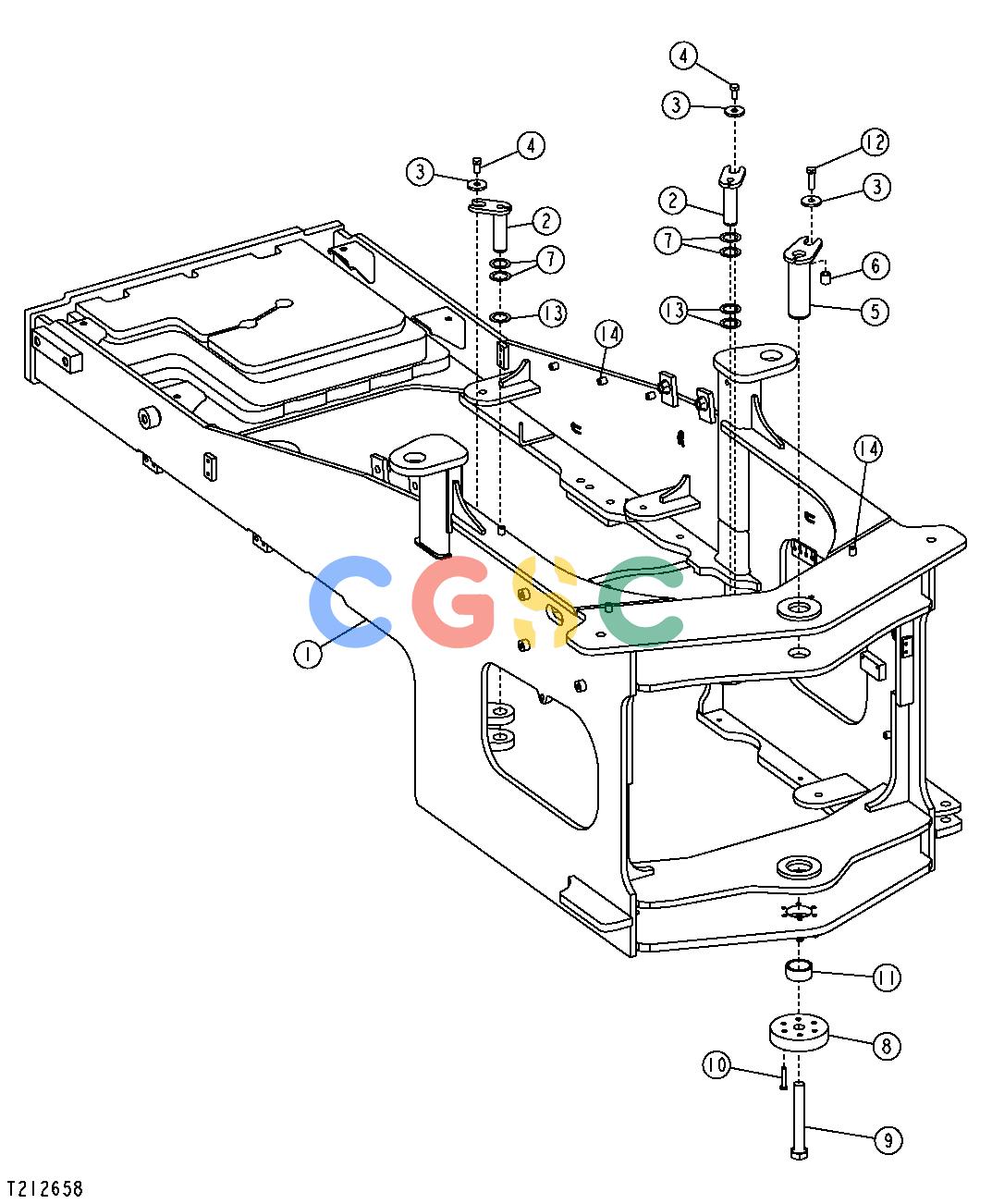

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | ........ | [1] | Frame | (CONVENIENCE ASSY) ( AT226627 NLA) |
| 2. | AT345967 | [2] | Pin | (SUB FOR AT203570 OR AT133204) |
| 3. | T176064 | [3] | Bushing | (SUB FOR T146246) |
| 4. | 19M7488 | [2] | Cap Screw | M16 X 40 (SUB FOR 19M8029) |
| 5. | AT206751 | [1] | Pin | |
| 6. | T239722 | [1] | Sleeve | (SUB FOR 28H3452, THIS APPLICATION) |
| 7. | 24H1556 | [4] | Washer | 1-41/64" X 2-3/8" X 0.048" |
| 8. | T182446 | [1] | Cover | |
| 9. | 19M9189 | [1] | Cap Screw | M30 X 220 |
| 10. | 19M7363 | [6] | Cap Screw | M12 X 60 |
| 11. | T182265 | [1] | Bushing | |
| 12. | 19M7719 | [1] | Cap Screw | M16 X 70 (SUB FOR 19M8295 AND 19M7488) |
| 13. | 24H1558 | [3] | Washer | 1-41/64" X 2-3/8" X 0.075" |
| 14. | T72414 | [12] | Bushing |
