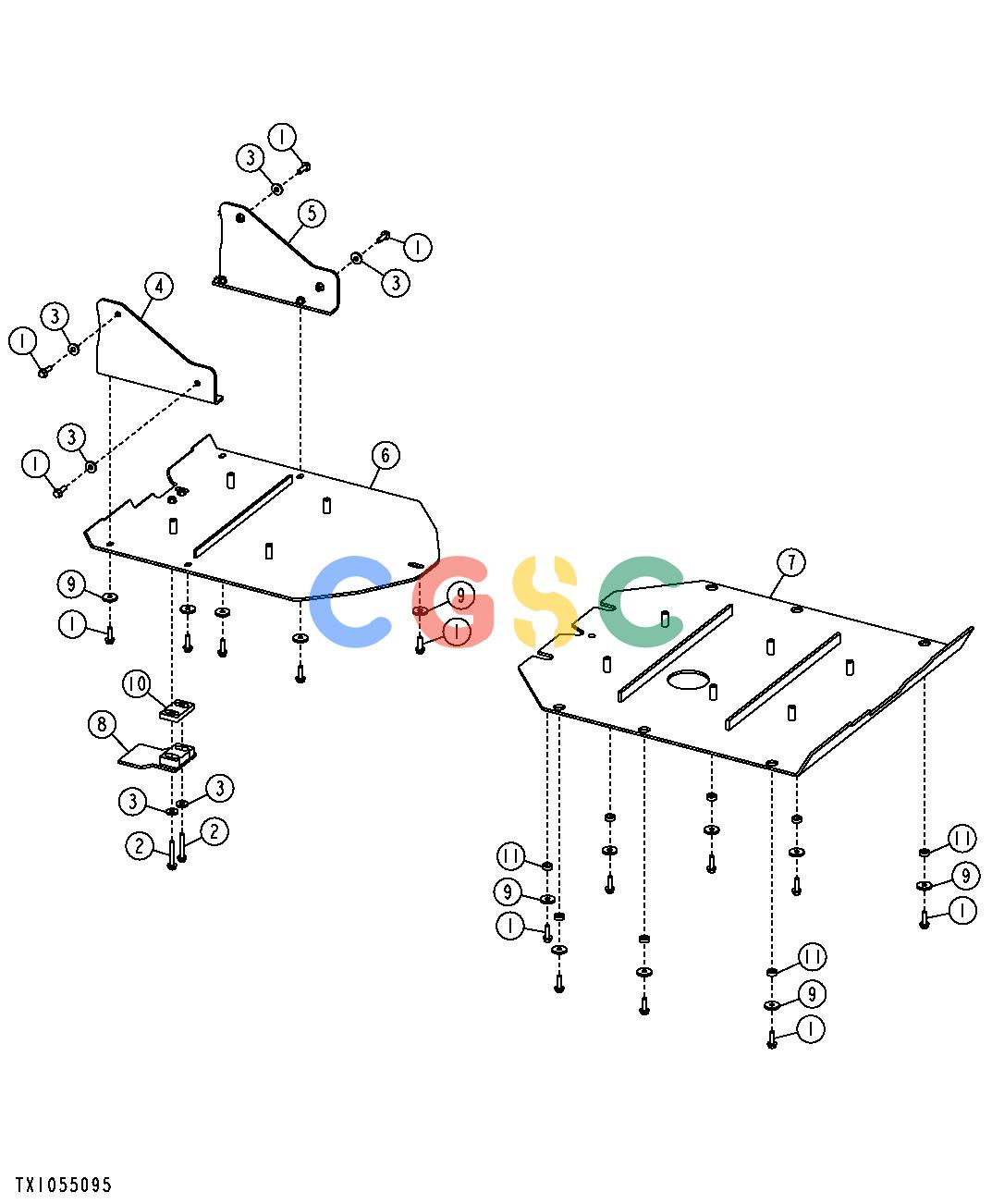

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 19M7791 | [17] | Bolt | M12 X 40 |
| 2. | 19M7818 | [2] | Screw | M12 X 80 |
| 3. | 24M7226 | [6] | Washer | 13 X 35 X 5 MM |
| 4. | AT207432 | [1] | Support | LH |
| 5. | AT207433 | [1] | Support | RH |
| 6. | AT208185 | [1] | Guard | |
| 7. | AT208203 | [1] | Guard | |
| 8. | AT221332 | [1] | Guard | |
| 9. | T20217 | [13] | Washer | 12.954 X 43.942 X 6.350 MM (0.510" X 1.730" X 1/4") |
| 10. | T177255 | [1] | Strap | |
| 11. | T197569 | [8] | Bushing | 16.300 X 28.500 X 10.300 MM (0.642" X 1.122" X 13/32") |
