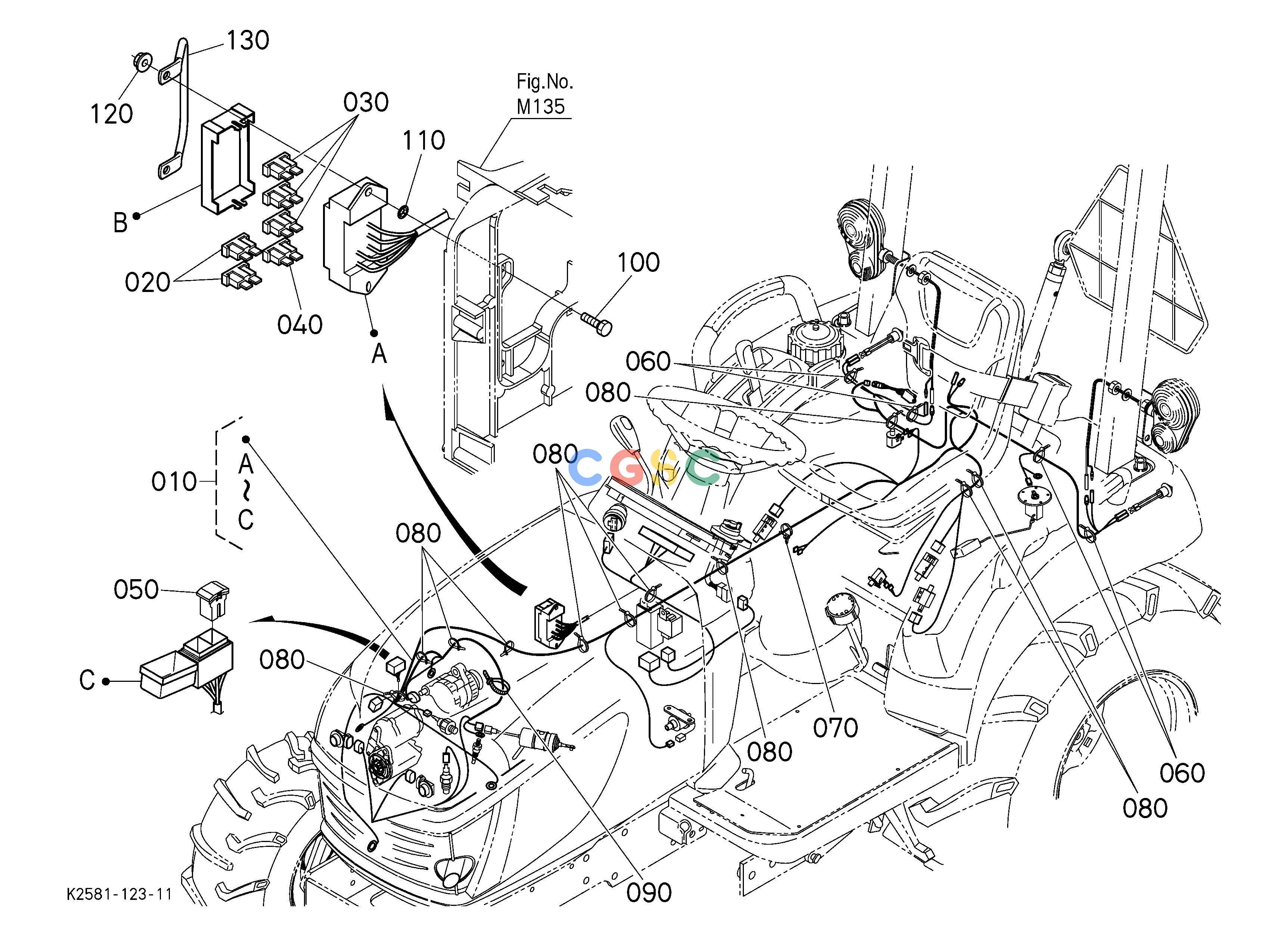

久保田零件查询B50103 ELECTRICAL WIRING ## S.No.>=52258 NOTE:ORDER BY REF.No.010 NEW PART and ALL PART OF Fig.No.U825. ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
490 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258163226
|
[1] |
ASSY WIRE HARNESS
|
0.0000(lbs); 0.000
|
| 020. |
T106030440
|
[2] |
FUSE
|
0.0110(lbs); 0.005
|
| 030. |
T106030450
|
[3] |
FUSE
|
0.0110(lbs); 0.005
|
| 040. |
T106030460
|
[1] |
FUSE
|
0.0044(lbs); 0.002
|
| 050. |
T106030530
|
[1] |
FUSE
|
0.0154(lbs); 0.007
|
| 060. |
K258161252
|
[4] |
CLAMP,WIRE HARNESS
|
0.0000(lbs); 0.000
|
| 070. |
T106530540
|
[1] |
CLIP
|
0.0132(lbs); 0.006
|
| 080. |
K112261230
|
[12] |
CLAMP,CORD
|
0.0022(lbs); 0.001
|
| 090. |
7554666920
|
[1] |
BAND,CODE
|
0.0198(lbs); 0.009
|
| 100. |
0105350620
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 100. |
0105350625
|
[2] |
BOLT
|
0.0154(lbs); 0.007
|
| 110. |
K756154190
|
[2] |
NUT
|
0.0022(lbs); 0.001
|
| 120. |
0275150060
|
[2] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 130. |
K258161260
|
[1] |
ROD,WIRE HARNESS
|
0.0000(lbs); 0.000
|
