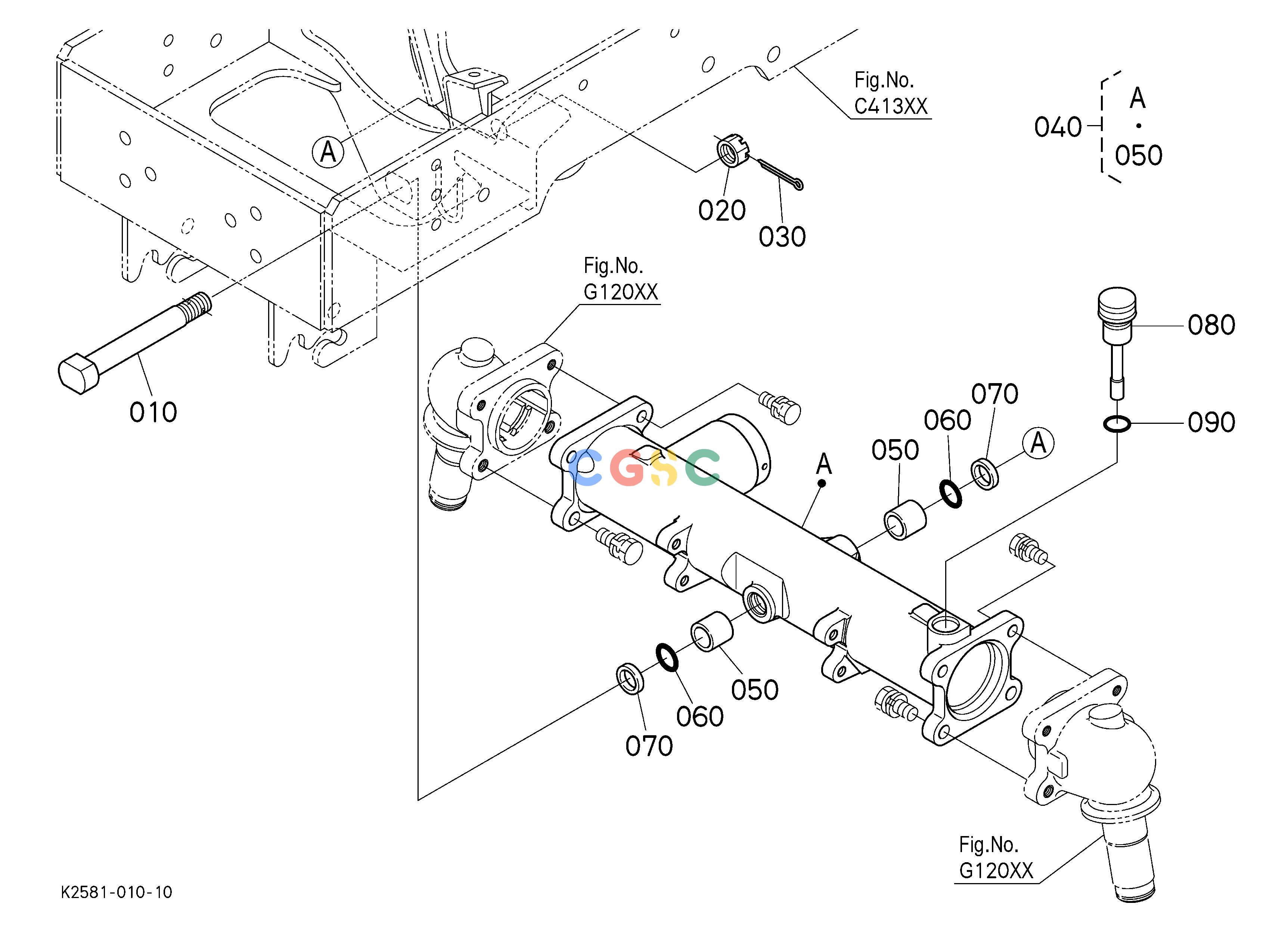

久保田零件查询G11001 FRONT DIFFERENTIAL CASE FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
340 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K251115132
|
[1] |
SHAFT CENTER
|
0.9680(lbs); 0.440
|
| 010. |
K251115133
|
[1] |
SHAFT CENTER
|
0.9460(lbs); 0.430
|
| 020. |
K251115190
|
[1] |
NUT
|
0.0660(lbs); 0.030
|
| 030. |
0551150440
|
[1] |
PIN SPLIT
|
0.0088(lbs); 0.004
|
| 040. |
K250190200
|
[1] |
ASSY CASE FRONT
|
18.8980(lbs); 8.590
|
| 050. |
0851102025
|
[2] |
BUSH
|
0.0440(lbs); 0.020
|
| 060. |
6781737190
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
K258115270
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
| 070. |
K256115250
|
[2] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 080. |
K258115240
|
[1] |
GAUGE OIL
|
0.0594(lbs); 0.027
|
| 090. |
0481600180
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 090. |
0481700180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
