约翰迪尔零件查询RE160299 - AXLE Sound AbsorptionEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 346 次

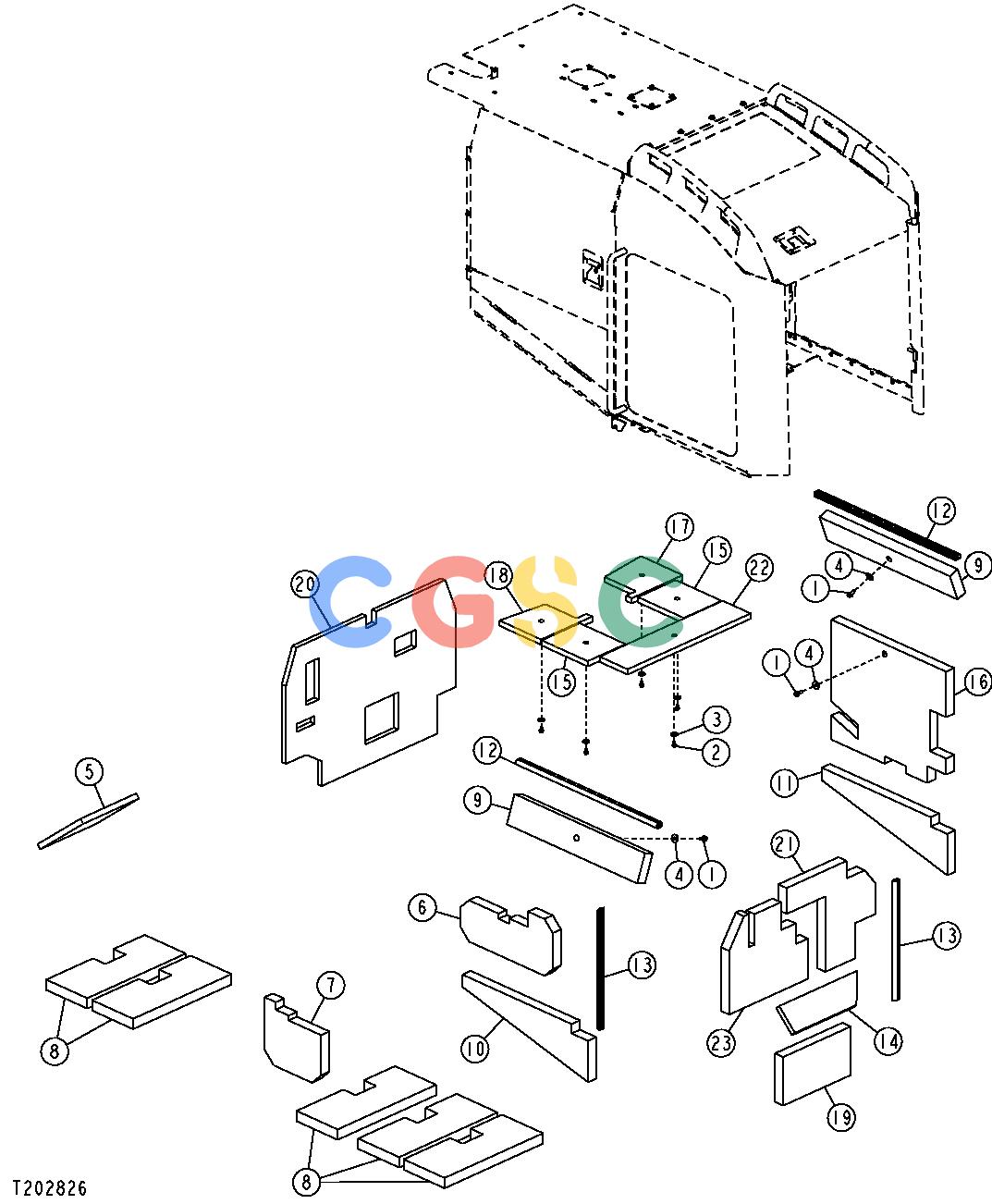

Pos.	Part No	Qty	Parts name	Comments
1.	19M7785	[13]	Screw	M10 X 25
2.	19M7865	[5]	Screw	M8 X 16
3.	24M7024	[5]	Washer	9 X 28 X 3 MM
4.	24M7101	[13]	Washer	11 X 34 X 3 MM
5.	T206155	[1]	Isolator	ABSORBER, CONTROL VALVE COVER
6.	T206157	[1]	Isolator	ABSORBER, RIGHT TRANS. COVER
7.	T206158	[1]	Isolator	ABSORBER, LEFT TRANS. COVER
8.	T206159	[5]	Isolator	ABSORBER, BOTTOM GUARD
9.	T206783	[2]	Isolator	ABSORBER, LEFT ENGINE DOOR
10.	T206857	[1]	Isolator	ABSORBER, LEFT SERVICE DOOR
11.	T206858	[1]	Isolator	ABSORBER, LEFT ENGINE DOOR
12.	T206866	[2]	Isolator	SEAL, ISOLATOR
13.	T206873	[2]	Isolator	SEAL, SOUND ABSORBER
14.	T210399	[1]	Isolator	ABSORBER, BAFFLE
15.	T210426	[2]	Isolator	ABSORBER, HOOD
16.	T210488	[1]	Isolator	ABSORBER, RIGHT DOOR
17.	T210489	[1]	Isolator	ABSORBER, HOOD
18.	T210490	[1]	Isolator	ABSORBER, HOOD
19.	T210511	[1]	Isolator	ABSORBER, BAFFLE
20.	T210513	[1]	Isolator	ABSORBER, SOUND
21.	T210521	[1]	Isolator	ABSORBER, SOUND
22.	T210522	[1]	Isolator	ABSORBER, SOUND
23.	T210585	[1]	Isolator	ABSORBER, BAFFLE
