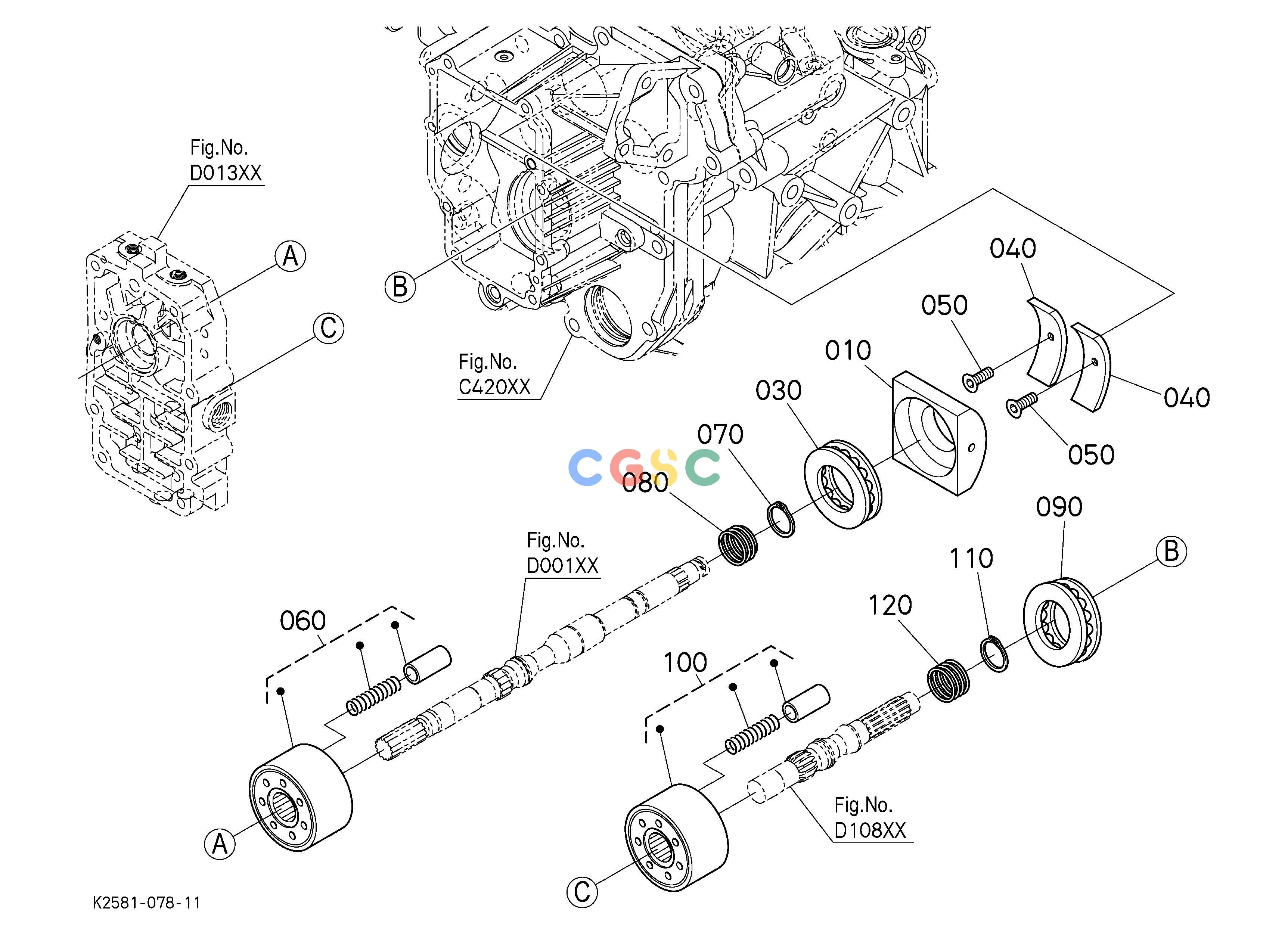

Pos.	Part No	Qty	Parts name	Comments
010.	5H55019110	[1]	SWASH PLATE	1.4080(lbs); 0.640
030.	5H55019120	[1]	BEARING,THRUST BALL	; <=55281 0.4840(lbs); 0.220
030.	K316111310	[1]	BRG,THR BALL	; >=55282 0.4620(lbs); 0.210
040.	5H55019130	[2]	BEARING,CRADLE	; <=56098 0.0726(lbs); 0.033
040.	6C30011740	[2]	BEARING(CRADLE)	; >=56099 0.0726(lbs); 0.033
050.	K258114240	[2]	SCREW,CSKH	0.0022(lbs); 0.001
060.	5H55019200	[1]	ASSY BLOCK,CYL.(P)	; <=56629 2.0460(lbs); 0.930
060.	5H55019202	[1]	ASSY BLOCK,CYL.(P)	; >=56630 2.0680(lbs); 0.940
070.	5H55019280	[1]	CIR CLIP,EXTERNAL	0.0044(lbs); 0.002
080.	5H55019250	[1]	SPRING	0.0308(lbs); 0.014
090.	5H55019120	[1]	BEARING,THRUST BALL	; <=55281 0.4840(lbs); 0.220
090.	K316111310	[1]	BRG,THR BALL	; >=55282 0.4620(lbs); 0.210
100.	5H55019400	[1]	ASSY BLOCK,CYL.(M)	; <=56629 2.0570(lbs); 0.935
100.	5H55019402	[1]	ASSY BLOCK,CYL.(M)	; >=56630 2.0680(lbs); 0.940
110.	5H55019280	[1]	CIR CLIP,EXTERNAL	0.0044(lbs); 0.002
120.	5H55019250	[1]	SPRING	0.0308(lbs); 0.014
