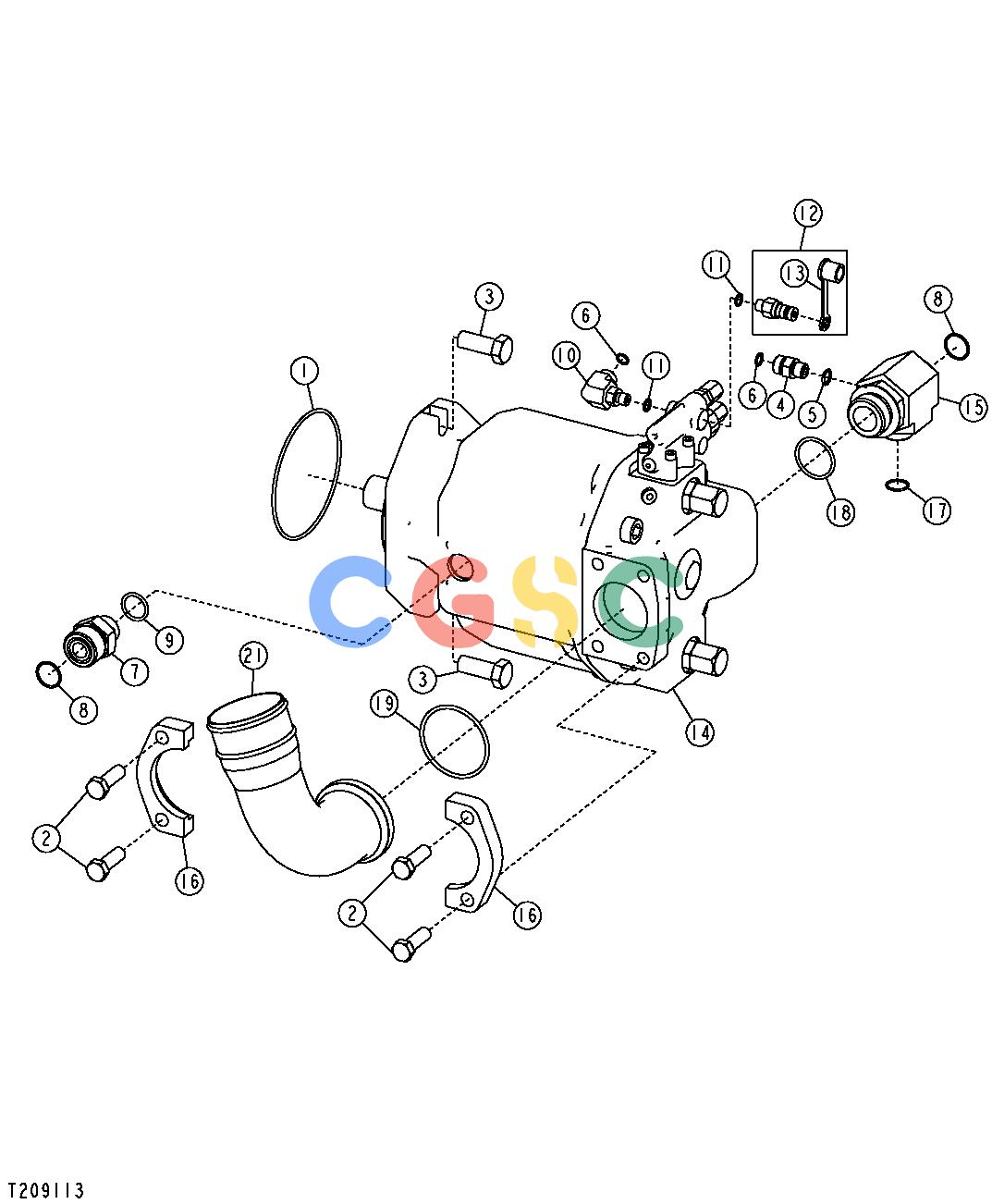

Pos.	Part No	Qty	Parts name	Comments
1.	T107883	[1]	O-Ring	(SUB FOR T132071)
2.	19H2993	[4]	Cap Screw	1/2" X 1-1/2"
3.	19M7488	[2]	Cap Screw	M16 X 40
4.	38H1160	[1]	Adapter Fitting
5.	R26448	[1]	O-Ring
6.	T77613	[2]	O-Ring
6.	T77613	[1]	O-Ring
7.	38H1179	[1]	Adapter Fitting
8.	T76938	[2]	O-Ring
9.	U12547	[1]	O-Ring
10.	38H1435	[1]	Elbow Fitting	(NOT ILLUSTRATED) (SUB FOR 38H1309, THIS APPLICATION)
11.	R28782	[2]	O-Ring
12.	AT180119	[1]	Fitting	(INCLUDES R28782)
13.	R77175	[1]	Cover
14.	........	[1]	Hydraulic Pump	(FURNISH AT347904, RESET MARGIN PRESSURE TO 230 PSI.) ( AT227701 AND AT323920 NLA)
14.	........	[1]	Hydraulic Pump	(FURNISH AT347904, RESET MARGIN PRESSURE TO 230 PSI.) ( AT317801 AND AT323920 NLA)
14.	........	[1]	Hydraulic Pump	(FURNISH AT347904, RESET MARGIN PRESSURE TO 230 PSI.) ( AT310979 AND AT323920 NLA)
14.	AT347904	[1]	Hydraulic Pump	(SUB FOR AT323920)
14.	PG200237	[1]	Hydraulic Pump Reman	(REMAN FOR AT323920)
14.	AT302146	[1]	Seal Kit	(HYDRAULIC PUMP SEAL KIT)
14.	AT347902	[1]	Spool Valve	(SUB FOR (1) AT302144 ) (ALSO ORDER (1) AT341165)(PUMP CONTROL VALVE)
14.	AT306219	[1]	Seal Kit	(PUMP CONTROL VALVE SEAL KIT)
14.	T201525	[1]	Seal	(SEAL RING FOR ADJUSTMENT CARTRIDGES)
14.	T201521	[1]	Gasket	(CONTROL VALVE SEAL PLATE)
15.	AT306945	[1]	Tee Fitting
15.	38H1574	[1]	Tee Fitting
16.	U44384	[2]	Flange Fitting
17.	T77858	[1]	O-Ring
18.	U13639	[1]	O-Ring
19.	U12331	[1]	O-Ring
21.	T204584	[1]	Tube
