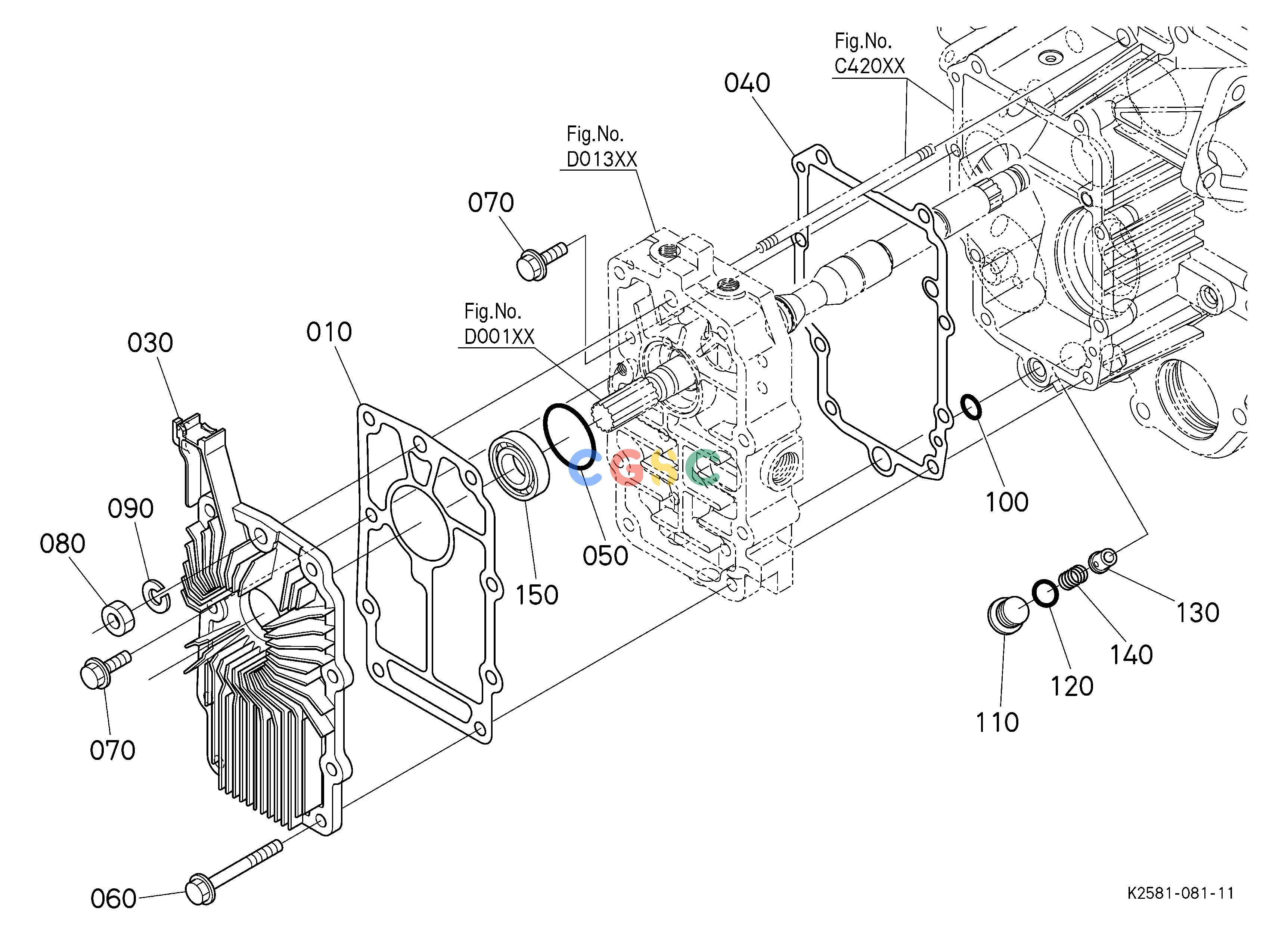

久保田零件查询D01400 HST 4 (OIL COOLER COVER) TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
873 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258114430
|
[1] |
GASKET,FRONT
|
0.0110(lbs); 0.005
|
| 030. |
K258111050
|
[1] |
COVER,OIL COOLER
|
1.3200(lbs); 0.600
|
| 040. |
K258114420
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
| 050. |
0481706420
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0175450865
|
[7] |
BOLT,FLANGE
|
0.0594(lbs); 0.027
|
| 070. |
0175450825
|
[2] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 080. |
0211850100
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 090. |
0451250100
|
[1] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 100. |
0481700120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 110. |
5H60012620
|
[1] |
PLUG
|
0.0484(lbs); 0.022
|
| 120. |
0481700140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 130. |
6636339710
|
[1] |
POPPET
|
0.0132(lbs); 0.006
|
| 140. |
6636339720
|
[1] |
SPRING(L)
|
0.0066(lbs); 0.003
|
| 150. |
0814106004
|
[1] |
BEARING,BALL
|
0.1408(lbs); 0.064
|
