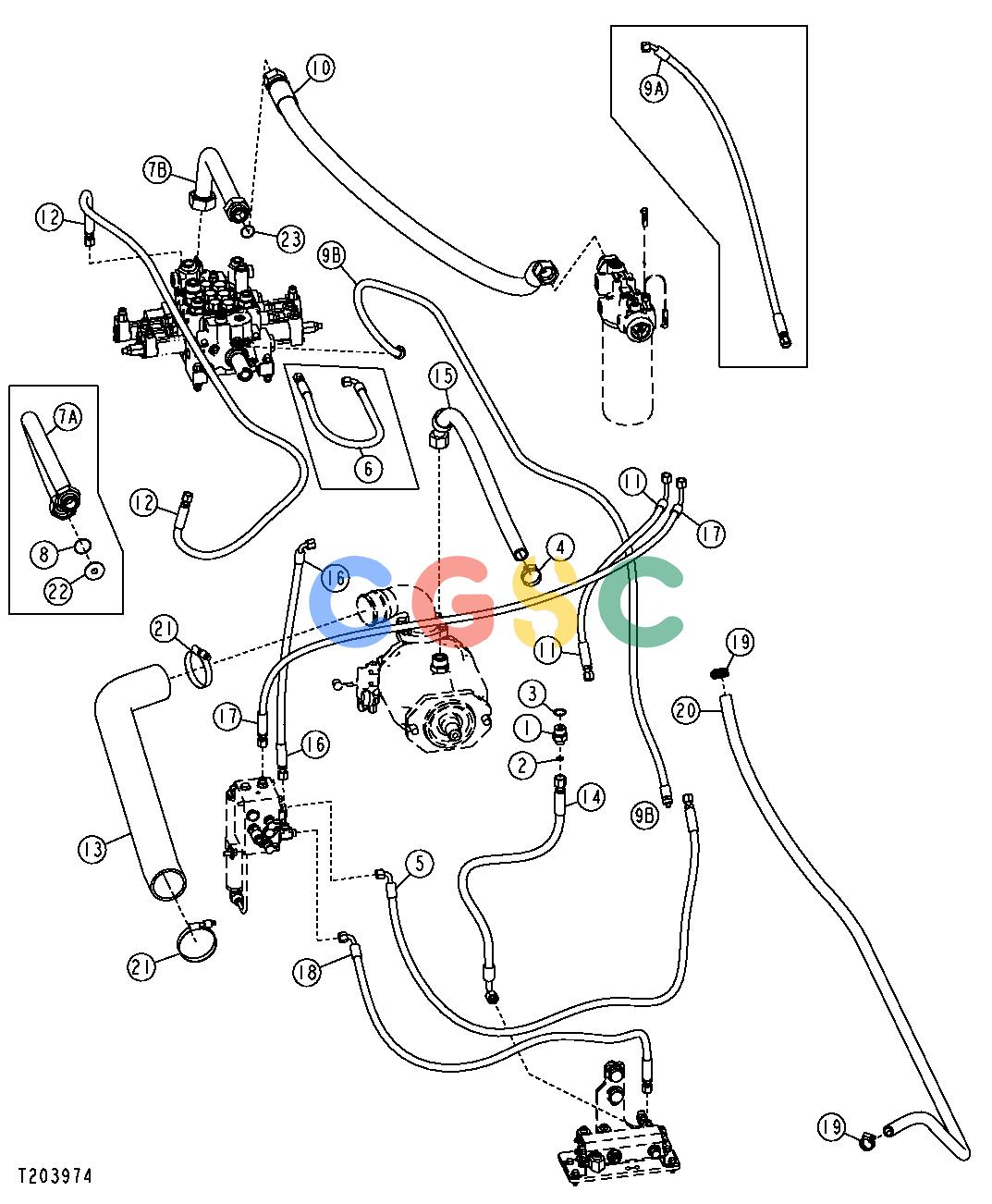

约翰迪尔零件查询RE160299 - AXLE Main Hydraulic LinesEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 948 次

Pos.	Part No	Qty	Parts name	Comments
1.	38H1175	[1]	Adapter Fitting
2.	T77857	[1]	O-Ring
3.	U12547	[1]	O-Ring
4.	AR21839	[1]	Clamp
5.	AT158098	[1]	Hydraulic Hose - Fabricate
6.	AT167553	[1]	Hydraulic Hose - Fabricate
7A.	AT209432	[1]	Oil Line
7B.	AT308426	[1]	Oil Line
8.	T78784	[1]	O-Ring
9A.	AT210667	[1]	Hydraulic Hose - Fabricate
9B.	AT314947	[1]	Hydraulic Hose - Fabricate
9B.	AT318489	[1]	Hydraulic Hose - Fabricate
10.	AT226087	[1]	Hydraulic Hose - Fabricate
11.	AT354609	[1]	Hydraulic Hose - Fabricate	(SUB FOR AT226614)
12.	AT169939	[1]	Hydraulic Hose - Fabricate	(SUB FOR AT228227, THIS APPLICATION)
13.	AT228616	[1]	Suction Hose
14.	AT223815	[1]	Hydraulic Hose - Fabricate	(SUB FOR AT309988)
15.	AT223173	[1]	Hydraulic Hose - Fabricate	(SUB FOR AT304840 ) (SUB FOR AT310561)
16.	AT228617	[1]	Hydraulic Hose - Fabricate	(SUB FOR AT304897)
17.	AT304899	[1]	Hydraulic Hose - Fabricate
18.	AT222163	[1]	Hydraulic Hose - Fabricate	(SUB FOR AT305561)
18.	AT314844	[1]	Hydraulic Hose - Fabricate
18.	AT222163	[1]	Hydraulic Hose - Fabricate
19.	TY22467	[4]	Clamp	(SUB FOR AT79195)
20.	........	[1]	Bulk Hose	(MAKE FROM (1) T148181)(CUT TO LENGTH)
21.	RE52702	[2]	Clamp
22.	T177441	[1]	Orifice
23.	T78612	[1]	O-Ring
24.	H77698	[5]	Tie Band	(NOT ILLUSTRATED)
