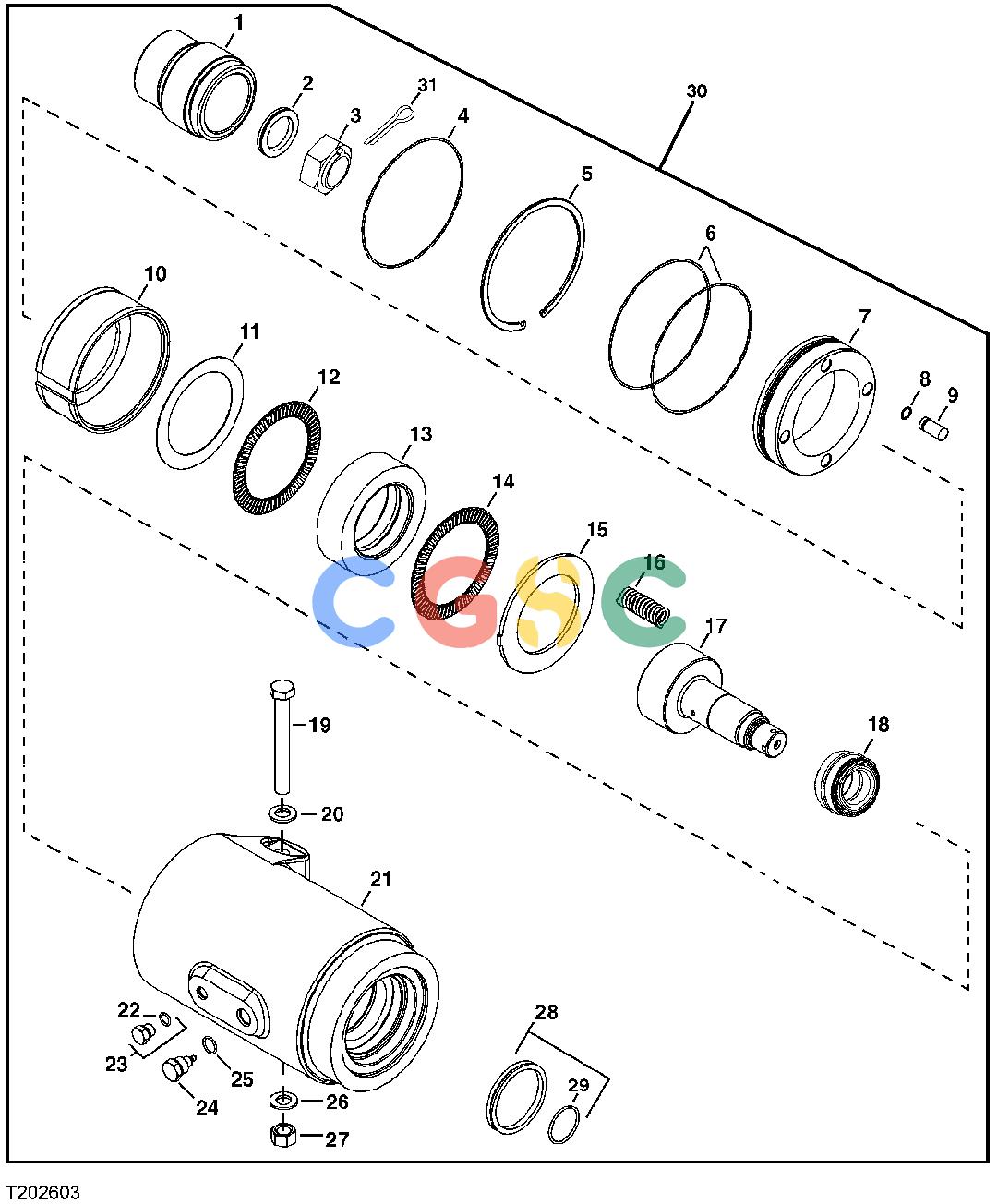

约翰迪尔零件查询RE160302 - AXLE DISCONNECT, AXLE INPUTEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
987 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R135344
|
[1] |
Yoke
|
|
| 2. |
R48734
|
[1] |
Washer
|
|
| 3. |
R151933
|
[1] |
Nut
|
|
| 4. |
T80622
|
[1] |
O-Ring
|
|
| 5. |
R136077
|
[1] |
Ring
|
|
| 6. |
R136078
|
[2] |
O-Ring
|
|
| 7. |
R135345
|
[1] |
Sleeve
|
|
| 8. |
R135118
|
[4] |
O-Ring
|
|
| 9. |
R135805
|
[4] |
Pin
|
|
| 10. |
R135346
|
[1] |
Piston
|
|
| 11. |
R133725
|
[1] |
Thrust Washer
|
|
| 12. |
RE68730
|
[1] |
Bearing
|
|
| 13. |
R135348
|
[1] |
Shift Collar
|
|
| 14. |
RE68730
|
[1] |
Bearing
|
|
| 15. |
R135347
|
[1] |
Washer
|
|
| 16. |
R38185
|
[4] |
Spring
|
|
| 17. |
R135343
|
[1] |
Universal Driveshaft
|
|
| 18. |
F58602
|
[1] |
Bearing
|
|
| 19. |
19M8019
|
[1] |
Cap Screw
|
|
| 20. |
24M7338
|
[1] |
Washer
|
|
| 21. |
R135342
|
[1] |
Housing
|
|
| 22. |
51M7041
|
[1] |
O-Ring
|
|
| 23. |
RE46684
|
[1] |
Fitting Plug
|
|
| 24. |
R36943
|
[1] |
Fitting
|
|
| 25. |
R26375
|
[1] |
O-Ring
|
|
| 26. |
24M7338
|
[1] |
Washer
|
|
| 27. |
14M7276
|
[1] |
Nut
|
|
| 28. |
RE45315
|
[1] |
Seal Kit
|
|
| 28. |
AT314207
|
[1] |
Seal
|
|
| 29. |
R100500
|
[1] |
Seal
|
|
| 30. |
RE68117
|
[1] |
Axle
|
|
| 31. |
11M7032
|
[1] |
Cotter Pin
|
|
