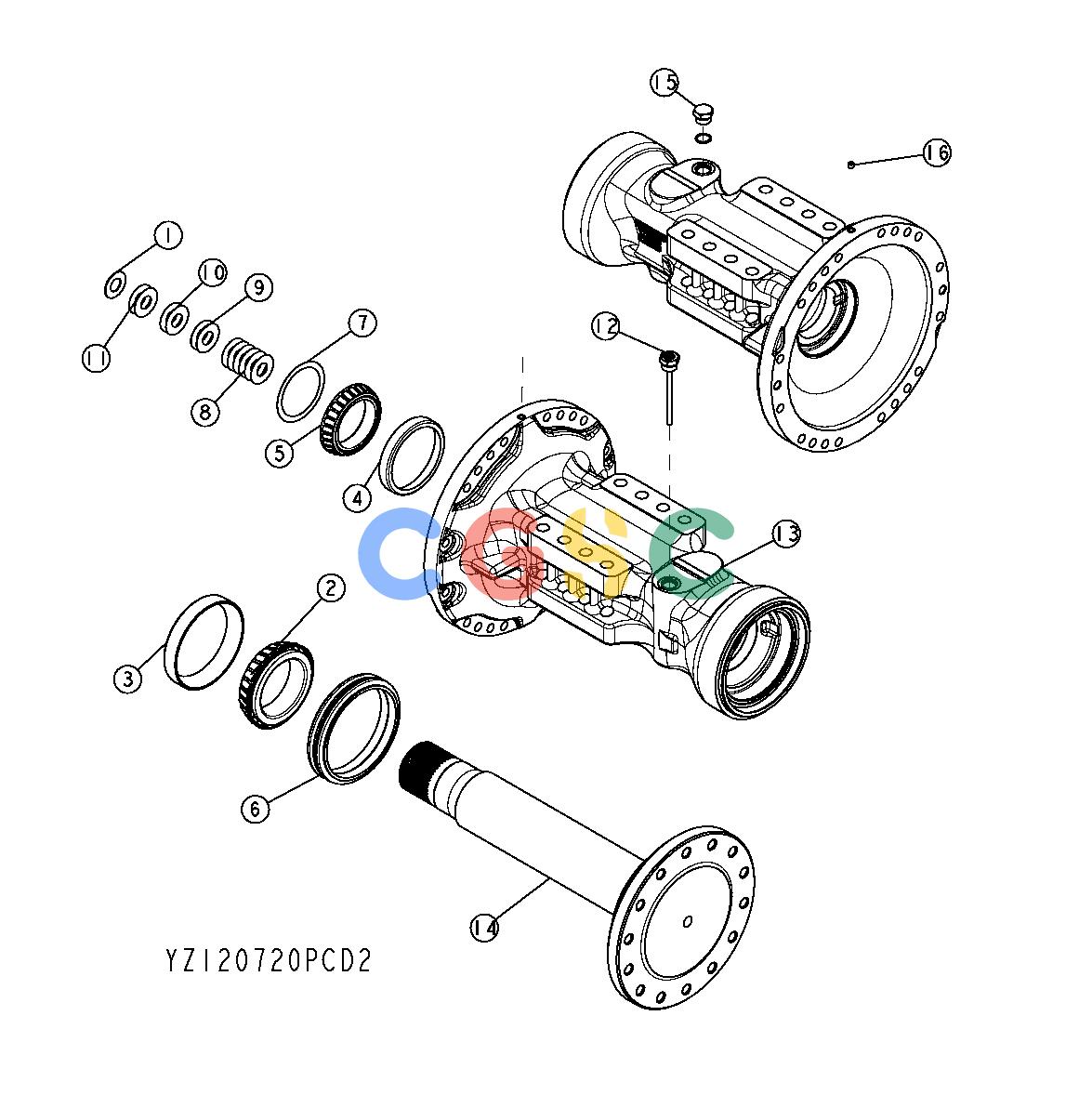

约翰迪尔零件查询RE160302 - AXLE YZ120720 Axle Housing and ShaftEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
131 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F2380R
|
[2] |
Washer
|
|
| 2. |
JD10315
|
[2] |
Bearing Cone
|
|
| 3. |
JD10316
|
[2] |
Bearing Cup
|
|
| 4. |
JD8272
|
[2] |
Bearing Cup
|
|
| 5. |
JD8989
|
[2] |
Bearing Cone
|
|
| 6. |
YZ120453
|
[2] |
Seal
|
|
| 7. |
R52389
|
[2] |
Shim
|
|
| 8. |
R59439
|
[12] |
Shim
|
|
| 9. |
R59440
|
[4] |
Shim
|
|
| 10. |
R61461
|
[4] |
Shim
|
|
| 11. |
R79989
|
[4] |
Shim
|
|
| 12. |
YZ121220
|
[1] |
Dipstick
|
|
| 13. |
YZ121185
|
[2] |
Housing
|
|
| 14. |
YZ120688
|
[2] |
Half Axle
|
|
| 15. |
RE58664
|
[1] |
Fitting
|
|
| 15. |
R27175
|
[1] |
Drain Plug
|
|
| 15. |
F3171R
|
[1] |
O-Ring
|
|
| 16. |
15H558
|
[2] |
Pipe Plug
|
|
