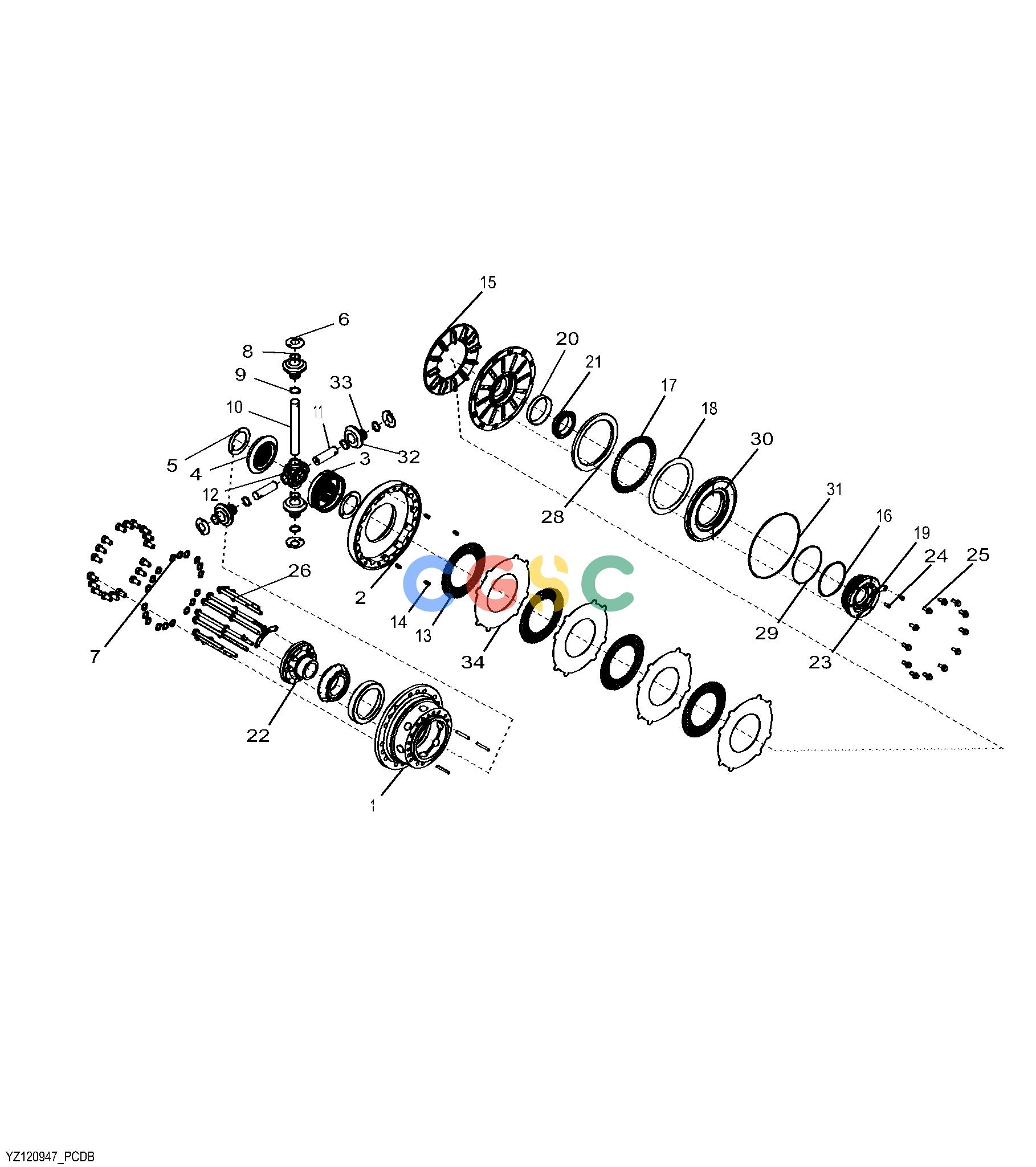

约翰迪尔零件查询RE160302 - AXLE YZ120947 Differential LockEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
767 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
YZ120952
|
[1] |
Housing
|
|
| 2. |
YZ120954
|
[1] |
Housing
|
|
| 3. |
YZ120386
|
[1] |
Bevel Gear
|
|
| 4. |
YZ121133
|
[1] |
Bevel Gear
|
|
| 5. |
R93623
|
[2] |
Thrust Washer
|
|
| 6. |
R59460
|
[4] |
Thrust Washer
|
|
| 7. |
R85226
|
[18] |
Washer
|
|
| 8. |
R70112
|
[4] |
Thrust Washer
|
|
| 9. |
R70113
|
[4] |
Thrust Washer
|
|
| 10. |
R132827
|
[1] |
Pinion Shaft
|
|
| 11. |
R132828
|
[2] |
Pinion Shaft
|
|
| 12. |
R132836
|
[1] |
Hub
|
|
| 13. |
YZ120964
|
[4] |
Clutch Disk
|
|
| 14. |
YZ120902
|
[4] |
Compression Spring
|
|
| 15. |
YZ120958
|
[1] |
Actuator
|
|
| 16. |
YZ120968
|
[1] |
Seal
|
|
| 17. |
YZ120970
|
[1] |
Needle Bearing
|
|
| 18. |
YZ120971
|
[1] |
Thrust Washer
|
|
| 19. |
YZ120961
|
[1] |
Bearing Housing W/O Bearing
|
|
| 20. |
JD8259
|
[1] |
Bearing Cup
|
|
| 21. |
JD8954
|
[1] |
Bearing Cone
|
|
| 22. |
YZ120960
|
[1] |
Bearing Housing W/O Bearing
|
|
| 23. |
YZ121016
|
[2] |
Lock Plate
|
|
| 24. |
19M7162
|
[4] |
Cap Screw
|
|
| 25. |
19M7785
|
[12] |
Screw
|
|
| 26. |
19M8737
|
[16] |
Screw
|
|
| 27. |
R132574
|
[1] |
Structural Tubing
|
|
| 28. |
YZ121228
|
[1] |
Spacer
|
|
| 29. |
R136314
|
[1] |
O-Ring
|
|
| 30. |
34M7040
|
[1] |
Spring Pin
|
|
| 31. |
YZ121090
|
[1] |
Seal
|
|
| 32. |
R134726
|
[1] |
Pinion
|
|
| 33. |
R70115
|
[26] |
Needle Roller
|
|
| 34. |
YZ121110
|
[4] |
Clutch Plate
|
|
