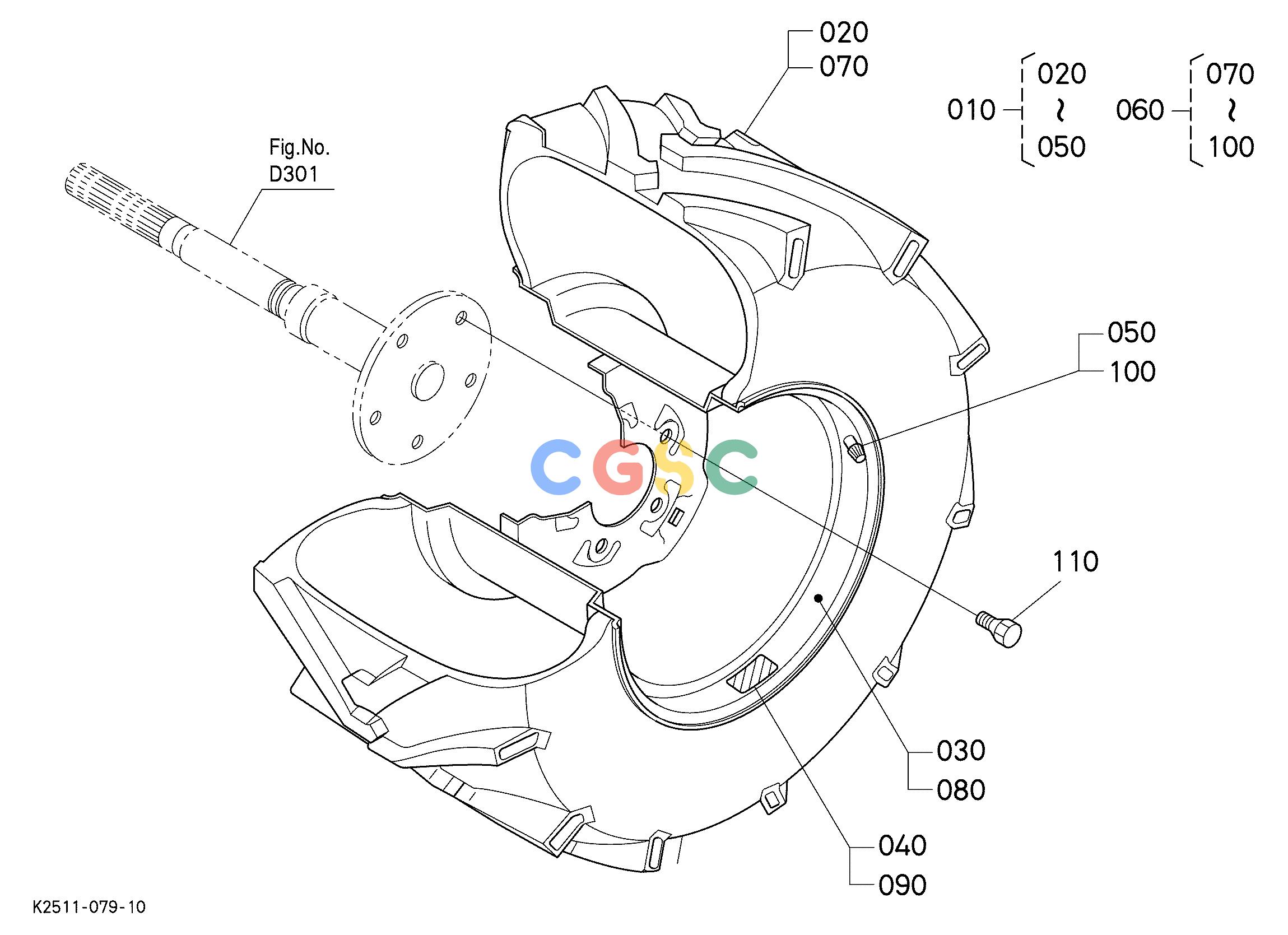

久保田零件查询R11002 REAR WHEEL(24 12-12) REAR TIREEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
272 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K251117410
|
[1] |
TIRE,ASSY BL
|
42.2400(lbs); 19.200
|
| 020. |
K251117150
|
[1] |
TIRE,B
|
26.8400(lbs); 12.200
|
| 030. |
K256117180
|
[1] |
WHEEL
|
13.6400(lbs); 6.200
|
| 040. |
99999-99999
|
[1] |
LABEL,BL
|
0.0000(lbs); 0.000
|
| 050. |
6612017190
|
[1] |
VALVE,TIRE
|
0.0264(lbs); 0.012
|
| 060. |
K251117420
|
[1] |
TIRE,ASSY BR
|
42.0200(lbs); 19.100
|
| 070. |
K251117150
|
[1] |
TIRE,B
|
26.8400(lbs); 12.200
|
| 080. |
K256117180
|
[1] |
WHEEL
|
13.6400(lbs); 6.200
|
| 090. |
99999-99999
|
[1] |
LABEL,BR
|
0.0000(lbs); 0.000
|
| 100. |
6612017190
|
[1] |
VALVE,TIRE
|
0.0264(lbs); 0.012
|
| 110. |
K256117210
|
[10] |
BOLT,WHEEL
|
0.1320(lbs); 0.060
|
