约翰迪尔零件查询RE160302 - AXLE STEERING CYLINDER (S.N. -618145)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 182 次

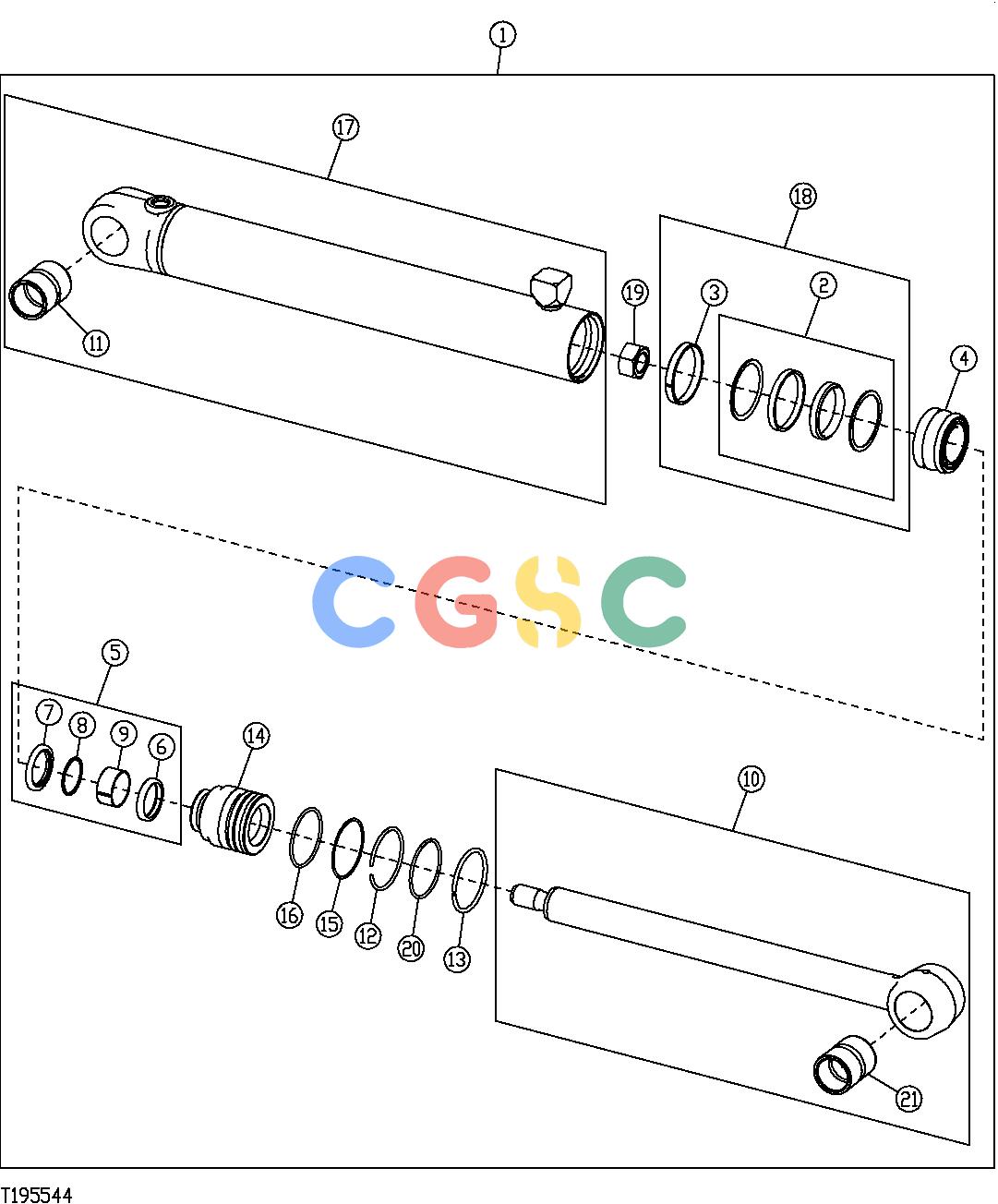

Pos.	Part No	Qty	Parts name	Comments
1.	........	[1]	Hydraulic Cylinder	(AH211112 NLA) (SUB (1) AH227132 AND (2) T225757) COMPONENTS ON SEPARATE PAGE
2.	RE20345	[1]	Seal
3.	R81777	[1]	Wear Ring
4.	R86084	[1]	Piston
5.	AH149813	[1]	Hydraulic Cylinder Kit
6.	AH146556	[1]	Seal
7.	AH146560	[1]	Seal
8.	H152202	[1]	Seal
9.	H157898	[1]	Wear Ring
10.	AH151585	[1]	Hydraulic Cylinder Rod
11.	R89940	[1]	Bushing	44.730 X 55.080 X 66 MM (1.761" X 2.169" X 2.598")
12.	H170216	[1]	Snap Ring
13.	H180787	[1]	Snap Ring
14.	H210731	[1]	Hydr. Cylinder Rod Guide
15.	R81864	[1]	Back-Up Ring	74.430 X 79.850 X 1.270 MM (2.930" X 3.144" X 0.050")
16.	T12582	[1]	O-Ring	72.619 X 3.531 MM (2-55/64" X 0.139")
17.	........	[1]	Hydraulic Cylinder	(AH211113 NLA) (SUB (1) AH227132, (2) R89940, AND T232616) COMPONENTS ON SEPARATE PAGE
18.	AH212091	[1]	Hydraulic Cylinder Kit
19.	H170538	[1]	Nut	M27
20.	T12582	[1]	O-Ring	72.619 X 3.531 MM (2-55/64" X 0.139")
21.	R89940	[1]	Bushing	44.730 X 55.080 X 66 MM (1.761" X 2.169" X 2.598")
