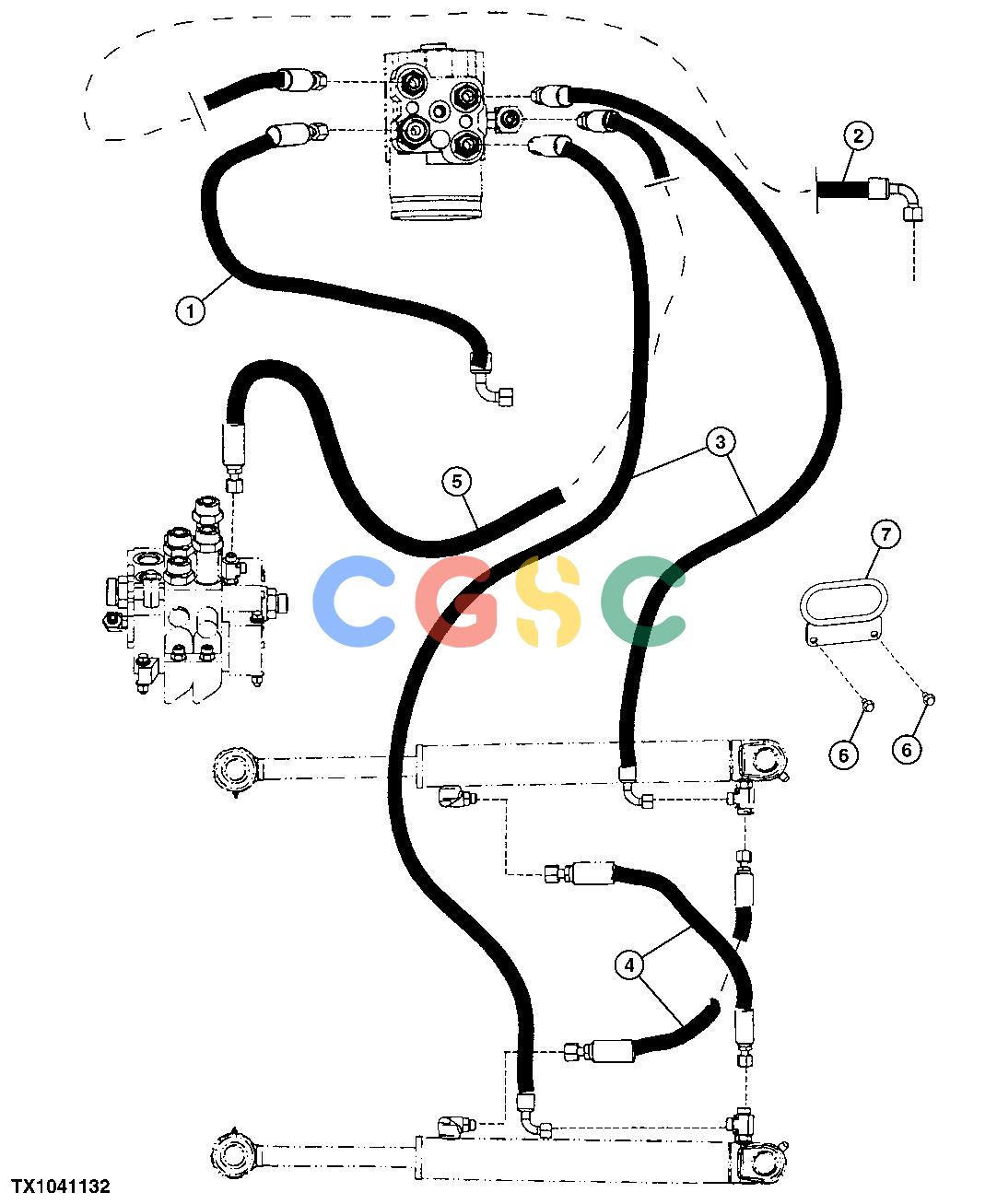

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | AT228193 | [1] | Hydraulic Hose - Fabricate | 30.1752" X 662 MM (26") X 30.1752" |
| 2. | AT223963 | [1] | Hydraulic Hose - Fabricate | 13/16" X 1320 MM (52") X 1" |
| 3. | AT203182 | [2] | Hydraulic Hose - Fabricate | 1" X 1701 MM (67") X 1" |
| 4. | AT208694 | [2] | Hydraulic Hose - Fabricate | 13/16" X 1320 MM (52") X 1" |
| 5. | AT314734 | [1] | Hydraulic Hose - Fabricate | 9/16" X 2000 MM (78-3/4") X 9/16" |
| 6. | 19M7785 | [2] | Screw | M10 X 25 |
| 7. | AT323101 | [1] | Bracket |
