约翰迪尔零件查询RE160302 - AXLE Brake Valve and PedalsEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 850 次

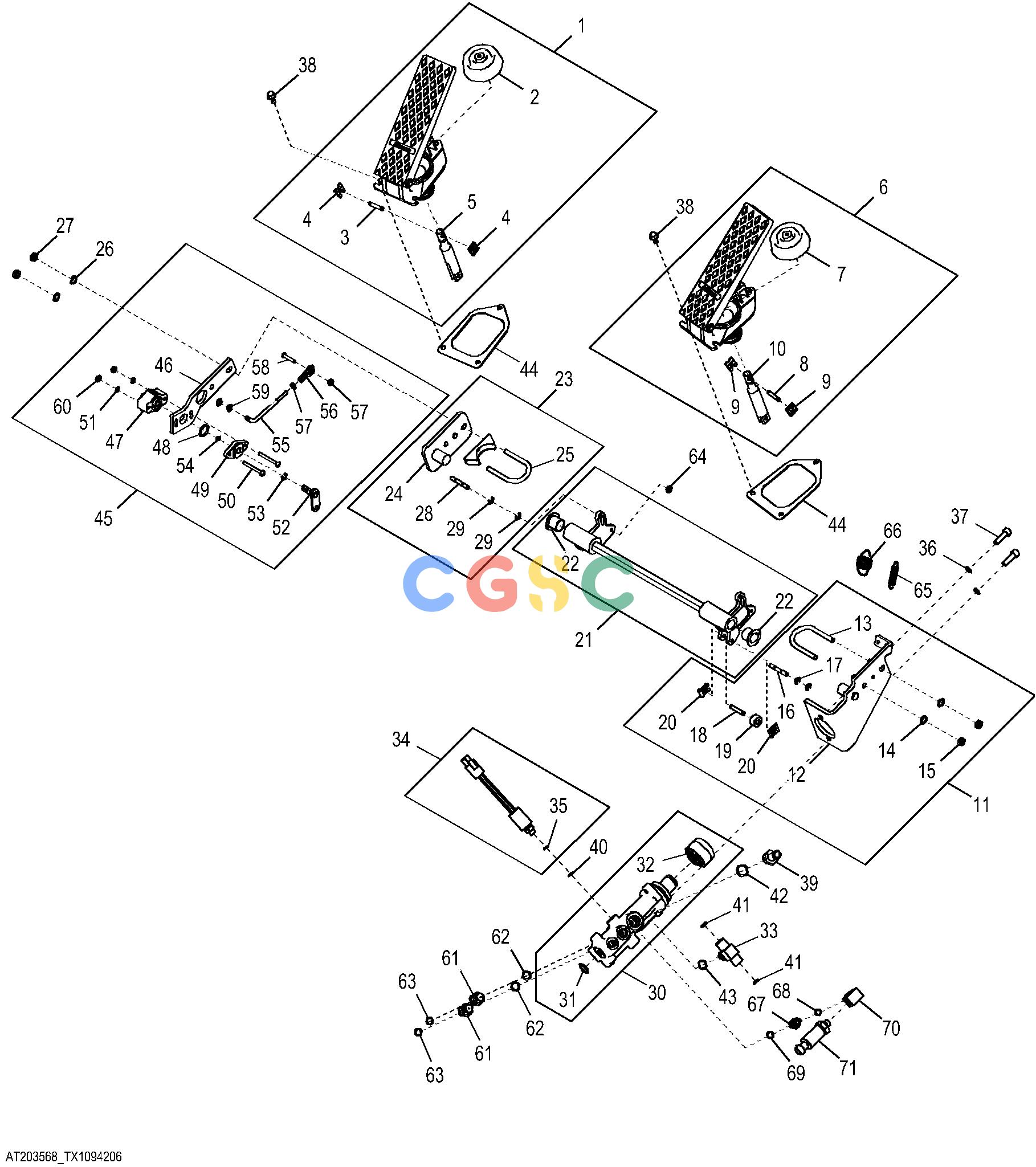

Pos.	Part No	Qty	Parts name	Comments
1.	AT323792	[1]	Pedal
2.	T174634	[1]	Boot
3.	T157258	[1]	Pin
4.	T157212	[2]	Clip
5.	AT208163	[1]	Push Rod
6.	AT323790	[1]	Pedal	(SUB FOR AT203457)
7.	T174634	[1]	Boot
8.	T157258	[1]	Pin
9.	T157212	[2]	Clip
10.	AT208088	[1]	Push Rod
11.	AT208086	[1]	Hose Kit
12.	........	[1]	Support	AT314266 NLA, ORDER AT208086, SUB FOR AT208166
13.	T157220	[1]	Clamp
14.	T170181	[2]	Lock Washer
15.	R53317	[2]	Lock Nut	7.925 MM (5/16")
16.	T157211	[1]	Pin
17.	T170180	[2]	Snap Ring
18.	T157257	[1]	Pin
19.	T175236	[1]	Roller
20.	T157212	[2]	Clip
21.	AT208089	[1]	Rocker Arm
22.	T157223	[2]	Bearing
23.	AT208085	[1]	Bracket Kit
24.	AT314267	[1]	Support	(SUB FOR AT208167)
25.	T157220	[1]	Clamp
26.	T170181	[2]	Lock Washer
27.	R53317	[2]	Lock Nut	7.925 MM (5/16")
28.	T157211	[1]	Pin
29.	T170180	[2]	Snap Ring
30.	AT331208	[1]	Flow Control Hyd. Valve	BRAKE VALVE (SUB FOR AT210229)
31.	R26375	[1]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
32.	AT325225	[1]	Seal Kit
33.	AT207529	[1]	Check Valve
34.	AT223535	[1]	Pressure Switch
35.	R26287	[1]	O-Ring	7.645 X 1.626 MM (0.301" X 0.064")
36.	24M7313	[2]	Washer	8.100 X 12 X 1.200 MM
37.	19M7657	[2]	Screw	M8 X 25
38.	M113243	[6]	Screw	M6 X 16
39.	T38282	[1]	Hose Fitting
40.	R26287	[1]	O-Ring	7.645 X 1.626 MM (0.301" X 0.064")
41.	T77613	[2]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
42.	R26375	[1]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
43.	R26448	[1]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
44.	T172927	[2]	Gasket
45.	AT210291	[1]	Clutch Kit
46.	T172274	[1]	Support
47.	RE261356	[1]	Sensor	(SUB FOR RE35704 OR RE69297)
48.	P48347	[2]	O-Ring	17.120 X 2.616 MM (0.674" X 0.103")
49.	R86457	[1]	Support
50.	21H1390	[2]	Screw	0.190" X 1-3/4"
51.	12M7060	[4]	Washer	5.300 MM
52.	RE24468	[1]	Shaft
53.	R72653	[1]	Snap Ring
54.	A4365R	[1]	O-Ring	6.071 X 1.778 MM (0.239" X 0.070")
55.	AT210877	[1]	Linkage
56.	AH108055	[1]	Link End
57.	14H631	[2]	Nut	0.190"
58.	21H985	[1]	Screw	0.190" X 1"
59.	R72654	[2]	Snap Ring
60.	14H631	[2]	Nut	0.190"
61.	AT181313	[2]	Check Valve	(INCLUDES R26448 AND T77613)
62.	R26448	[1]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
63.	T77613	[1]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
64.	N203905	[1]	Lock Nut	4.826 MM (0.190")
65.	T176108	[1]	Spring
66.	T176111	[1]	Spring
67.	38H1159	[1]	Adapter Fitting
68.	T77814	[1]	O-Ring	7.650 X 1.780 MM (0.301" X 0.070")
69.	R28782	[1]	O-Ring	8.915 X 1.829 MM (0.351" X 0.072")
70.	AT326970	[1]	Fitting
71.	AT206721	[1]	Switch	BRAKE PRESSURE NOT AS ILLUSTRATED (INCLUDES R28782)
	R28782	[1]	O-Ring	8.915 X 1.829 MM (0.351" X 0.072") NOT ILLUSTRATED
	AT322982	[1]	Transducer	BRAKE PRESSURE
