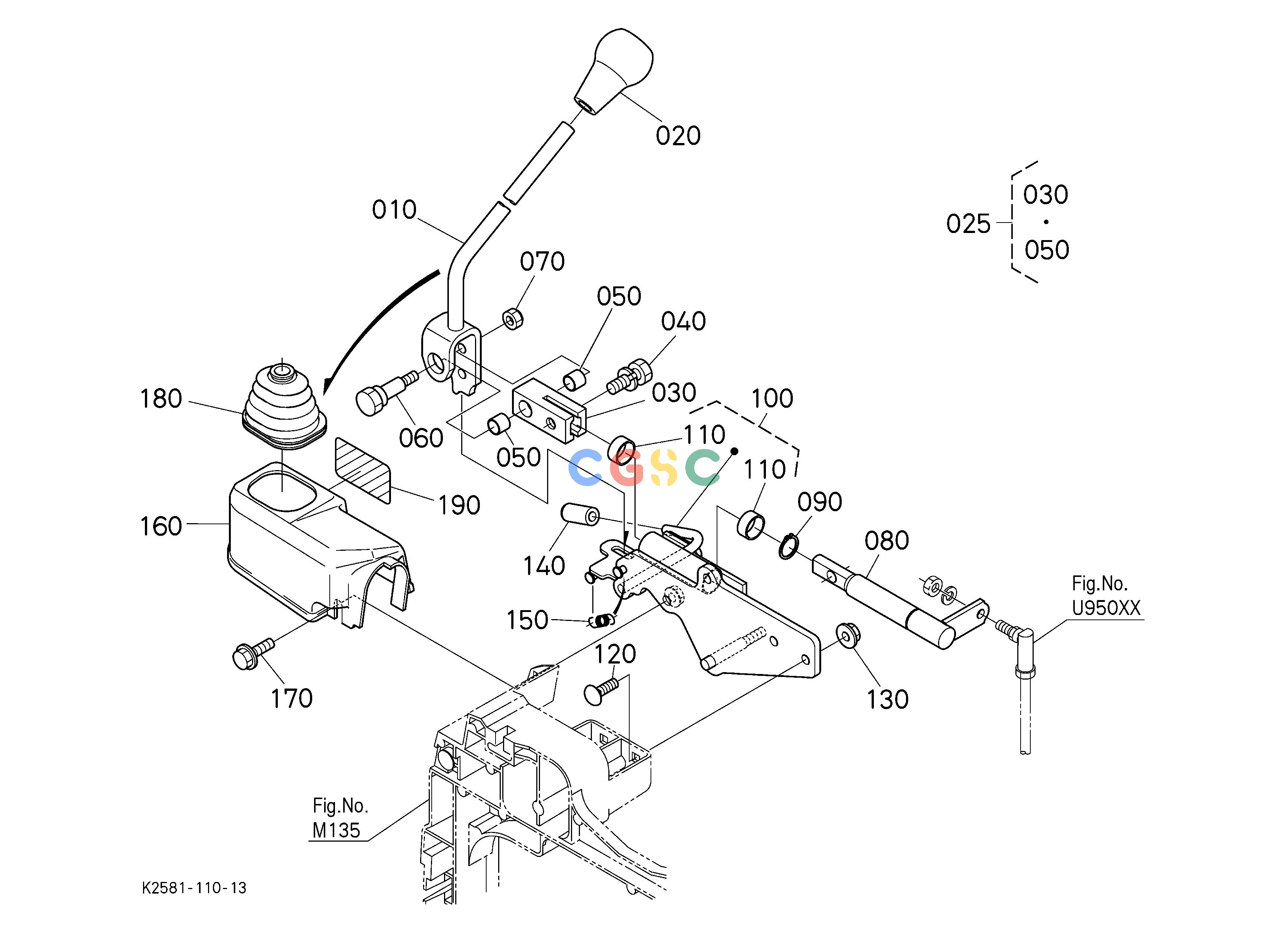

久保田零件查询U95005 FRONT CONTROL VALVE KIT(LEVER) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
802 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
7J61262212
|
[1] |
LEVER CONTROL
|
0.0000(lbs); 0.000
|
| 010. |
7J61262213
|
[1] |
LEVER CONTROL
|
0.0000(lbs); 0.000
|
| 020. |
7J61262240
|
[1] |
GRIP LEVER
|
0.0000(lbs); 0.000
|
| 020. |
7J61262242
|
[1] |
GRIP LEVER
|
0.0000(lbs); 0.000
|
| 025. |
7J61296260
|
[1] |
ASSY BLOCK LEVER
|
0.0000(lbs); 0.000
|
| 030. |
7J61262130
|
[1] |
BLOCK LEVER
|
0.0000(lbs); 0.000
|
| 040. |
0113351030
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 050. |
0851101212
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
| 060. |
7J61262230
|
[1] |
BOLT REAMER
|
0.0000(lbs); 0.000
|
| 070. |
0255250080
|
[1] |
NUT LOCK
|
0.0110(lbs); 0.005
|
| 080. |
7J61262250
|
[1] |
LINK
|
0.0000(lbs); 0.000
|
| 090. |
0461200190
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 100. |
7J61296230
|
[1] |
ASSY STAY LEVER
|
0.0000(lbs); 0.000
|
| 100. |
7J61296232
|
[1] |
ASSY STAY LEVER
|
0.0000(lbs); 0.000
|
| 110. |
7J61262170
|
[2] |
BUSH DU
|
0.0000(lbs); 0.000
|
| 120. |
K112291330
|
[3] |
BOLT SHORT SQU.NECK
|
0.0000(lbs); 0.000
|
| 130. |
0275150080
|
[3] |
NUT FLANGE
|
0.0132(lbs); 0.006
|
| 140. |
K121156140
|
[1] |
COVER LEVER
|
0.0176(lbs); 0.008
|
| 150. |
7J61262810
|
[1] |
SPRING
|
0.0000(lbs); 0.000
|
| 160. |
7J61262353
|
[1] |
COVER LEVER
|
0.0000(lbs); 0.000
|
| 170. |
K112291050
|
[1] |
BOLT FLANGE BLACK
|
0.0286(lbs); 0.013
|
| 180. |
7J61262712
|
[1] |
BOOT CONTROL LEVER
|
0.0000(lbs); 0.000
|
| 190. |
7J61262910
|
[1] |
LABEL LOCK
|
0.0000(lbs); 0.000
|
| 190. |
7J61262912
|
[1] |
LABEL LOCK
|
0.0022(lbs); 0.001
|
