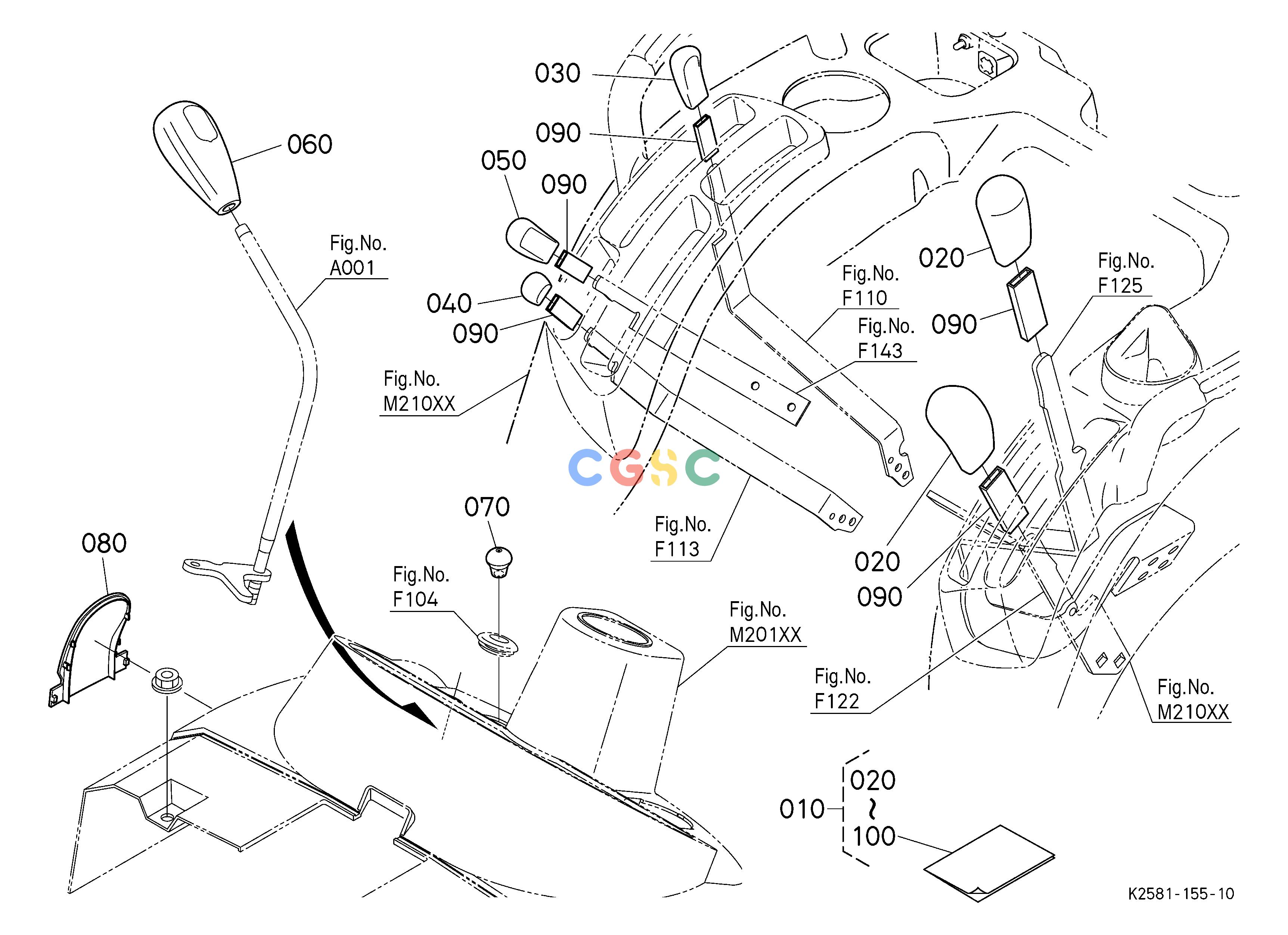

久保田零件查询U97500 GRIP KIT [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
668 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258195570
|
[1] |
KIT GRIP,CUSION
|
0.0000(lbs); 0.000
|
| 020. |
K258142663
|
[2] |
GRIP
|
0.0990(lbs); 0.045
|
| 030. |
K258142744
|
[1] |
GRIP
|
0.0000(lbs); 0.000
|
| 030. |
K318142740
|
[1] |
GRIP
|
0.0000(lbs); 0.000
|
| 040. |
K258142784
|
[1] |
GRIP
|
0.0000(lbs); 0.000
|
| 050. |
K258142823
|
[1] |
GRIP
|
0.0968(lbs); 0.044
|
| 060. |
K258145214
|
[1] |
GRIP,ACCEL.LEVER
|
0.1210(lbs); 0.055
|
| 070. |
K258143560
|
[1] |
GRIP
|
0.0000(lbs); 0.000
|
| 080. |
K258157914
|
[1] |
COVER,PANEL MOWER
|
0.0440(lbs); 0.020
|
| 090. |
K258142632
|
[5] |
CUSHION
|
0.0110(lbs); 0.005
|
| 100. |
99999-99999
|
[1] |
MANUAL,INSTRUCTION
|
0.0000(lbs); 0.000
|
