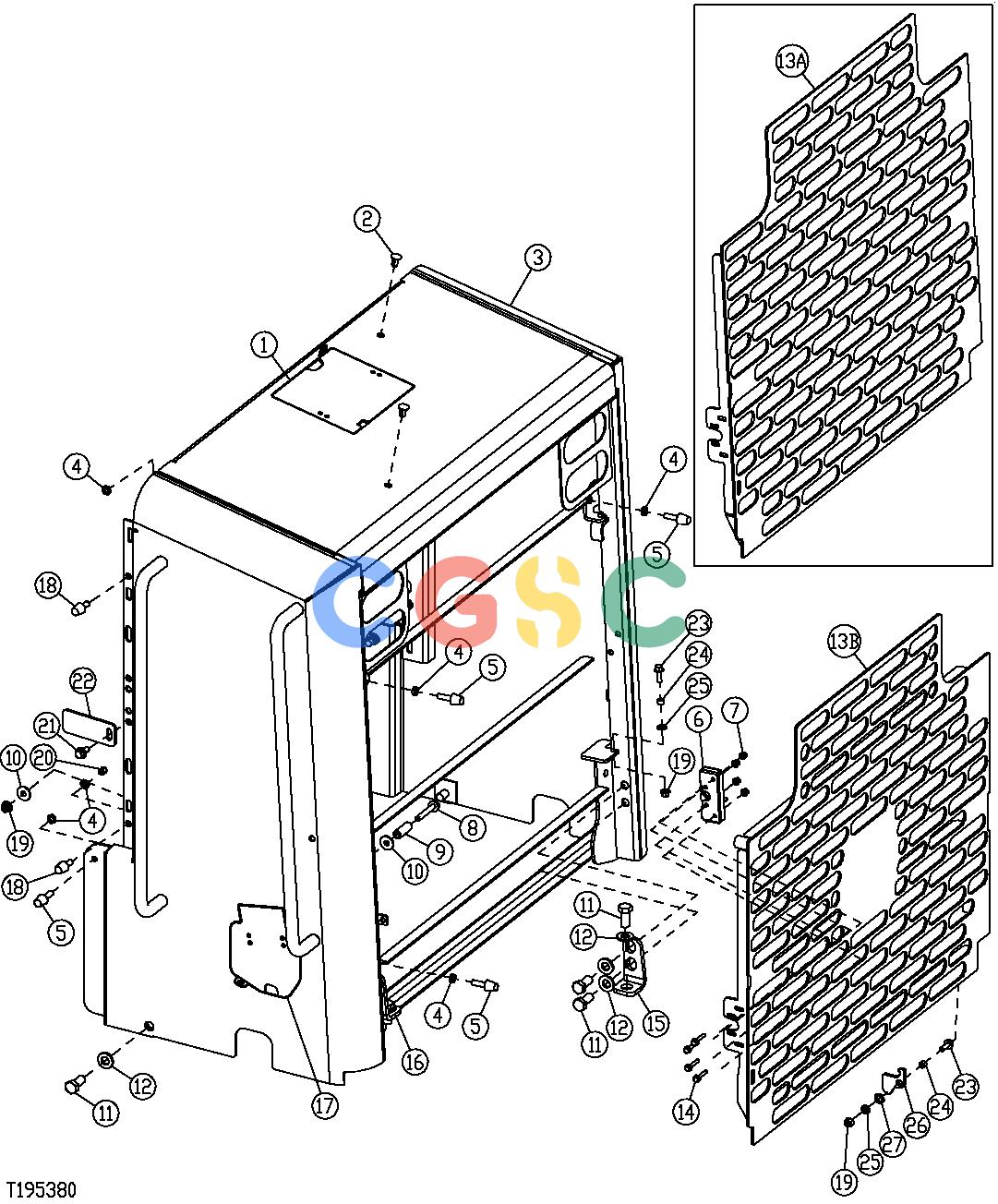

约翰迪尔零件查询RE160302 - AXLE Grille and Grille HousingEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
668 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT220994
|
[1] |
Cover
|
|
| 2. |
T174271
|
[2] |
Plug
|
|
| 3. |
AT225182
|
[1] |
Housing
|
|
| 4. |
14M7152
|
[8] |
Nut
|
|
| 5. |
AT219974
|
[5] |
Bumper
|
|
| 6. |
AT220015
|
[1] |
Latch
|
|
| 7. |
14M7397
|
[4] |
Lock Nut
|
|
| 8. |
19M7808
|
[1] |
Screw
|
|
| 9. |
T101975
|
[1] |
Bushing
|
|
| 10. |
24M7296
|
[2] |
Washer
|
|
| 11. |
19M8035
|
[8] |
Cap Screw
|
|
| 12. |
24M7241
|
[8] |
Washer
|
|
| 13A. |
AT223988
|
[1] |
Door
|
|
| 13B. |
AT305777
|
[1] |
Door
|
|
| 14. |
19M7833
|
[4] |
Screw
|
|
| 15. |
T181529
|
[1] |
Bracket
|
|
| 16. |
T181528
|
[1] |
Bracket
|
|
| 17. |
AT220993
|
[1] |
Door
|
|
| 18. |
AT219974
|
[4] |
Bumper
|
|
| 19. |
14M7296
|
[3] |
Flange Nut
|
|
| 20. |
T101955
|
[2] |
Bumper
|
|
| 21. |
19M7784
|
[2] |
Screw
|
|
| 22. |
T168135
|
[2] |
Strap
|
|
| 23. |
19M7786
|
[2] |
Screw
|
|
| 24. |
Z32264
|
[2] |
Spacer
|
|
| 25. |
24M7239
|
[2] |
Washer
|
|
| 26. |
T180661
|
[1] |
Strap
|
|
| 27. |
24M7338
|
[1] |
Washer
|
|
