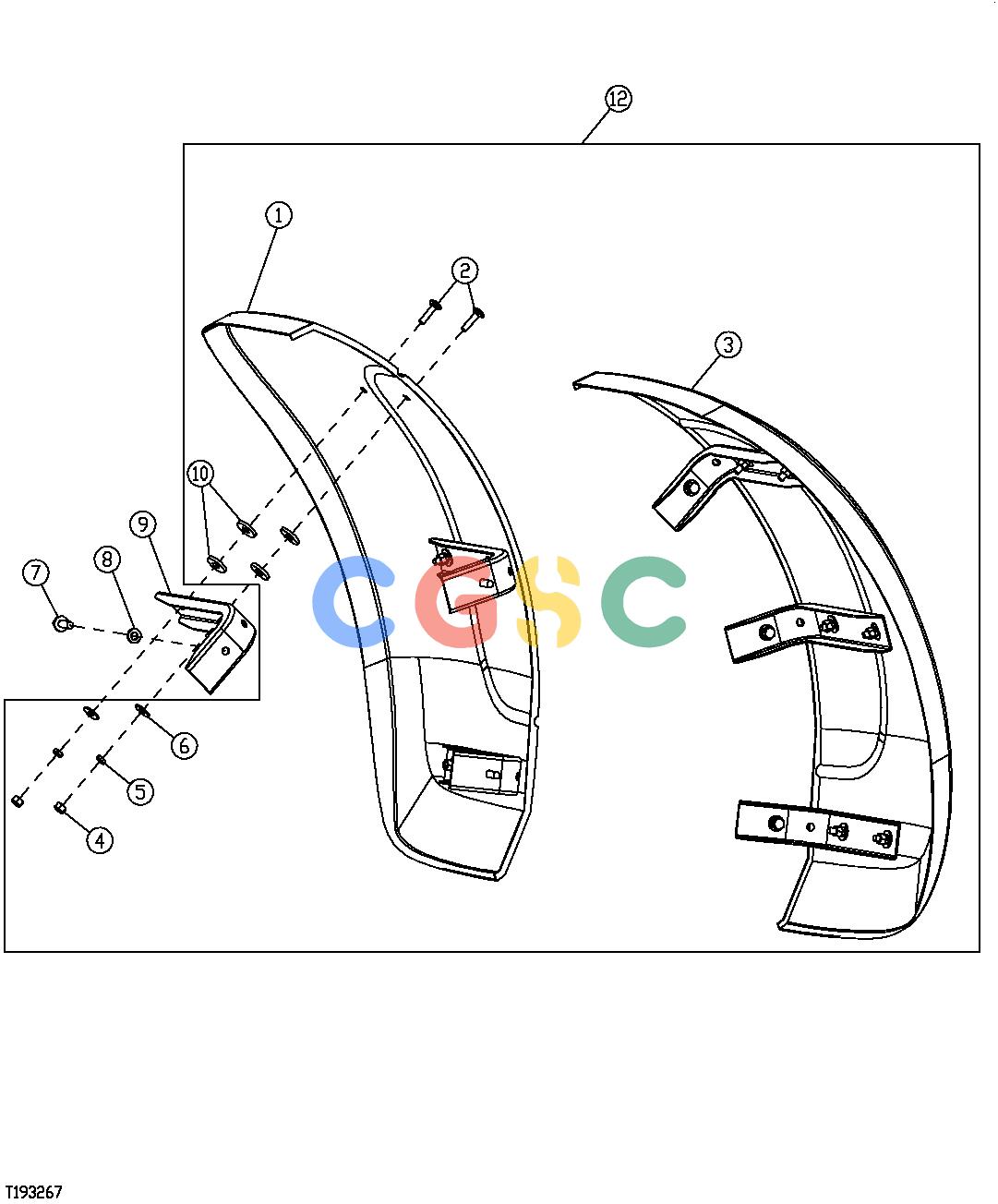

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | ........ | [1] | Fender | YELLOW (RH) (SUB (1) T170595) |
| 1. | T170595 | [1] | Fender | GRAY (RH) |
| 1. | ........ | [1] | Fender | YELLOW (RH) (T209177 NLA) |
| 2. | 03M7195 | [12] | Bolt | M10 X 45 |
| 3. | ........ | [1] | Fender | YELLOW (LH) (SUB (1) T169118) |
| 3. | T169118 | [1] | Fender | GRAY (LH) |
| 3. | ........ | [1] | Fender | YELLOW (LH) (T209174 NLA) |
| 4. | 14M7167 | [12] | Lock Nut | M10 |
| 5. | 14M7152 | [12] | Nut | M10 |
| 6. | 24M7296 | [12] | Washer | 10.500 X 30 X 2.500 MM |
| 7. | 19M7790 | [6] | Screw | M12 X 35 |
| 8. | 24M7240 | [6] | Washer | 13 X 25 X 3 MM |
| 9. | T178368 | [6] | Support | |
| 10. | T22381 | [24] | Washer | |
| 11. | T174271 | [12] | Plug | FOR USE WITHOUT FENDERS NOT ILLUSTRATED |
| 12. | ........ | [1] | Kit | (AT303753 NLA) |
