约翰迪尔零件查询RE160302 - AXLE STEERING AND LOADER HYDRAULIC PUMP CONTROL VALVESEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 704 次

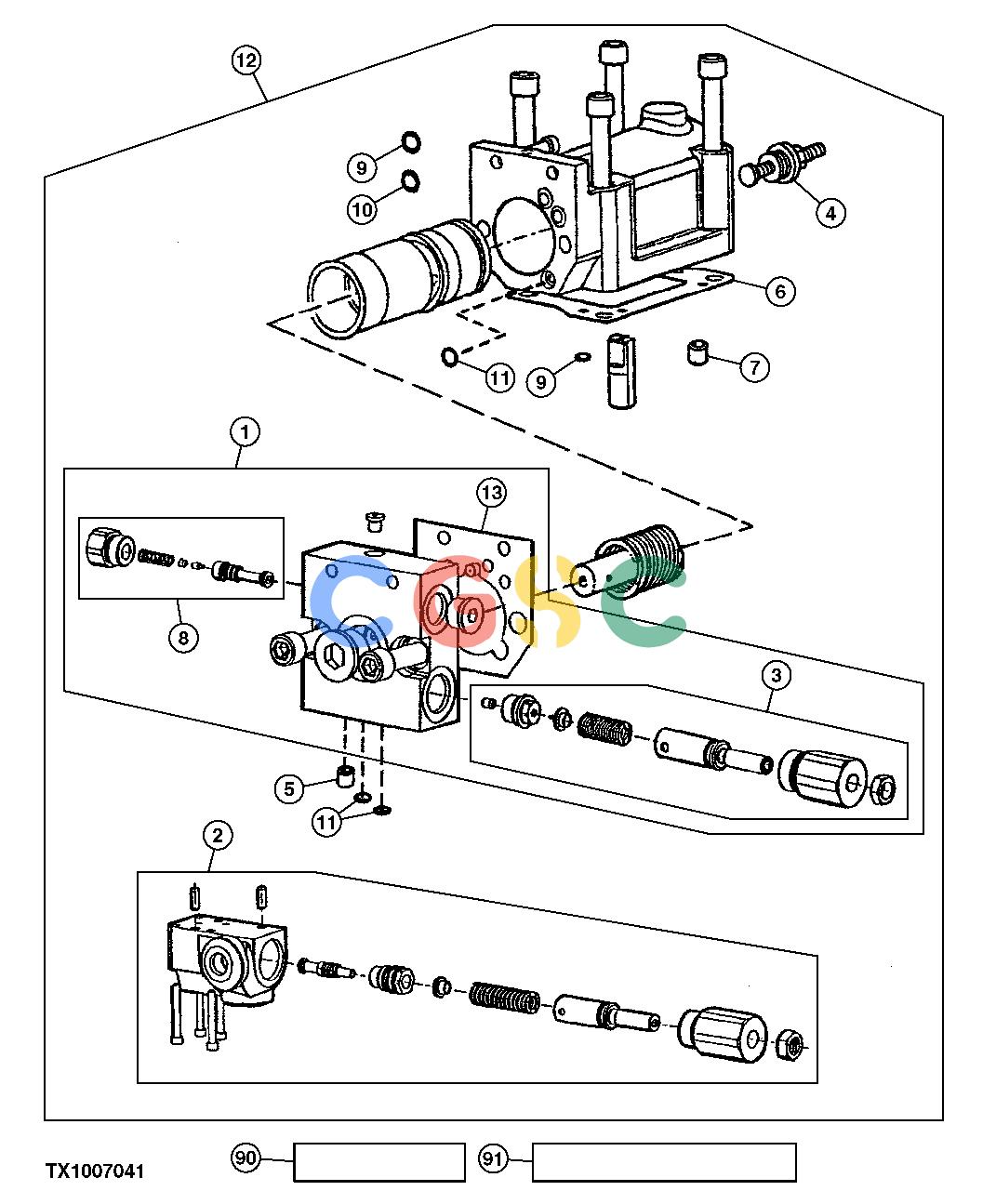

Pos.	Part No	Qty	Parts name	Comments
1.	........	[1]	Cap	PUMP CONTROL END CAP INCLUDES ALL SEALS, GASKETS AND O-RINGS NEEDED FOR INSTALLATION (SUB AT209879 AND AT186257) (AT211040 NLA)
1.	T118681	[1]	O-Ring	CENTER OF PUMP CONTROL END CAP NOT ILLUSTRATED
2.	AT209878	[1]	Flow Control Hyd. Valve	LOAD SENSING VALVE ASSEMBLY INCLUDES ALL SEALS, GASKETS AND O-RINGS NEEDED FOR INSTALLATION
3.	AT209879	[1]	Hyd Actuated Control Valve	LOAD SENSING PLUS VALVE ASSEMBLY INCLUDES ALL SEALS, GASKETS AND O-RINGS NEEDED FOR INSTALLATION
4.	AT209881	[1]	Stop	STROKE LIMITER
5.	T166400	[1]	Orifice
6.	T178707	[1]	Gasket
7.	T178706	[1]	Orifice
8.	AT186257	[1]	Spool Kit	4-WAY SPOOL
9.	T166274	[2]	O-Ring
10.	T40308	[1]	O-Ring
11.	T166275	[3]	O-Ring
12.	AT211039	[1]	Pump Kit	PUMP CONTROL
13.	........	[1]	Gasket	(SUB AT208638)
90.	AT208633	[1]	Seal Kit	PUMP INCLUDES GASKET AND O -RING BETWEEN PUMP AND CONTROL ASSEMBLY
91.	AT208638	[1]	Seal Kit	CONTROL VALVE INCLUDES GASKET AND O -RING BETWEEN PUMP AND CONTROL ASSEMBLY
