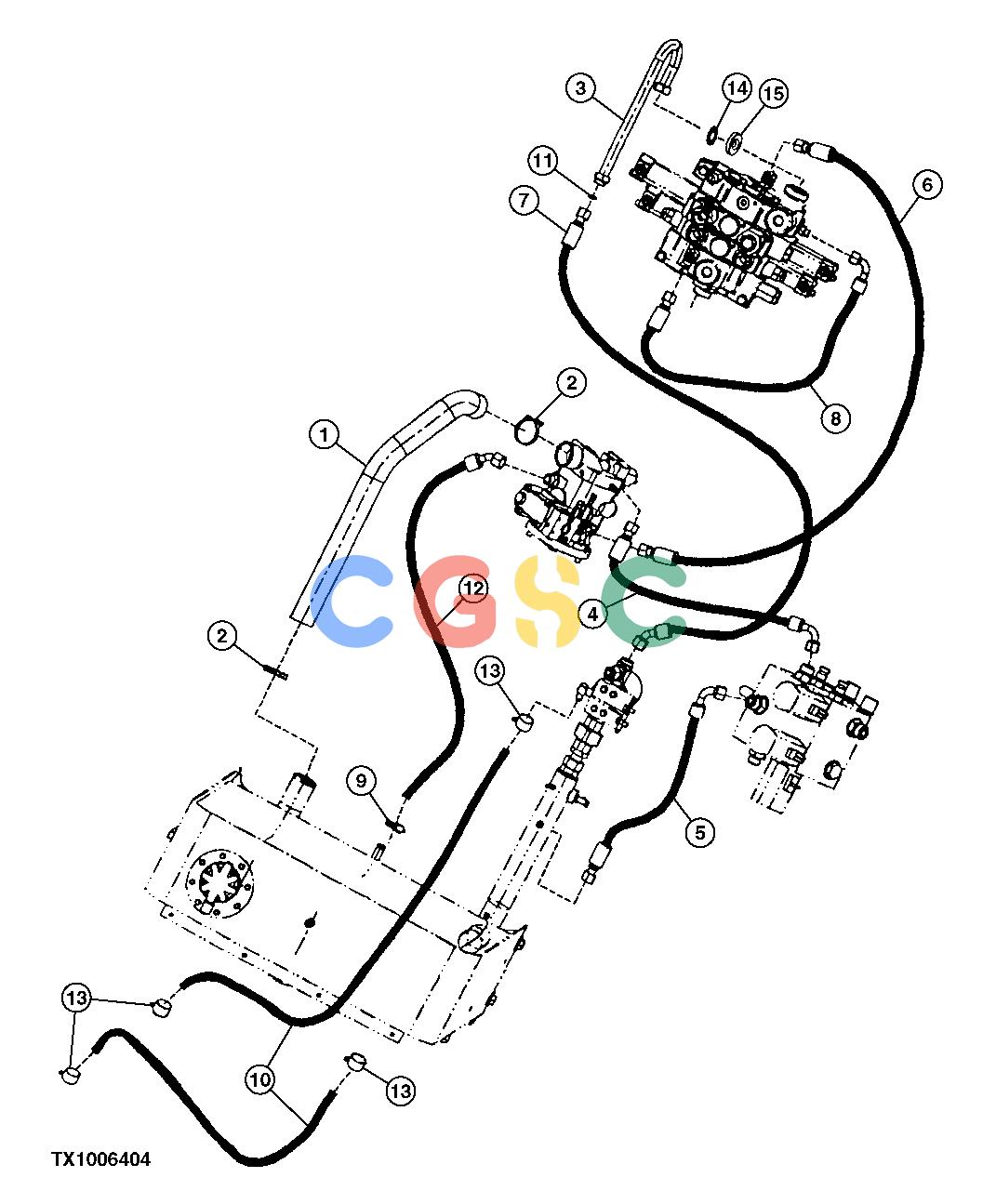

约翰迪尔零件查询RE160302 - AXLE Main Hydraulic LinesEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
976 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT209112
|
[1] |
Hose
|
|
| 2. |
RE52702
|
[2] |
Clamp
|
|
| 3. |
AT209432
|
[1] |
Oil Line
|
|
| 4. |
AT166149
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 4. |
AT81931
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 5. |
AT116449
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 6. |
AT169939
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 7. |
AT226087
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 8. |
AT346015
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 9. |
AR21839
|
[1] |
Clamp
|
|
| 10. |
........
|
[2] |
Hydraulic Hose
|
|
| 11. |
T78612
|
[1] |
O-Ring
|
|
| 12. |
AT223173
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 12. |
AT342334
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 13. |
TY22466
|
[4] |
Clamp
|
|
| 14. |
T78784
|
[1] |
O-Ring
|
|
| 15. |
T177442
|
[1] |
Orifice
|
|
