约翰迪尔零件查询RE160302 - AXLE JDLink™ Ultimate (616849 - )EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 855 次

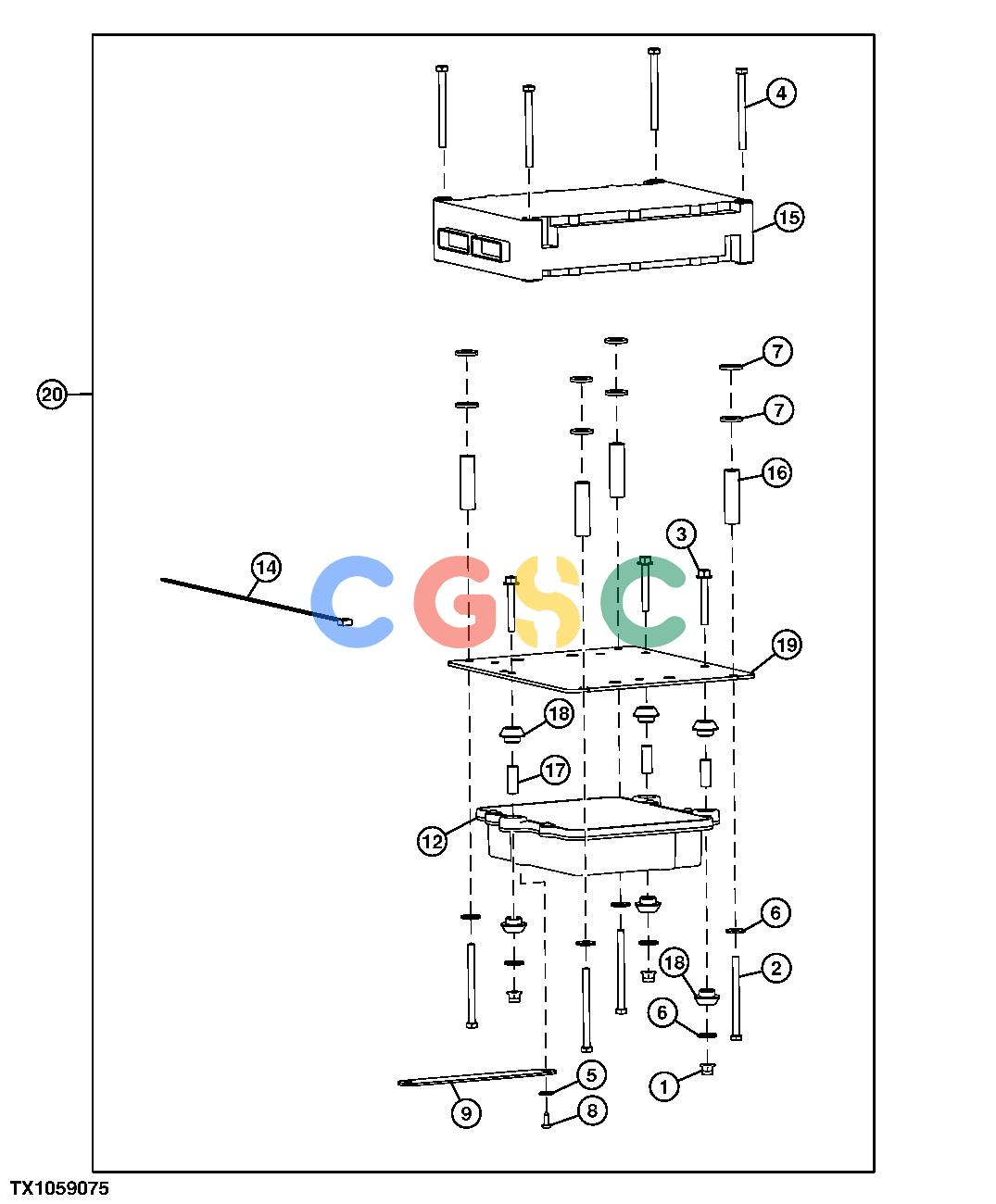

Pos.	Part No	Qty	Parts name	Comments
1.	14M7397	[3]	Lock Nut	M6
2.	19M8786	[4]	Screw	M6 X 70
2.	19M7763	[4]	Cap Screw	M6 X 75
3.	19M8321	[3]	Screw	M6 X 45
4.	19M8786	[4]	Screw	M6 X 70
5.	24H1283	[1]	Washer	7/32" X 1/2" X 0.049"
6.	24M7139	[7]	Washer	6.400 X 18 X 1.600 MM
7.	24M7239	[8]	Washer	10.700 X 21 X 2.500 MM
8.	37H212	[1]	Screw
9.	AT209965	[1]	Ground Cable	150 MM (5-29/32")
10.	AT344868	[1]	Antenna	NOT ILLUSTRATED
11.	AT344872	[1]	Wiring Harness	GTT BOX NOT ILLUSTRATED
12.	AT336266	[1]	Control Console	NLA, ORDER AT347687
12.	AT347687	[1]	Box	REMAN FOR AT336266 GLOBALTRACS™ (GTT)
13.	AT359710	[1]	Wiring Harness	MIG NOT ILLUSTRATED
14.	H77698	[2]	Tie Band
15.	PFA10255	[1]	Electronic Control Unit	MACHINE INFORMATION GATEWAY (MIG) SUB FOR PF81438 AND PF81226
16.	T167775	[4]	Bushing	9.220 X 13.700 X 50.500 MM (0.363" X 0.539" X 1.988")
17.	T234392	[3]	Spacer
18.	T234394	[6]	Grommet
19.	T234955	[1]	Bracket
20.	........	[1]	Kit	JDLINK™ ULTIMATE ORDER THROUGH PRODUCT CONFIGURATOR
