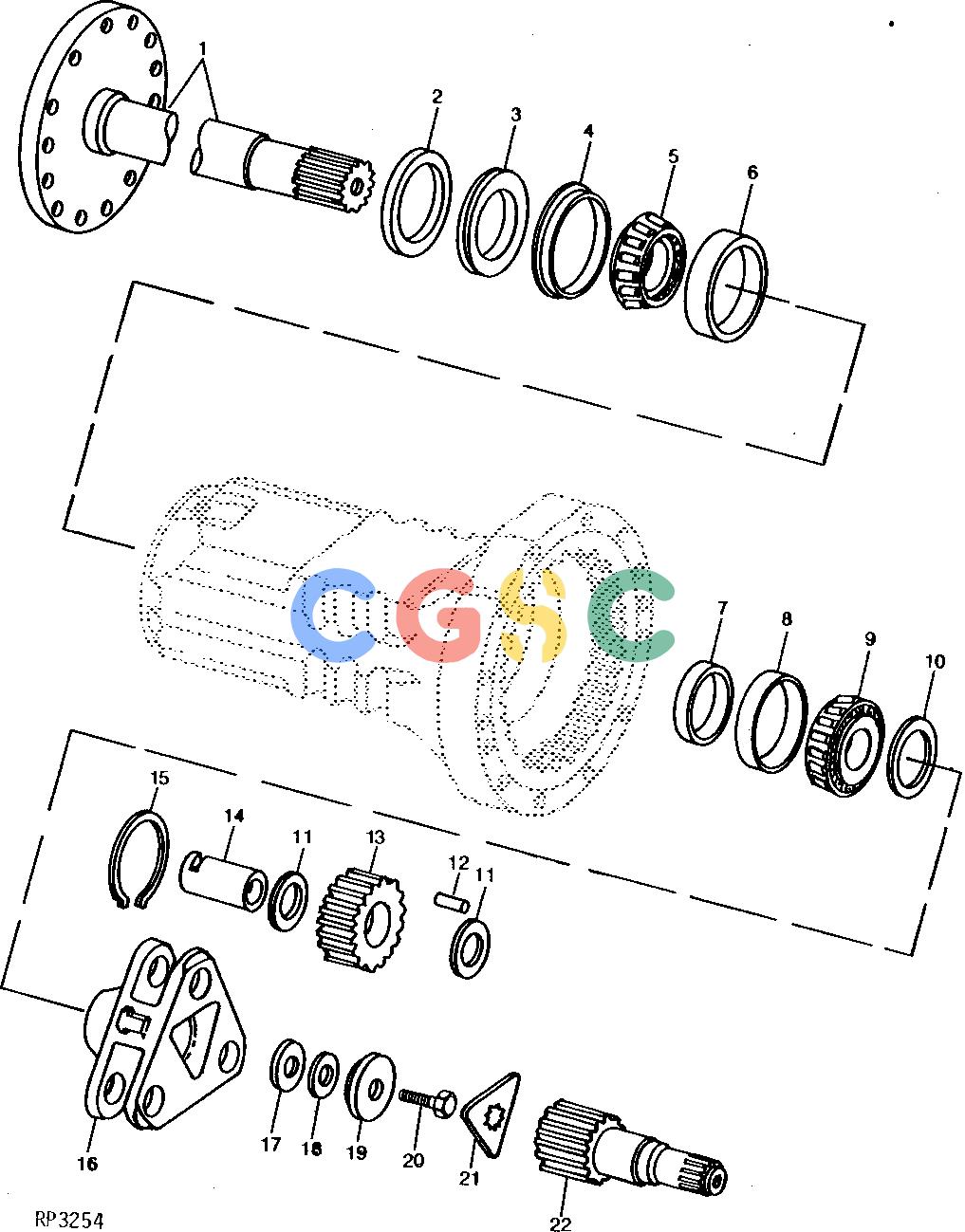

约翰迪尔零件查询ROLLIGIN - AXLE FRONT PLANETARY AND AXLE [01D16]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R73905
|
[1] |
Spindle
|
|
| 2. |
R73906
|
[1] |
Spacer
|
|
| 3. |
AR52260
|
[1] |
Seal
|
|
| 4. |
R57269
|
[1] |
Oil Cup
|
|
| 5. |
JD8191
|
[1] |
Bearing Cone
|
|
| 6. |
JD8214
|
[1] |
Bearing Cup
|
|
| 7. |
AR42005
|
[1] |
Seal
|
|
| 8. |
JD8207
|
[1] |
Bearing Cup
|
|
| 9. |
JD8152
|
[1] |
Bearing Cone
|
|
| 10. |
F2253R
|
[1] |
Shim
|
|
| 11. |
R33022
|
[6] |
Thrust Washer
|
|
| 12. |
R33028
|
[99] |
Needle Roller
|
|
| 13. |
R33032
|
[3] |
Pinion
|
|
| 14. |
R63112
|
[3] |
Pinion Shaft
|
|
| 15. |
R33033
|
[1] |
Snap Ring
|
|
| 16. |
R69445
|
[1] |
Planet Pinion Carrier
|
|
| 17. |
R61461
|
[AR] |
Shim
|
|
| 17. |
R59439
|
[AR] |
Shim
|
|
| 17. |
R59440
|
[AR] |
Shim
|
|
| 18. |
F2380R
|
[AR] |
Washer
|
|
| 19. |
R68758
|
[1] |
Spacer
|
|
| 20. |
R69210
|
[1] |
Cap Screw
|
|
| 21. |
R26026
|
[1] |
Plate
|
|
| 22. |
R42868
|
[1] |
Shaft
|
|
