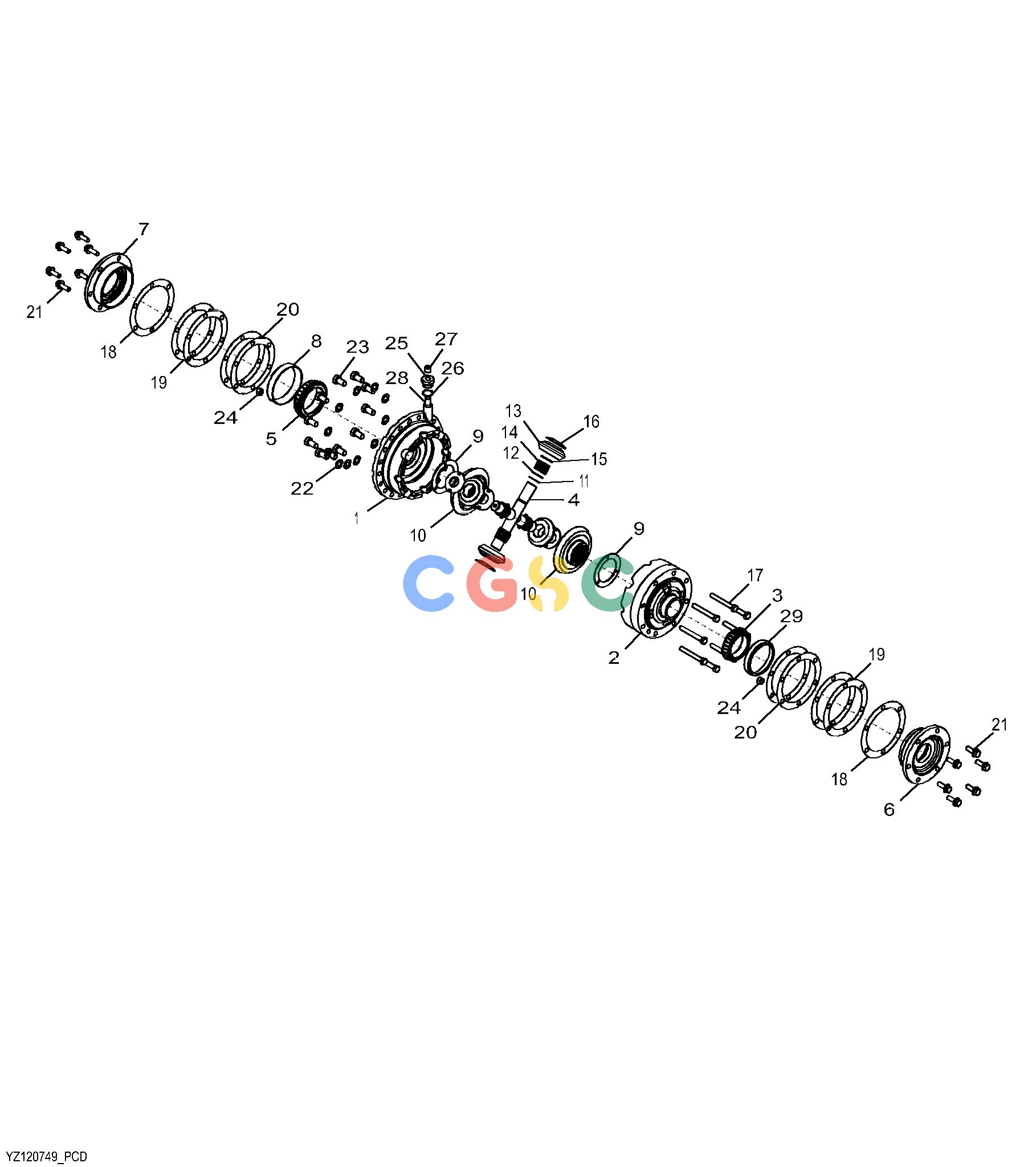

约翰迪尔零件查询624J - LOADER, FOUR-WHEEL DRIVE YZ120749 Block Standard Differential, 4 PinionEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
242 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
YZ120655
|
[1] |
Housing
|
|
| 2. |
R73008
|
[1] |
Cover
|
|
| 3. |
JD8159
|
[1] |
Bearing Cone
|
|
| 4. |
R70111
|
[2] |
Pinion Shaft
|
|
| 5. |
JD9055
|
[1] |
Bearing Cone
|
|
| 6. |
AR52005
|
[1] |
Bearing Housing W/O Bearing
|
|
| 7. |
R59419
|
[1] |
Bearing Housing W/O Bearing
|
|
| 8. |
YZ122246
|
[1] |
Bearing Cup
|
|
| 9. |
R93623
|
[2] |
Thrust Washer
|
|
| 10. |
YZ121133
|
[2] |
Bevel Gear
|
|
| 11. |
YZ120471
|
[4] |
Ring
|
|
| 12. |
R70113
|
[4] |
Thrust Washer
|
|
| 13. |
R134726
|
[1] |
Pinion
|
|
| 14. |
R70115
|
[26] |
Needle Roller
|
|
| 15. |
R70112
|
[4] |
Thrust Washer
|
|
| 16. |
R59460
|
[5] |
Thrust Washer
|
|
| 17. |
R115439
|
[8] |
Cap Screw
|
|
| 18. |
R46323
|
[2] |
Shim
|
|
| 19. |
R46324
|
[4] |
Shim
|
|
| 20. |
R46325
|
[4] |
Shim
|
|
| 21. |
R120194
|
[12] |
Cap Screw
|
|
| 22. |
R85226
|
[20] |
Washer
|
|
| 23. |
R135514
|
[20] |
Cap Screw
|
|
| 24. |
14M7295
|
[2] |
Nut
|
|
| 25. |
R112210
|
[1] |
Adapter Fitting
|
|
| 26. |
U17409
|
[1] |
O-Ring
|
|
| 27. |
R116373
|
[1] |
Pipe Plug
|
|
| 28. |
R132574
|
[1] |
Structural Tubing
|
|
| 29. |
YZ122231
|
[1] |
Bearing Cup
|
|
