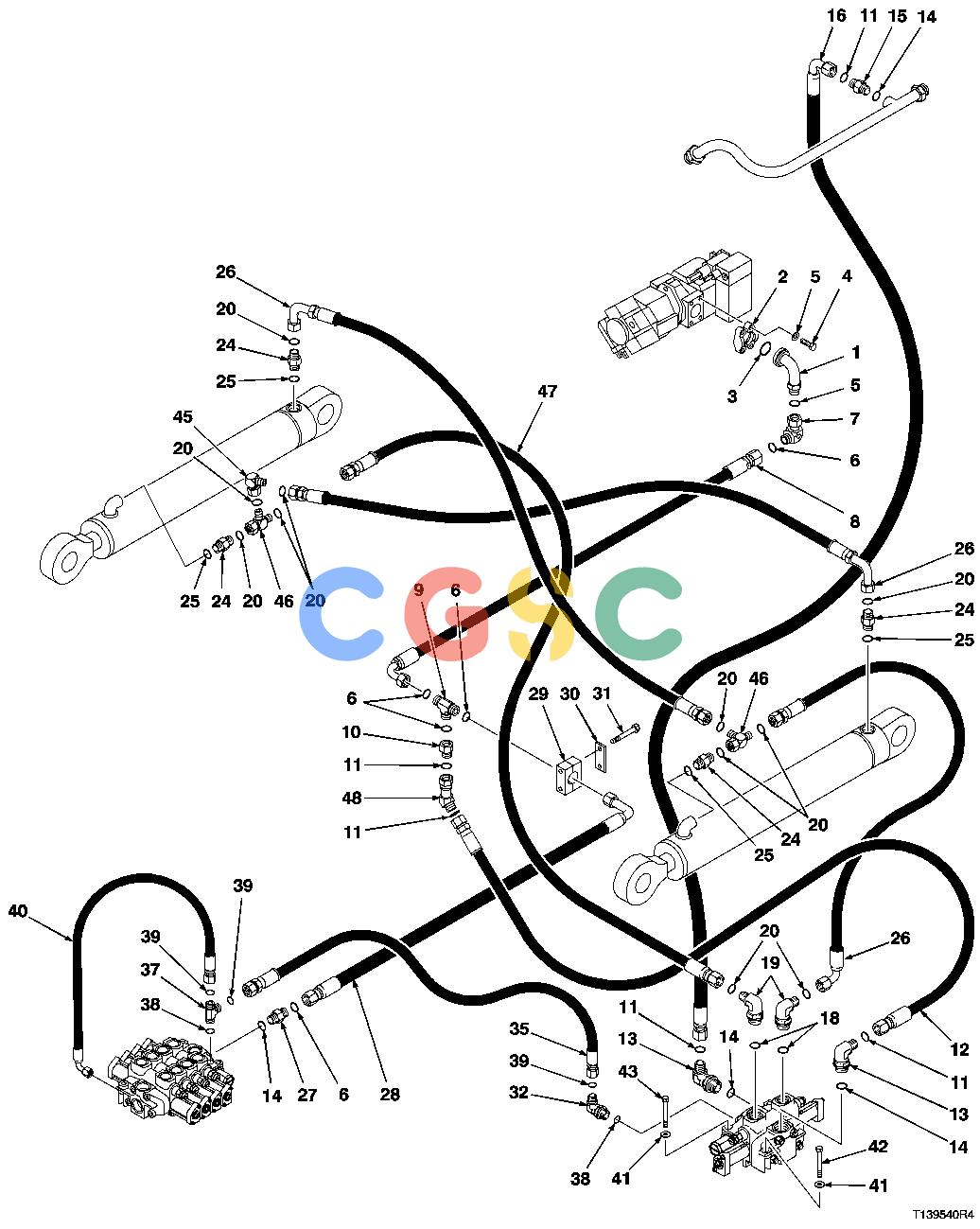

约翰迪尔零件查询1200 - AXLE HOSES AND FITTINGS, LEVER STEERING (SAW)EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询1200 - AXLE HOSES AND FITTINGS, LEVER STEERING (SAW)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 530 次

Pos.	Part No	Qty	Parts name	Comments
1.	AT144126	[1]	Fitting	643H/843H
1.	AT435922	[1]	Oil Tube	643H/843H, SUB FOR 700244200, AT357305 OR AT428858
1.	AT144126	[1]	Fitting	740/840
1.	AT435922	[1]	Oil Tube	740/840, SUB FOR 700244200, AT357305 OR AT428858
2.	AT131685	[2]	Flange Fitting	SUB FOR T72217, 643H/843H
2.	H61354	[2]	Flange Fitting	SUB FOR 810563900, 643H/843H
2.	AT131685	[2]	Flange Fitting	SUB FOR T72217, 740/840
2.	H61354	[2]	Flange Fitting	SUB FOR 810563900, 740/840
3.	T78393	[1]	O-Ring	37.694 X 3.531 MM (1-31/64" X 0.139") 643H/843H
3.	T78313	[1]	O-Ring	SUB FOR 810574200, 643H/843H
3.	T78393	[1]	O-Ring	37.694 X 3.531 MM (1-31/64" X 0.139") 740/840
3.	T78313	[1]	O-Ring	SUB FOR 810574200, 740/840
4.	19H2473	[4]	Cap Screw	1/2" X 1-3/4" 643H/843H
4.	19H3239	[4]	Cap Screw	3/8" X 1-1/4" 643H/843H
4.	19H2473	[4]	Cap Screw	1/2" X 1-3/4" SUB FOR 810080200, 740/840
4.	19H3239	[4]	Cap Screw	3/8" X 1-1/4" SUB FOR 810080200, 740/840
5.	T35860	[4]	Washer	13.614 X 27.280 X 2.413 MM (0.536" X 1.074" X 0.095")
6.	T76938	[6]	O-Ring	23.520 X 1.780 MM (0.926" X 0.070")
7.	38H1098	[1]	Elbow Fitting	643H/843H
7.	F387323	[1]	Fitting	643H/843H
7.	38H1098	[1]	Elbow Fitting	740/840
7.	F387323	[1]	Fitting	740/840
8.	AT261491	[1]	Hydraulic Hose - Fabricate	643H/843H
8.	F124128	[1]	Hydraulic Hose - Fabricate	643H/843H
8.	AT261491	[1]	Hydraulic Hose - Fabricate	740/840
8.	F124128	[1]	Hydraulic Hose - Fabricate	740/840
9.	AT172847	[1]	Tee Fitting
10.	AT214557	[1]	Fitting
11.	T77858	[5]	O-Ring	18.771 X 1.778 MM (0.739" X 0.070")
12.	AT262605	[1]	Hydraulic Hose - Fabricate
13.	38H1052	[2]	Elbow Fitting
14.	R29936	[4]	O-Ring	29.743 X 2.946 MM (1.171" X 0.116")
15.	38H1179	[1]	Adapter Fitting
16.	AT262604	[1]	Hydraulic Hose - Fabricate
18.	U12547	[2]	O-Ring
19.	AT119578	[2]	Elbow Fitting
20.	T77857	[11]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
24.	38H1174	[4]	Adapter Fitting
25.	R26906	[4]	O-Ring	19.177 X 2.464 MM (0.755" X 0.097")
26.	AT143854	[3]	Hydraulic Hose - Fabricate
27.	38H1164	[1]	Adapter Fitting
28.	AT261490	[1]	Hydraulic Hose - Fabricate
29.	AT251010	[1]	Half Clamp
30.	........	[1]	Plate	AT177207 NLA
31.	19H3704	[2]	Cap Screw	3/8" X 2-1/4"
32.	38H1004	[1]	Elbow Fitting
35.	AT262592	[1]	Hydraulic Hose - Fabricate
37.	AMT403	[1]	Fitting
38.	R26448	[2]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
39.	T77613	[3]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
40.	AT181499	[1]	Hydraulic Hose
41.	24M7239	[3]	Washer	10.700 X 21 X 2.500 MM
42.	19H2700	[2]	Cap Screw	3/8" X 4-1/2"
43.	19H3217	[1]	Cap Screw	3/8" X 1-3/4"
45.	38H1095	[1]	Elbow Fitting
46.	38H1031	[2]	Tee Fitting
47.	AT262617	[1]	Hydraulic Hose - Fabricate
48.	38H1609	[1]	Adapter Fitting	SUB FOR F123541
