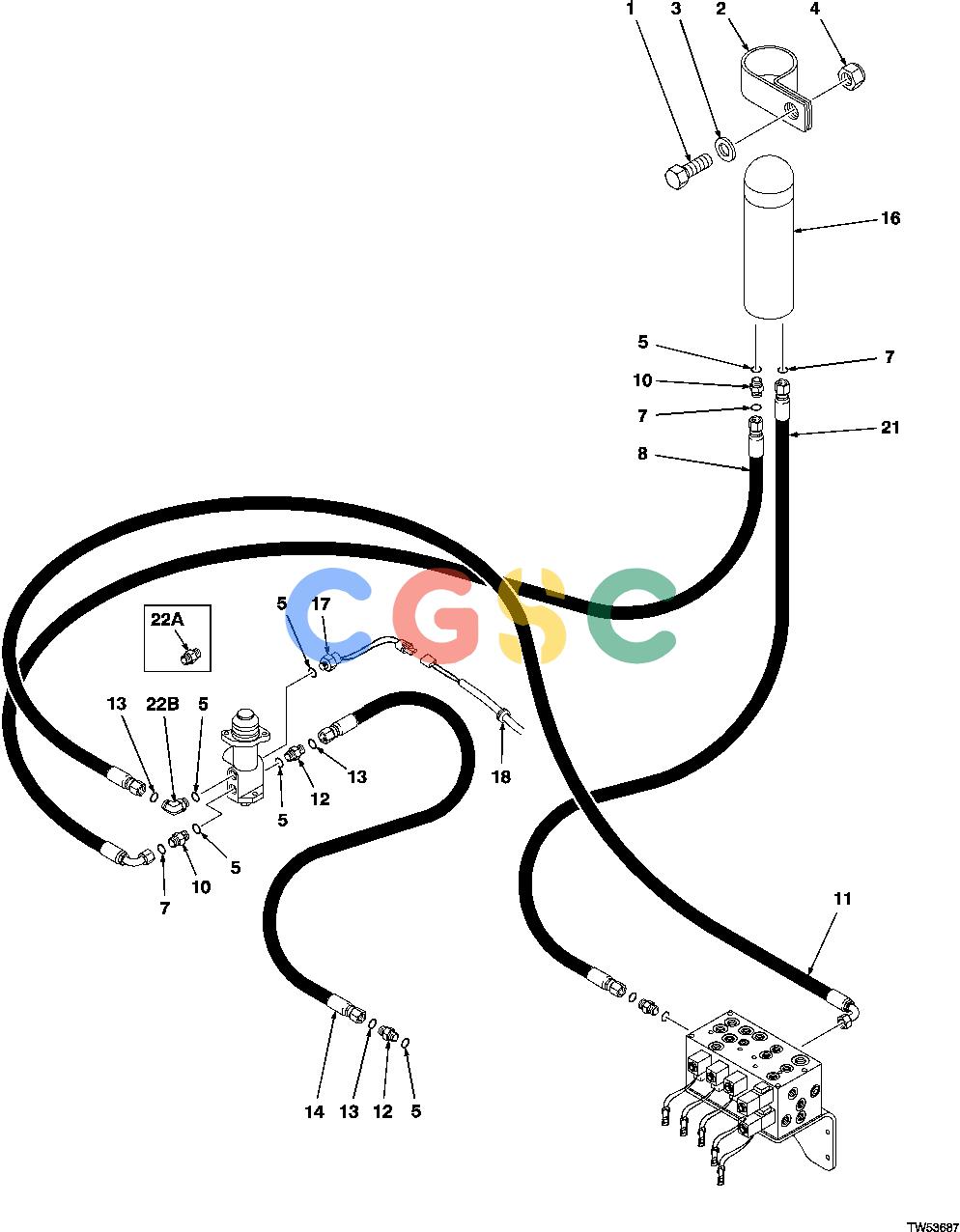

约翰迪尔零件查询1200 - AXLE Brake Valve LinesEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 984 次

Pos.	Part No	Qty	Parts name	Comments
1.	19H2633	[2]	Cap Screw	3/8" X 1-1/2"
2.	T126204	[2]	Clamp
3.	T105740	[2]	Washer	11.400 X 25.400 X 2.286 MM (0.449" X 1" X 0.090")
4.	H99923	[2]	Lock Nut	9.525 MM (3/8") (SUB FOR T11234)
5.	R26448	[6]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
7.	T77613	[3]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
8.	AT201407	[1]	Hydraulic Hose - Fabricate	(643H/843H)
8.	F123694	[1]	Hydraulic Hose - Fabricate	(643H/843H)
8.	AT201407	[1]	Hydraulic Hose - Fabricate	(740/840)
8.	F123694	[1]	Hydraulic Hose - Fabricate	740/840
10.	38H1160	[2]	Adapter Fitting
11.	AT144176	[1]	Hydraulic Hose - Fabricate	(SUB FOR AT181495)
12.	38H1168	[3]	Adapter Fitting
13.	T77814	[3]	O-Ring
14.	AT182685	[1]	Hydraulic Hose - Fabricate	(TO FRONT AXLE)
16.	AT224430	[1]	Hydraulic Accumulator
17.	F124042	[1]	Pressure Switch
18.	R41440	[1]	Grommet
21.	AT261523	[1]	Hydraulic Hose - Fabricate
22A.	38H1168	[1]	Adapter Fitting
22B.	38H1009	[1]	Elbow Fitting
