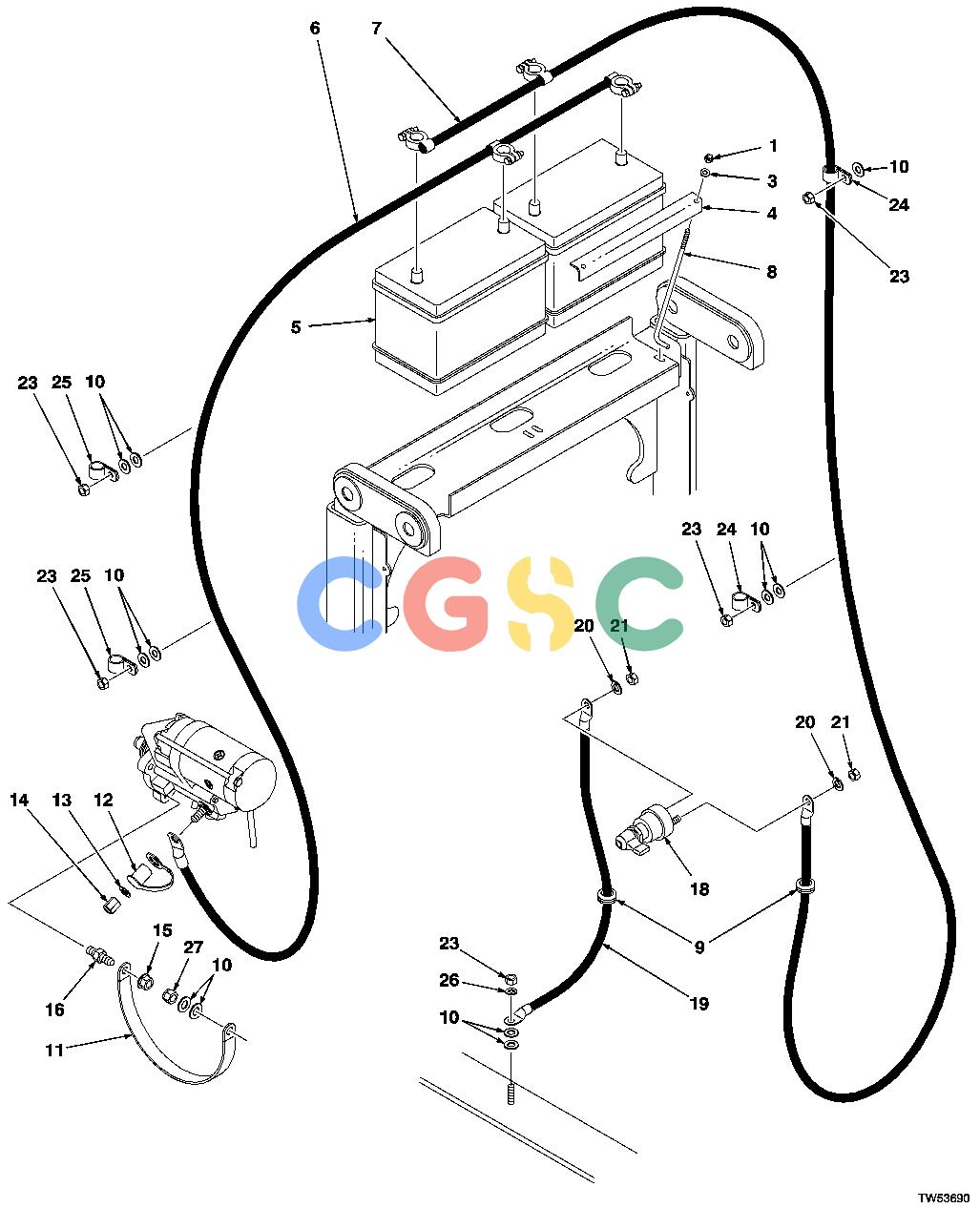

Pos.	Part No	Qty	Parts name	Comments
1.	M40333	[4]	Lock Nut	6.350 MM (1/4")
3.	24H1287	[4]	Washer	9/32" X 5/8" X 0.065"
4.	T64105	[2]	Angle
5.	TY6128	[2]	Dry Charged Battery	(SUB FOR AT132864)
6.	AT262189	[1]	Battery Cable
7.	AT262188	[1]	Cable
8.	T22571	[4]	Bolt
9.	H65107	[2]	Grommet
10.	24M7433	[12]	Washer	10.500 X 20 X 2 MM (SUB FOR 810309800)
11.	AT38449	[1]	Ground Cable
12.	T134104	[1]	Cover
13.	24M7240	[1]	Washer	13 X 25 X 3 MM
14.	T174530	[1]	Nut
15.	14M7299	[1]	Flange Nut	M12
16.	R503419	[1]	Stud
18.	AT41188	[1]	Switch	(INCLUDES 12H304 AND 14H1080)
19.	AT201503	[1]	Cable
20.	12H304	[2]	Lock Washer	3/8"
21.	14H1080	[2]	Nut	3/8"
23.	14H1076	[5]	Nut	3/8" (SUB FOR (6) 810087500)
24.	T76252	[1]	Clamp	(SUB FOR T78787, THIS APPLICATION ) (SUB FOR 810626700)643H/843H
24.	T78787	[1]	Clamp	(SUB FOR T78787, THIS APPLICATION ) (SUB FOR 810626700)740/840
25.	F004423	[2]	Hose Clamp
26.	12H304	[1]	Lock Washer	3/8"
27.	K40003	[1]	Lock Nut	(SUB FOR 810677900)
