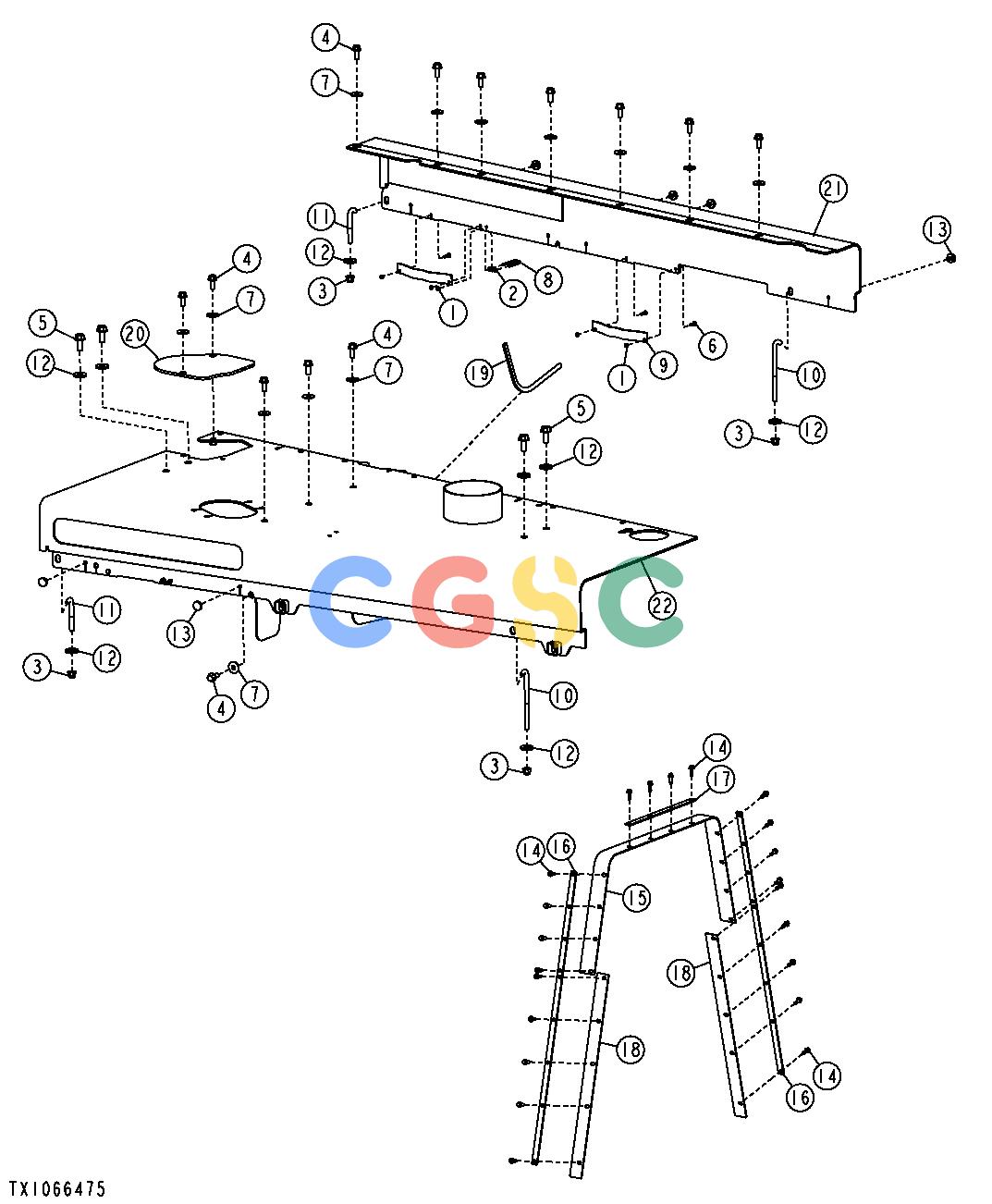

约翰迪尔零件查询1200 - AXLE HOODEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
186 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14M7265
|
[8] |
Lock Nut
|
|
| 2. |
14M7297
|
[4] |
Nut
|
|
| 3. |
14M7400
|
[4] |
Lock Nut
|
|
| 4. |
19M7785
|
[14] |
Screw
|
|
| 5. |
19M7789
|
[4] |
Screw
|
|
| 6. |
21M7271
|
[4] |
Screw
|
|
| 7. |
24M7296
|
[14] |
Washer
|
|
| 8. |
T163639
|
[2] |
U-Bolt
|
|
| 9. |
T164268
|
[3] |
Striker
|
|
| 10. |
T190545
|
[2] |
Hook Bolt
|
|
| 11. |
T217268
|
[2] |
Hook Bolt
|
|
| 12. |
T29342
|
[8] |
Washer
|
|
| 13. |
T50926
|
[6] |
Bumper
|
|
| 14. |
37M7131
|
[22] |
Screw
|
|
| 15. |
T162337
|
[1] |
Seal
|
|
| 16. |
T183478
|
[2] |
Strip
|
|
| 17. |
T183479
|
[1] |
Strap
|
|
| 18. |
T183480
|
[2] |
Isolator
|
|
| 19. |
T58056
|
[1] |
Isolator
|
|
| 20. |
T217069
|
[1] |
Cover
|
|
| 21. |
AT314931
|
[1] |
Hood
|
|
| 22. |
AT314933
|
[1] |
Hood
|
|
