约翰迪尔零件查询1400 - AXLE STEERING VALVE, STEERING WHEEL AND STEERING COLUMNEPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询1400 - AXLE STEERING VALVE, STEERING WHEEL AND STEERING COLUMNEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 797 次

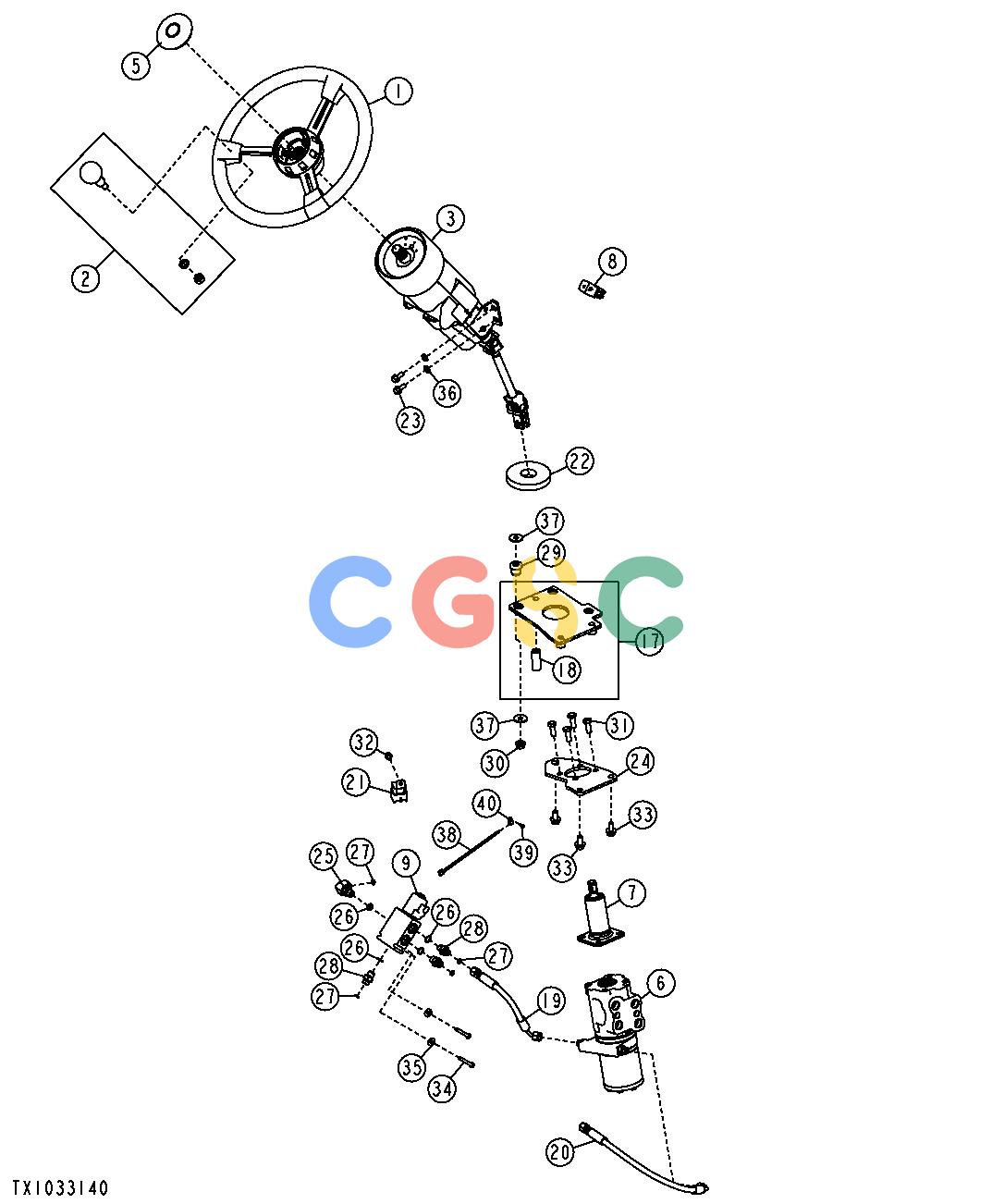

Pos.	Part No	Qty	Parts name	Comments
1.	AT192654	[1]	Wheel Kit	(STEERING WHEEL & HORN BUTTON)
2.	AT175650	[1]	Knob	(SPINNER KNOB)
3.	AT193403	[1]	Steering Column
3.	AT175692	[1]	Steering Column Kit	(HORN BRUSH)
3.	AT175693	[1]	Rod Kit	(ROD AND PAWL)
3.	AT175694	[1]	Lever Kit	(TILT LEVER)
3.	AT175695	[1]	Stop Kit	(TILT STOP)
3.	AT175696	[1]	Cover Kit	(UPPER AND LOWER COVER)
3.	AT175697	[1]	Steering Column Kit	(GAP HIDER)
3.	AT175698	[1]	Bolt Kit	(TILT BOLT)
3.	AT175699	[1]	Kit	(SERVICE ASSEMBLY)
4.	T28585	[1]	Electrical Connector Assy
5.	AT307185	[1]	Cap
6.	AT353988	[1]	Control Valve	(SUB FOR AT325855)(DUAL STEER)
6.	AT353993	[1]	Control Valve	(SUB FOR AT330804)(SINGLE STEER)
6.	AT330806	[1]	Seal Kit
7.	AT326326	[1]	Steering Column	(DUAL STEER)
7.	AT188837	[1]	Steering Column	(TILT-TELESCOPE STEER)
8.	AT327022	[1]	Toggle/Rocker Switch
9.	AT354279	[1]	Solenoid Hydraulic Valve	(SUB FOR AT329745)
9.	AT354279	[1]	Solenoid Hydraulic Valve
9.	AT354893	[1]	Seal Kit
9.	AT354894	[1]	Solenoid Valve Coil
17.	AT329771	[1]	Support
18.	T122329	[1]	Bushing
19.	AT331897	[1]	Hydraulic Hose - Fabricate	9/16" X 241 MM (9-1/2") X 9/16"
20.	AT331898	[1]	Hydraulic Hose - Fabricate	9/16" X 419 MM (16-1/2") X 9/16"
21.	AT75769	[1]	Relay
22.	T131980	[1]	Isolator
23.	T164946	[4]	Screw	M8 X 20
24.	T223190	[1]	Plate	(DUAL STEER)
24.	T223283	[1]	Plate	(TILT-TELESCOPE STEER)
25.	38H1009	[2]	Elbow Fitting
26.	R26448	[2]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
27.	T77814	[2]	O-Ring	7.650 X 1.780 MM (0.301" X 0.070")
28.	38H1168	[1]	Adapter Fitting
29.	AT116162	[3]	Isolator
30.	14M7296	[3]	Flange Nut	M10
31.	19M7402	[4]	Cap Screw	M10 X 25
32.	19M7774	[1]	Screw	M6 X 12
33.	19M7784	[3]	Screw	M10 X 20
34.	19M8538	[2]	Cap Screw	M6 X 45
35.	24M7139	[2]	Washer	6.400 X 18 X 1.600 MM
36.	24M7238	[4]	Washer	8.700 X 17 X 2 MM
37.	24M7296	[6]	Washer	10.500 X 30 X 2.500 MM
38.	R44302	[1]	Tie Band
39.	T185769	[1]	Screw
40.	T187394	[1]	Anchor
