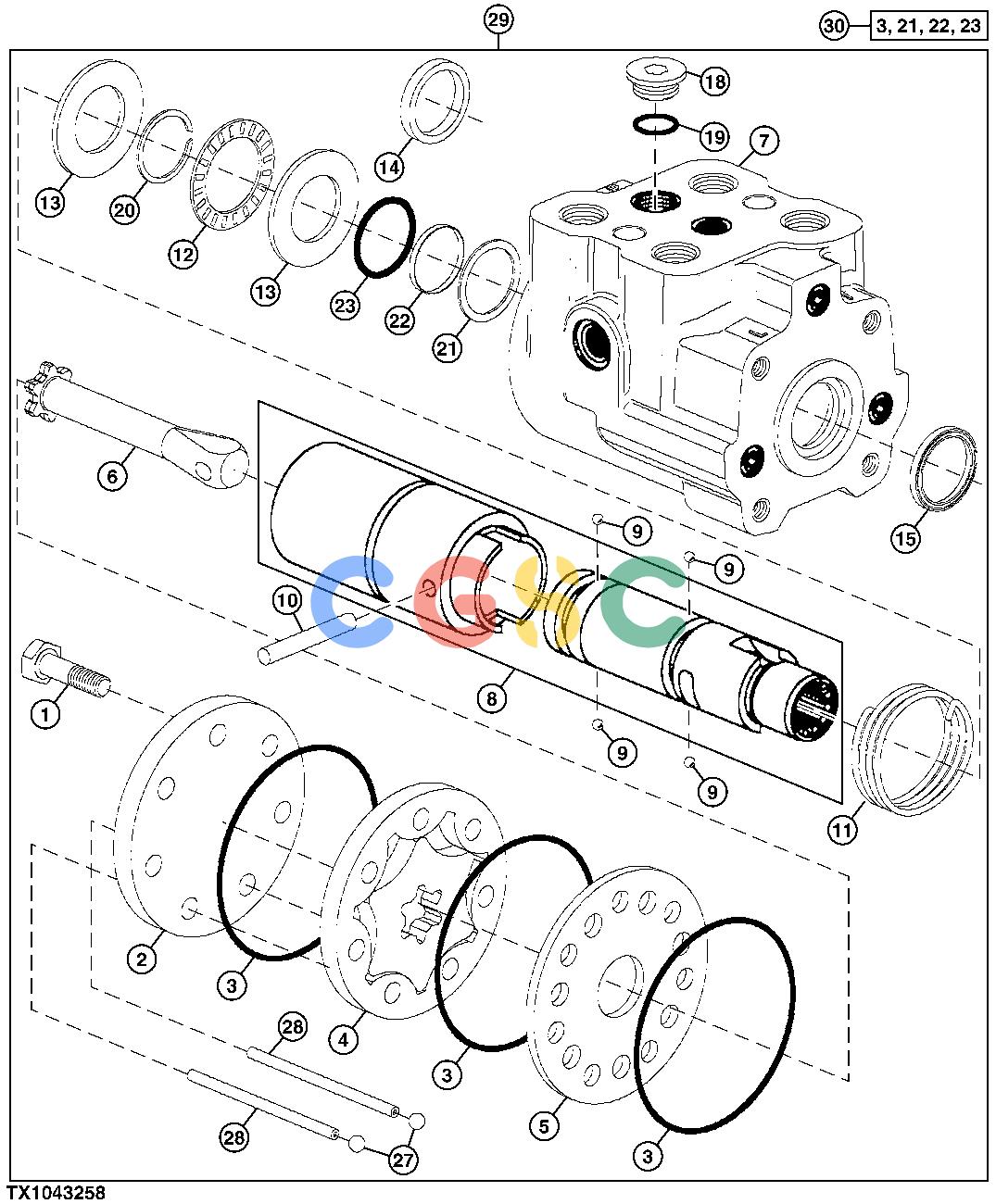

约翰迪尔零件查询1400 - AXLE STEERING METERING PUMP COMPONENTSEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
871 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
........
|
[7] |
Cap Screw
|
|
| 2. |
F434824
|
[1] |
Cap
|
|
| 3. |
F434825
|
[3] |
O-Ring
|
|
| 4. |
........
|
[1] |
Rotator
|
|
| 5. |
F434827
|
[1] |
Plate
|
|
| 6. |
........
|
[1] |
Drive
|
|
| 7. |
........
|
[1] |
Housing
|
|
| 8. |
........
|
[1] |
Sleeve
|
|
| 9. |
T146624
|
[1] |
Ball
|
|
| 10. |
AT181445
|
[1] |
Pin
|
|
| 11. |
AT181446
|
[1] |
Spring
|
|
| 12. |
841466200
|
[1] |
Needle Bearing
|
|
| 13. |
F434831
|
[2] |
Bearing Race
|
|
| 14. |
AT175622
|
[1] |
Seal
|
|
| 15. |
........
|
[1] |
Dust Shield
|
|
| 18. |
........
|
[1] |
Plug
|
|
| 19. |
R26375
|
[1] |
O-Ring
|
|
| 20. |
F434833
|
[1] |
Ring
|
|
| 21. |
58009
|
[1] |
Lock
|
|
| 22. |
T101545
|
[1] |
Seal
|
|
| 23. |
F434832
|
[1] |
O-Ring
|
|
| 27. |
0621334870
|
[2] |
Ball
|
|
| 28. |
F434835
|
[2] |
Pin Fastener
|
|
| 29. |
AT353988
|
[1] |
Valve
|
|
| 29. |
AT353993
|
[1] |
Valve
|
|
| 30. |
F434836
|
[1] |
Kit
|
|
