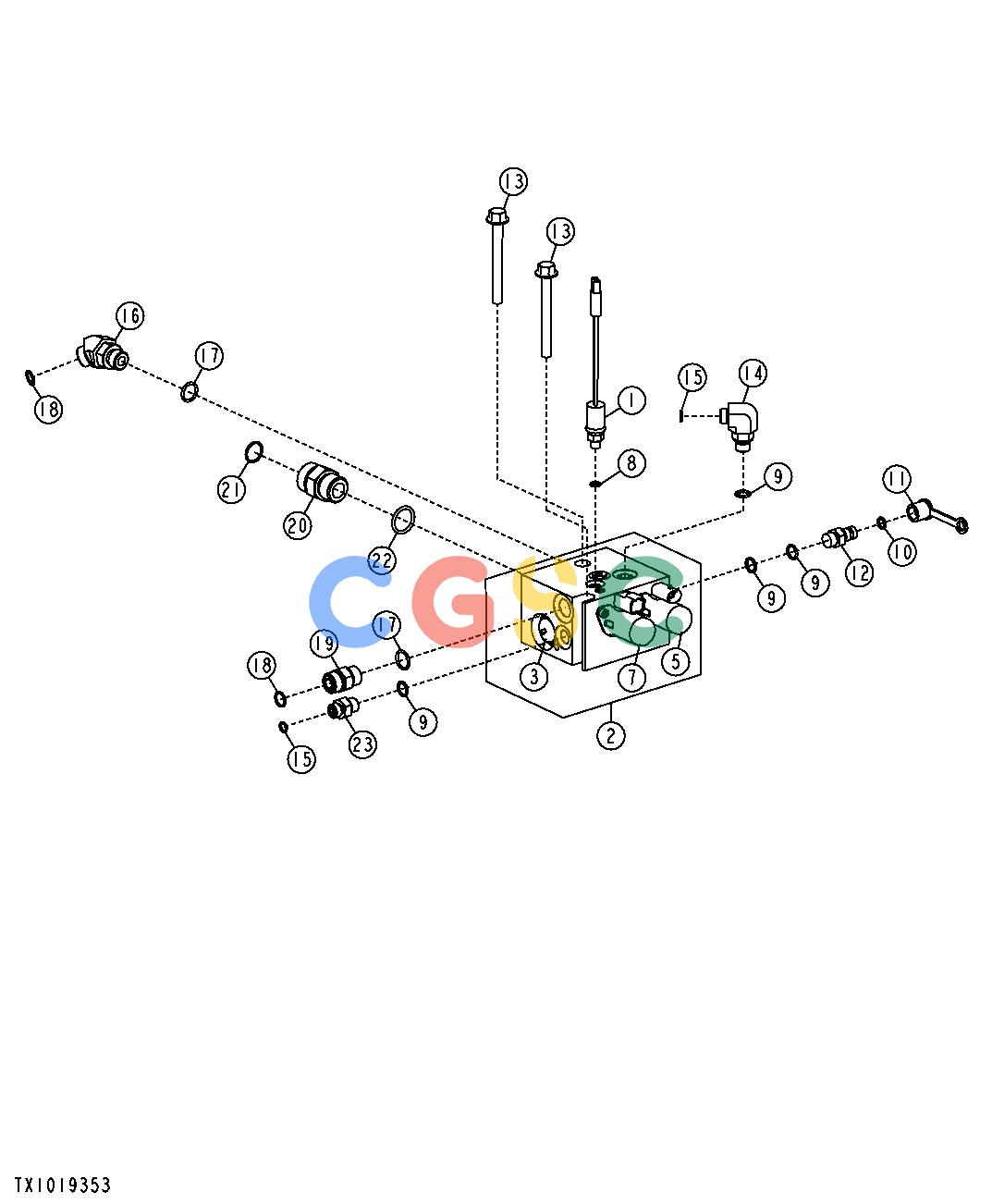

Pos.	Part No	Qty	Parts name	Comments
1.	AT356622	[2]	Switch	(SUB FOR AT162096)
2.	AT337291	[1]	Valve
3.	AT323128	[1]	Check Valve
3.	AT314326	[1]	Seal Kit
5.	AT338325	[1]	Flow Control Hyd. Valve
5.	AT224873	[1]	Seal Kit
7.	KV25678	[1]	Solenoid Valve	(SUB FOR AT338326)
8.	R26287	[2]	O-Ring	7.645 X 1.626 MM (0.301" X 0.064")
9.	R26448	[8]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
10.	........	[2]	O-Ring	(SUB FOR R28782)(NA)
11.	R77175	[2]	Cover
12.	AH125760	[2]	Hyd. Quick-Connect Coupler
13.	19M7811	[4]	Screw	M10 X 90
14.	38H1009	[2]	Elbow Fitting
15.	T77814	[4]	O-Ring	7.650 X 1.780 MM (0.301" X 0.070")
16.	38H1046	[2]	Elbow Fitting
17.	R26375	[4]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
18.	T77857	[4]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
19.	38H1161	[2]	Adapter Fitting
20.	38H1163	[2]	Adapter Fitting
21.	T77858	[2]	O-Ring	18.771 X 1.778 MM (0.739" X 0.070")
22.	U12547	[2]	O-Ring	23.470 X 2.946 MM (0.924" X 0.116")
23.	38H1168	[2]	Adapter Fitting
