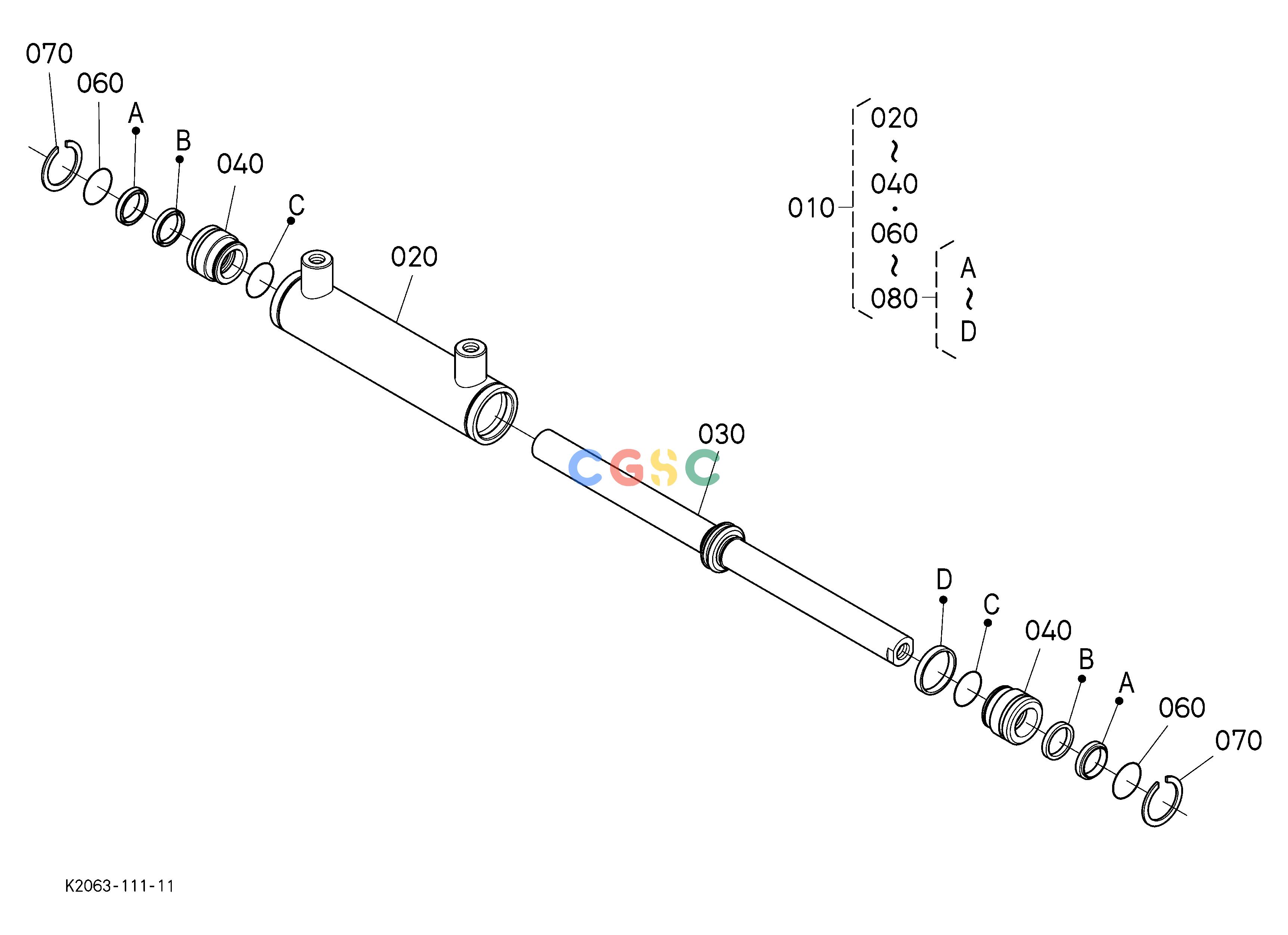

久保田零件查询H12202 STEERING CYLINDER [COMPONENT PARTS] ## S.No.>=53175 S.No.;>=53175 STEERINGEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
359 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K206316500
|
[1] |
ASSY CYLINDER,STRG.
|
7.0620(lbs); 3.210
|
| 020. |
K206316510
|
[1] |
ASSY CYLINDER,SUB
|
3.0800(lbs); 1.400
|
| 030. |
K206316520
|
[1] |
ASSY ROD,SUB
|
3.4100(lbs); 1.550
|
| 040. |
K206316530
|
[2] |
HEAD
|
0.2200(lbs); 0.100
|
| 060. |
K206316580
|
[2] |
RING
|
0.0176(lbs); 0.008
|
| 070. |
K206316590
|
[2] |
RING,SNAP
|
0.0176(lbs); 0.008
|
| 080. |
K206391650
|
[1] |
SEAL KIT
|
0.0484(lbs); 0.022
|
