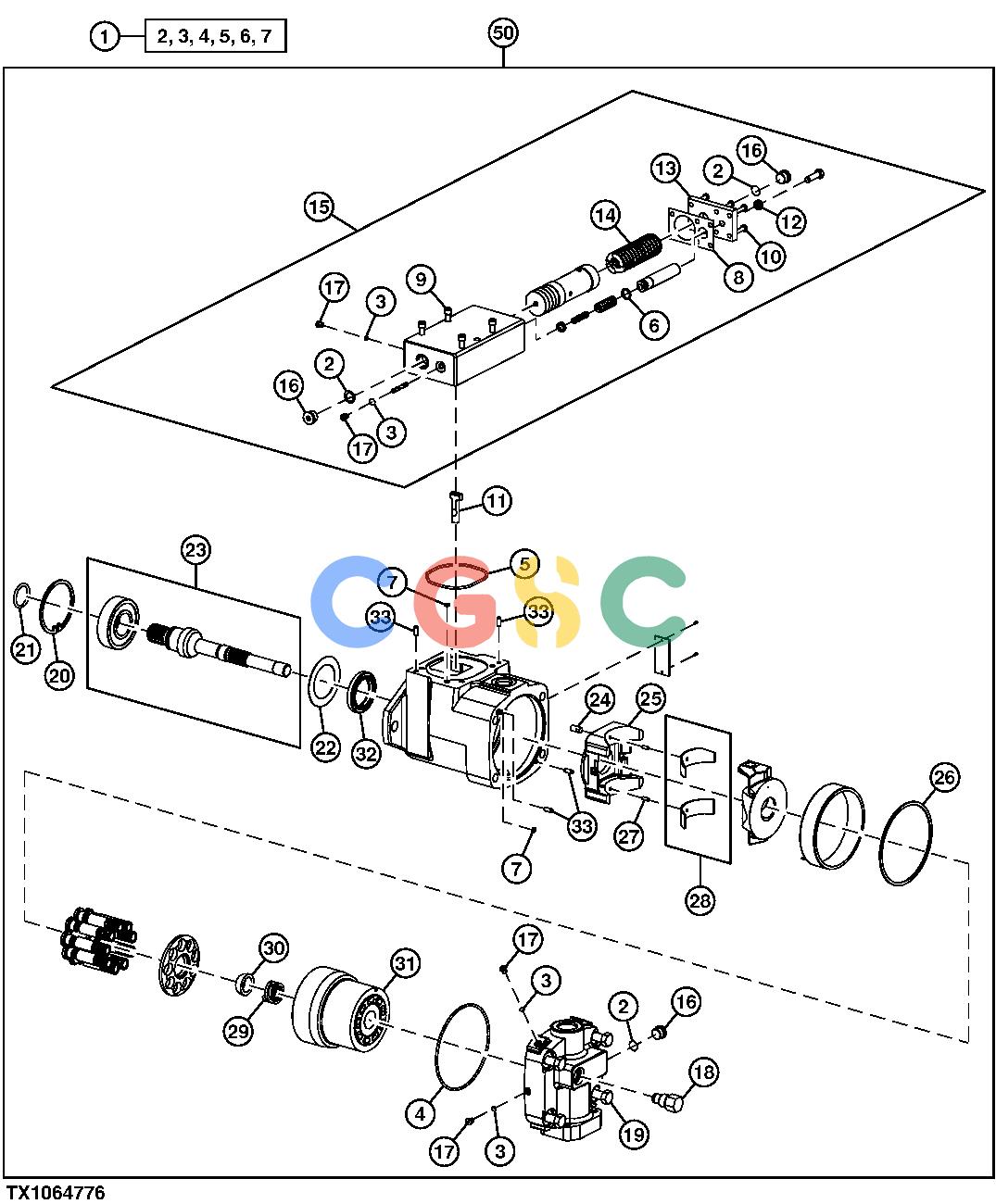

约翰迪尔零件查询1400 - AXLE MAIN HYDRAULIC PUMP COMPONENTS (38GPM)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
686 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT157278
|
[1] |
Kit
|
|
| 1. |
AT354754
|
[1] |
Seal Kit
|
|
| 2. |
843120000
|
[1] |
O-Ring
|
|
| 3. |
843120200
|
[1] |
O-Ring
|
|
| 4. |
........
|
[1] |
O-Ring
|
|
| 5. |
........
|
[1] |
O-Ring
|
|
| 6. |
........
|
[1] |
O-Ring
|
|
| 7. |
........
|
[1] |
O-Ring
|
|
| 8. |
843123100
|
[1] |
Gasket
|
|
| 9. |
19H1907
|
[4] |
Cap Screw
|
|
| 10. |
........
|
[6] |
Screw
|
|
| 11. |
843123800
|
[1] |
Pin
|
|
| 12. |
843118600
|
[1] |
Nut
|
|
| 13. |
843123700
|
[1] |
Cover
|
|
| 14. |
AT193240
|
[1] |
Spring
|
|
| 15. |
AT331092
|
[1] |
Hydr./Pilot Control Valve
|
|
| 15. |
AT354752
|
[1] |
Control Valve
|
|
| 16. |
843118800
|
[1] |
Plug
|
|
| 17. |
843118000
|
[1] |
Plug
|
|
| 18. |
AT305030
|
[1] |
Pressure Relief Valve
|
|
| 18. |
AT369613
|
[1] |
Plug
|
|
| 19. |
19H2358
|
[1] |
Cap Screw
|
|
| 20. |
843122700
|
[1] |
Ring
|
|
| 21. |
843121000
|
[1] |
Ring
|
|
| 22. |
843121200
|
[1] |
Retainer
|
|
| 23. |
AT146940
|
[1] |
Shaft
|
|
| 24. |
843122400
|
[1] |
Pin Fastener
|
|
| 25. |
843121400
|
[1] |
Junction Block
|
|
| 26. |
843121900
|
[1] |
Ring
|
|
| 27. |
843116800
|
[1] |
Pin
|
|
| 28. |
AT168623
|
[1] |
Bearing Kit
|
|
| 29. |
F431917
|
[1] |
Spring
|
|
| 30. |
........
|
[1] |
Ball
|
|
| 31. |
F434352
|
[1] |
Barrel
|
|
| 32. |
AT157279
|
[1] |
Seal
|
|
| 33. |
843117700
|
[1] |
Pin Fastener
|
|
| 50. |
AT195248
|
[1] |
Hydraulic Pump
|
|
| 50. |
AT353936
|
[1] |
Hydraulic Pump
|
|
