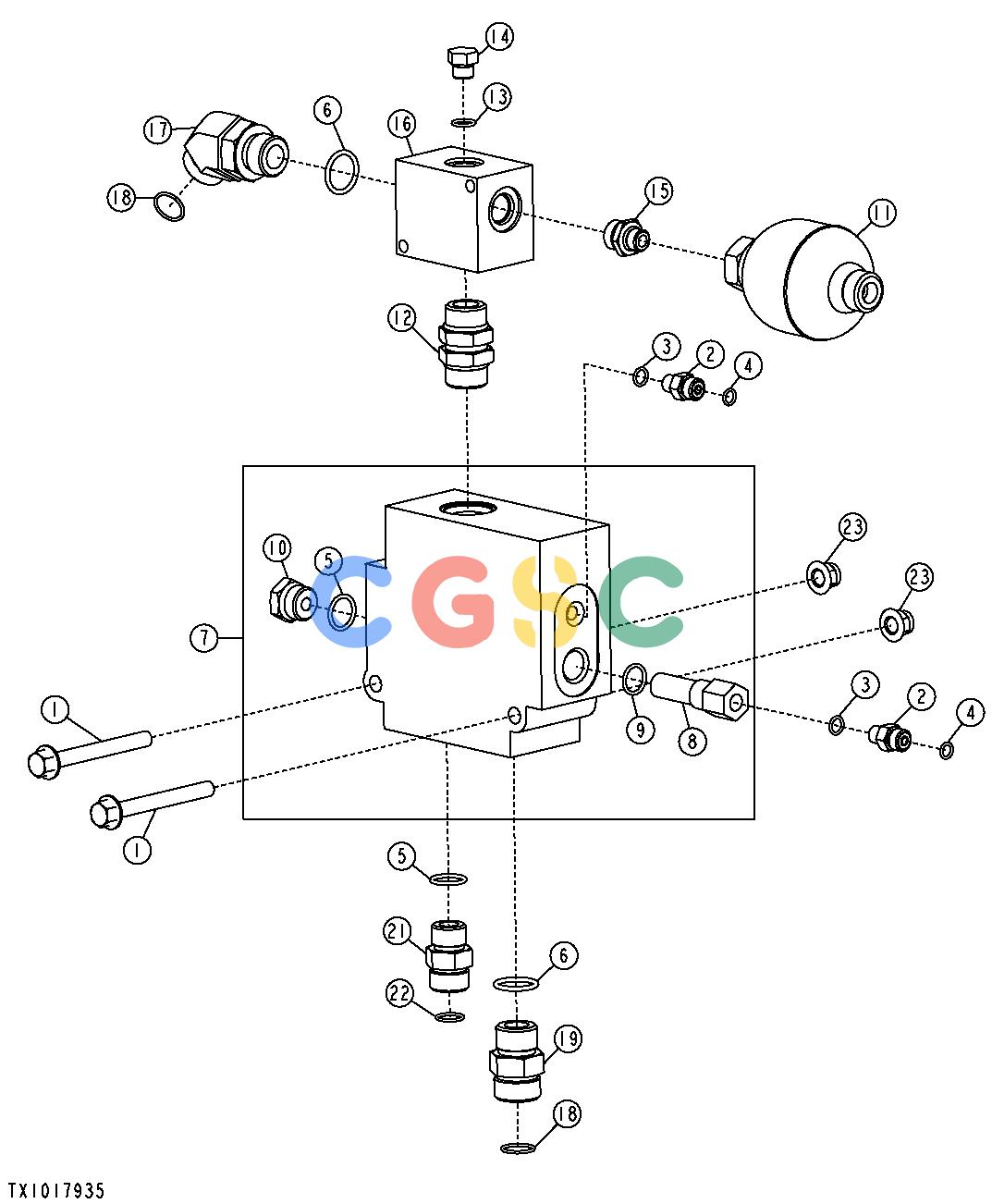

约翰迪尔零件查询1400 - AXLE PRIORITY VALVE (TORQUE CONVERTER) (SN -615174)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 830 次

Pos.	Part No	Qty	Parts name	Comments
1.	19M7811	[2]	Screw	M10 X 90
2.	38H1159	[1]	Adapter Fitting
3.	R28782	[1]	O-Ring	8.915 X 1.829 MM (0.351" X 0.072")
4.	T77814	[1]	O-Ring	7.650 X 1.780 MM (0.301" X 0.070")
5.	R26906	[1]	O-Ring	19.177 X 2.464 MM (0.755" X 0.097")
6.	U12547	[1]	O-Ring	23.470 X 2.946 MM (0.924" X 0.116")
7.	AT348935	[1]	Flow Control Hyd. Valve
7.	AT348935	[1]	Flow Control Hyd. Valve	(SUB FOR AT160595)
8.	AT138198	[1]	Pressure Relief Valve
9.	R26375	[1]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
10.	R27474	[1]	Drain Plug
11.	AT337104	[1]	Hydraulic Accumulator
12.	AT337286	[1]	Adapter Fitting
13.	R26448	[1]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
14.	R27218	[1]	Fitting Plug
15.	RE69197	[1]	Fitting
16.	T227904	[1]	Manual Hydraulic Valve
17.	38H1048	[1]	Elbow Fitting
18.	T77858	[1]	O-Ring	18.771 X 1.778 MM (0.739" X 0.070")
19.	38H1163	[1]	Adapter Fitting
21.	38H1162	[1]	Adapter Fitting
22.	T77932	[1]	O-Ring	15.596 X 1.778 MM (0.614" X 0.070")
23.	14M7400	[2]	Lock Nut	M10
