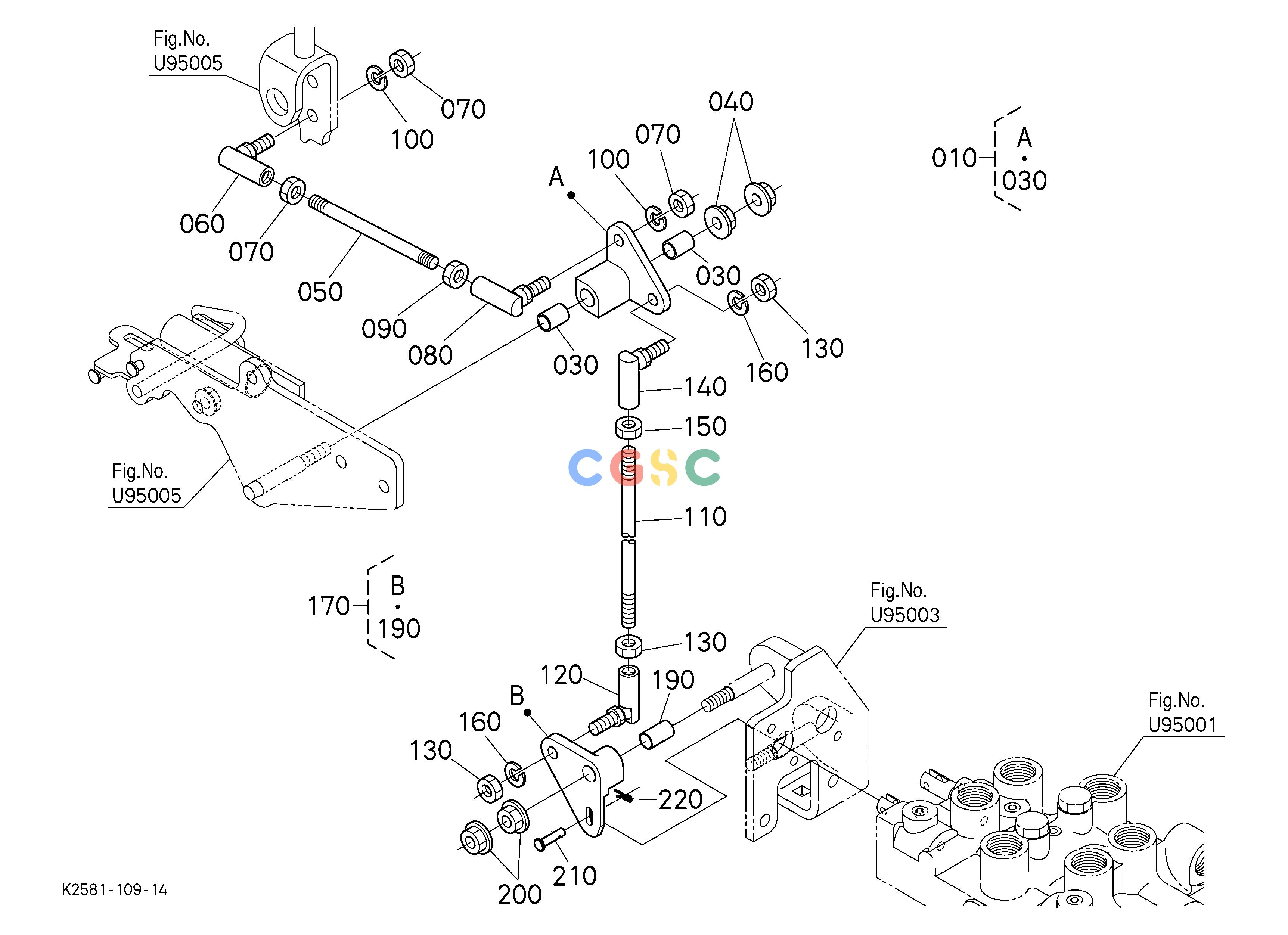

久保田零件查询U95004 FRONT CONTROL VALVE KIT (ROD) 2 [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
790 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
7J61262870
|
[1] |
ASSY ARM,SPOOL
|
0.0000(lbs); 0.000
|
| 030. |
7J61262140
|
[2] |
BUSH,DU
|
0.0000(lbs); 0.000
|
| 040. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 050. |
7J61262740
|
[1] |
ROD
|
0.0000(lbs); 0.000
|
| 060. |
K112242080
|
[1] |
ROD END
|
0.0660(lbs); 0.030
|
| 070. |
7559931022
|
[3] |
HEX.NUT(5/16-24UNF)
|
0.0330(lbs); 0.015
|
| 080. |
K321142080
|
[1] |
ROD END,LH
|
0.0814(lbs); 0.037
|
| 090. |
K321142380
|
[1] |
NUT(5/16-24UNF-LH)
|
0.0132(lbs); 0.006
|
| 090. |
K321142382
|
[1] |
NUT(5/16-24UNF-LH)
|
0.0132(lbs); 0.006
|
| 100. |
0451260080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 110. |
7J61262750
|
[1] |
ROD
|
0.0000(lbs); 0.000
|
| 120. |
K112242080
|
[1] |
ROD END
|
0.0660(lbs); 0.030
|
| 130. |
7559931022
|
[3] |
HEX.NUT(5/16-24UNF)
|
0.0330(lbs); 0.015
|
| 140. |
K321142080
|
[1] |
ROD END,LH
|
0.0814(lbs); 0.037
|
| 150. |
K321142380
|
[1] |
NUT(5/16-24UNF-LH)
|
0.0132(lbs); 0.006
|
| 150. |
K321142382
|
[1] |
NUT(5/16-24UNF-LH)
|
0.0132(lbs); 0.006
|
| 160. |
0451260080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 170. |
7J61262860
|
[1] |
ASSY ARM,SPOOL
|
0.0000(lbs); 0.000
|
| 190. |
7J61262150
|
[1] |
BUSH,DU
|
0.0000(lbs); 0.000
|
| 200. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 210. |
7J61262190
|
[1] |
PIN
|
0.0000(lbs); 0.000
|
| 220. |
0552560500
|
[1] |
PIN,SNAP
|
0.0022(lbs); 0.001
|
