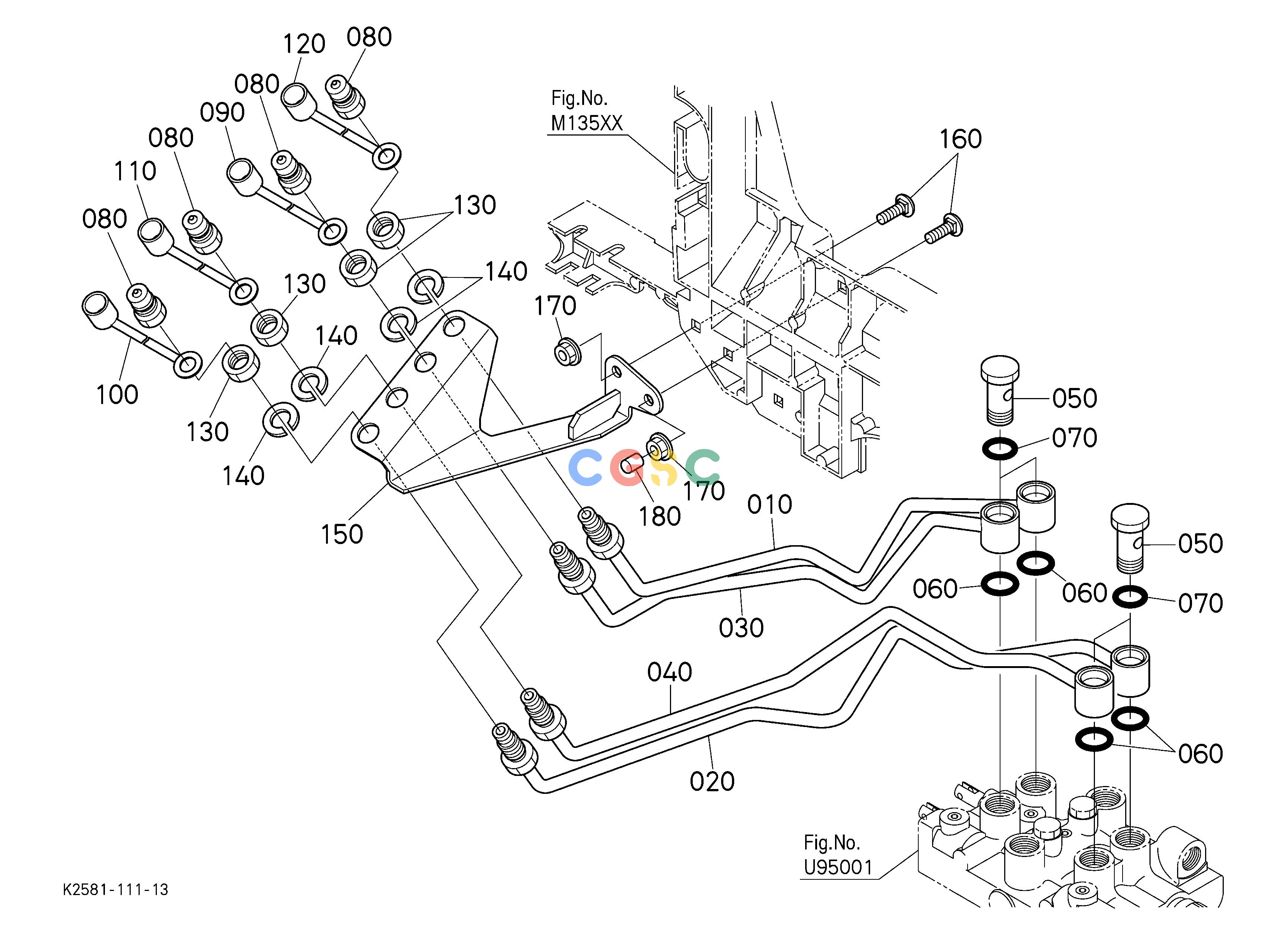

久保田零件查询U95006 FRONT CONTROL VALVE KIT (OIL LINE) 1 [OPTION] OPTIONEPC Kubota online_久保田Kubota_工程机械

久保田零件查询U95006 FRONT CONTROL VALVE KIT (OIL LINE) 1 [OPTION] OPTIONEPC Kubota online

广数供应链运营团队, 15 02月, 2025，浏览： 889 次

Pos.	Part No	Qty	Parts name	Comments
010.	7J61268710	[1]	PIPE	0.0000(lbs); 0.000
020.	7J61268720	[1]	PIPE	0.0000(lbs); 0.000
030.	7J61268730	[1]	PIPE	0.0000(lbs); 0.000
040.	7J61268740	[1]	PIPE	0.0000(lbs); 0.000
050.	7553861320	[4]	BOLT,JOINT	; <=55003 0.2090(lbs); 0.095
050.	7J61261320	[4]	BOLT	; >=55004 0.0000(lbs); 0.000
060.	0481700210	[4]	O RING	0.0022(lbs); 0.001
070.	0481600160	[4]	O RING	Use this for replacement 0.0066(lbs); 0.003
080.	7553666220	[4]	NIPPLE	(72N4-4F); <=50696 0.0880(lbs); 0.040
080.	7J61266220	[4]	NIPPLE	(72N4-4F),ORDER BY REF.No.080 NEW PART.; >=50697 0.0000(lbs); 0.000
080.	7J61266222	[4]	NIPPLE	(72N4-4F),ORDER BY REF.No.080 NEW PART.; >=51675 0.0000(lbs); 0.000
080.	K258166220	[4]	NIPPLE	(72N4-4F); >=51929 0.0792(lbs); 0.036
090.	7J24566410	[1]	CAP,DUST	(72PDC-4B) 0.0220(lbs); 0.010
100.	7J24566420	[1]	CAP,DUST	(72PDC-4YY) 0.0374(lbs); 0.017
110.	7J24566430	[1]	CAP,DUST	(72PDC-4R) 0.0110(lbs); 0.005
120.	7J24566440	[1]	CAP,DUST	(72PDC-4W) 0.0352(lbs); 0.016
130.	0217450160	[4]	HEX.NUT	0.0484(lbs); 0.022
140.	0451260160	[4]	WASHER, SPRING	0.0220(lbs); 0.010
150.	7J61268613	[1]	STAY,PIPE	0.0000(lbs); 0.000
160.	K112291330	[2]	BOLT(SHORT SQ. NECK,M8 1.25)	; <=54001 0.0000(lbs); 0.000
160.	K112291332	[2]	BOLT(SHORT SQ. NECK,	; >=54002 0.0330(lbs); 0.015
170.	0275150080	[2]	NUT,FLANGE	0.0132(lbs); 0.006
180.	7J61268670	[1]	COVER,BOLT	0.0000(lbs); 0.000
