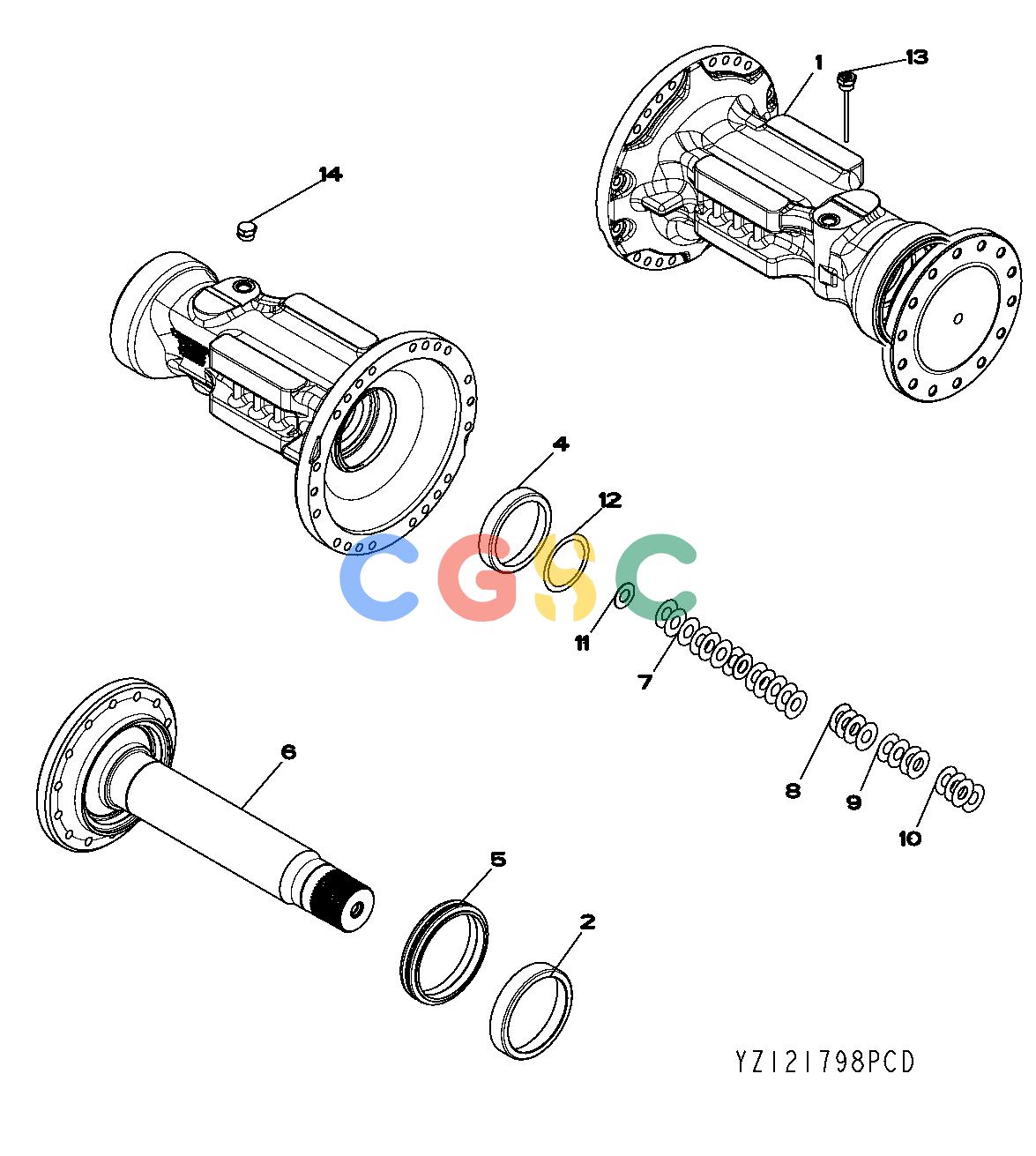

约翰迪尔零件查询643K - FELLER BUNCHER YZ121798 AXLE HOUSING AND SHAFT TMIV, 1400 SeriesEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
129 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
YZ121517
|
[2] |
Housing
|
|
| 2. |
YZ121530
|
[2] |
Bearing Cup
|
|
| 3. |
YZ121529
|
[2] |
Bearing Cone
|
|
| 4. |
JD8254
|
[2] |
Bearing Cup
|
|
| 5. |
YZ120453
|
[2] |
Seal
|
|
| 6. |
YZ121739
|
[2] |
Half Axle
|
|
| 7. |
R59439
|
[12] |
Shim
|
|
| 8. |
R59440
|
[4] |
Shim
|
|
| 9. |
R61461
|
[4] |
Shim
|
|
| 10. |
R79989
|
[4] |
Shim
|
|
| 11. |
F2380R
|
[2] |
Washer
|
|
| 12. |
R52389
|
[2] |
Shim
|
|
| 13. |
YZ121220
|
[1] |
Dipstick
|
|
| 14. |
RE58664
|
[1] |
Fitting
|
|
| |
R27175
|
[1] |
|
|
| 14. |
R27175
|
[1] |
Drain Plug
|
|
| |
F3171R
|
[1] |
O-Ring
|
|
| 15. |
R232685
|
[2] |
Bearing Cone
|
|
