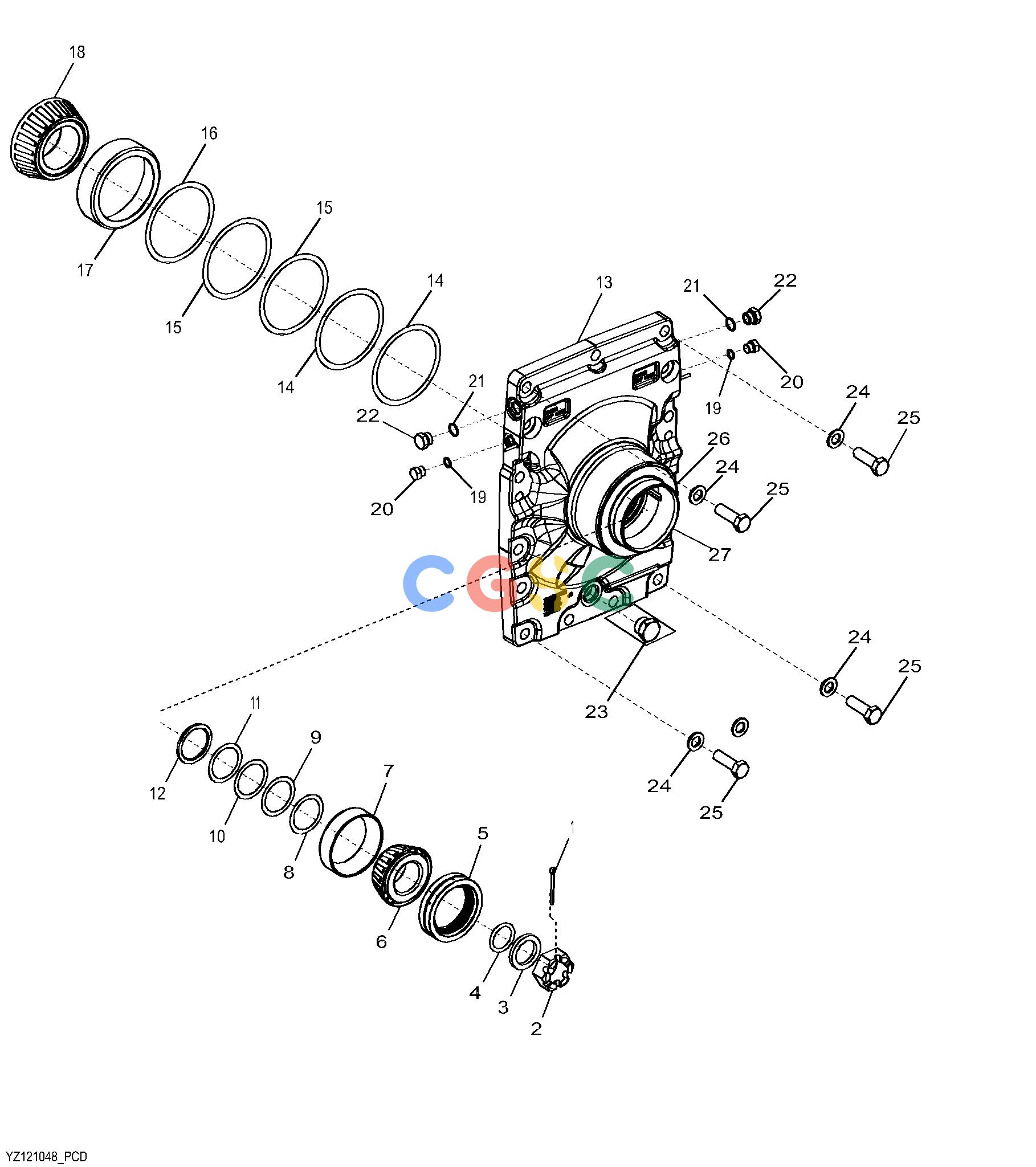

约翰迪尔零件查询643K - FELLER BUNCHER YZ121048 Std Input Housing Osc(1400) Front/Heavy Extreme Duty/SwedaEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
389 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
11H222
|
[1] |
Cotter Pin
|
|
| 2. |
R48776
|
[1] |
Nut
|
|
| 3. |
YZ120167
|
[1] |
Washer
|
|
| 4. |
A4540R
|
[1] |
O-Ring
|
|
| 5. |
YZ121724
|
[1] |
Seal
|
|
| 6. |
YZ122369
|
[1] |
Bearing Cone
|
|
| 7. |
YZ122236
|
[1] |
Bearing Cup
|
|
| 8. |
R51196
|
[1] |
Shim
|
|
| 9. |
R51197
|
[1] |
Shim
|
|
| 10. |
R51198
|
[1] |
Shim
|
|
| 11. |
R51199
|
[1] |
Shim
|
|
| 12. |
R56308
|
[1] |
Spacer
|
|
| 13. |
YZ123024
|
[1] |
Cover
|
|
| 14. |
R35365
|
[2] |
Shim
|
|
| 15. |
R35366
|
[2] |
Shim
|
|
| 16. |
R35367
|
[1] |
Shim
|
|
| 17. |
YZ122372
|
[1] |
Bearing Cup
|
|
| 18. |
YZ122252
|
[1] |
Bearing Cone
|
|
| 19. |
R26448
|
[2] |
O-Ring
|
|
| 20. |
R27218
|
[2] |
Fitting Plug
|
|
| 21. |
R26375
|
[2] |
O-Ring
|
|
| 22. |
R39112
|
[2] |
Fitting
|
|
| 23. |
RE58664
|
[1] |
Fitting
|
|
| 24. |
R135543
|
[15] |
Washer
|
|
| 25. |
19M7409
|
[15] |
Cap Screw
|
|
| 26. |
F3171R
|
[1] |
O-Ring
|
|
